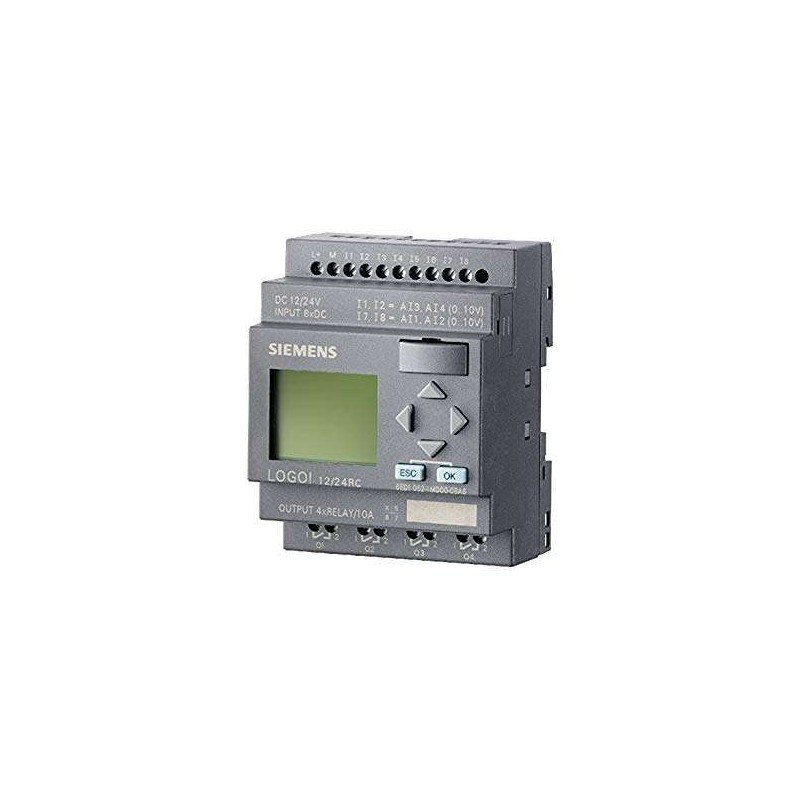

Siemens LOGO! 24RC Logic Module

Series#: Siemens

Product Details

Model: 6ED1052-1MD00-0BA6 – Siemens LOGO! 24RC Logic Module, a compact and versatile controller for basic automation tasks.
8 digital inputs (DI) and 4 relay outputs (DO), providing reliable control for motors, valves, and lighting systems.
Universal power supply (UC) 24V AC/DC, ensuring flexible integration into diverse industrial power environments.
200 program blocks of internal memory, supporting simple to moderately complex control logic sequences.
Modular expandability allows for adding extra I/O or function modules, scaling your system as needed.
Built-in display interface for real-time monitoring of status, fault messages, and parameter adjustments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Siemens 6ED1052-1MD00-0BA6 LOGO! 24RC logic module is a fundamental building block for industrial automation, offering a blend of simplicity and robust performance. Designed for applications ranging from lighting control to small machinery sequencing, this module integrates 8 digital inputs and 4 relay outputs, all powered by a universal 24V AC/DC supply. With 200 program blocks of onboard memory, it can handle everything from basic on/off logic to more complex timed sequences, while its modular expansion capability allows for future system growth. Whether you are retrofitting an older panel or building a new control system, the 6ED1052-1MD00-0BA6 delivers reliable, compact control.

Specification	Details
Product Type	Logic Control Module
Model Number	6ED1052-1MD00-0BA6
Series	Siemens LOGO! 24RC
Supply Voltage	UC 24V (24V AC / 24V DC)
Digital Inputs	8 (DI)
Digital Outputs	4 Relay (DO)
Program Memory	200 Program Blocks
Display	Basic Display for Status and Parameter Setting
Expansion Capability	Modular Expansion for Additional I/O and Function Modules
Operating Temperature	0°C to +55°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Protection Class	IP20
Weight	Approx. 0.15 kg
Dimensions (W x H x D)	72 mm x 90 mm x 55 mm
Programming Software	LOGO! Soft Comfort (V8 or higher)
Standards	IEC 61131, UL, CE
