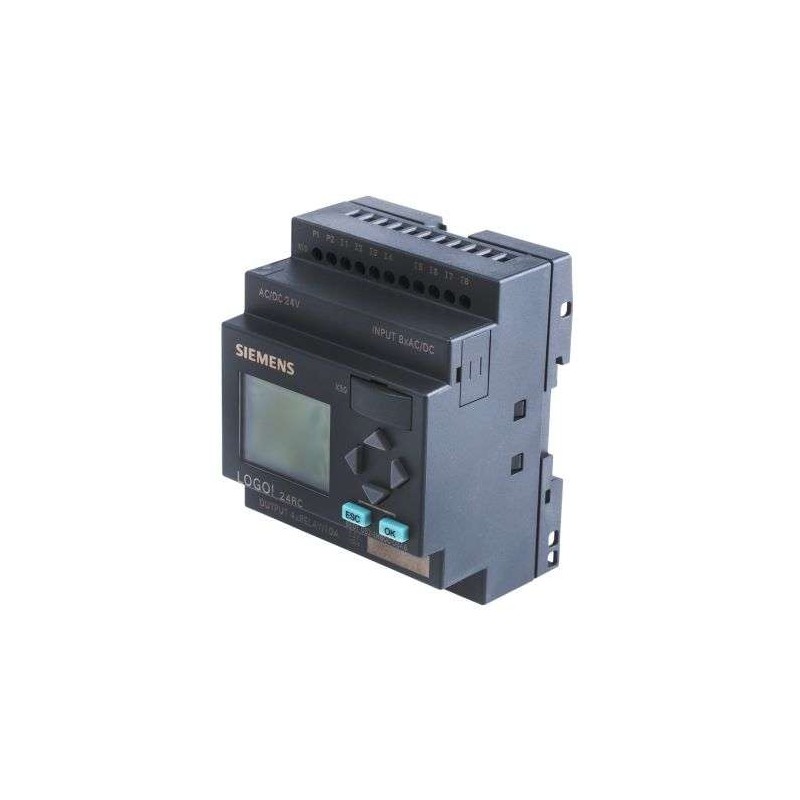

The Siemens LOGO! 24RC, model 6ED1052-1HB00-0BA6, is a compact yet powerful logic module engineered for demanding automation tasks requiring a universal 24V DC power supply and robust relay outputs. This device combines a built-in display, 200 memory blocks, and modular expandability to deliver flexible control in industrial machinery, building automation, and lighting systems. Its 8 digital inputs and 4 relay outputs handle mixed signal types, while the ladder diagram programming environment simplifies design and commissioning. With its rugged construction and easy integration, the 6ED1052-1HB00-0BA6 is a reliable choice for engineers seeking a cost-effective, scalable solution for small to medium-scale automation projects.
| Parameter |
Specification |
| Product Type |
Logic Module |
| Model Number |
6ED1052-1HB00-0BA6 |
| Supply Voltage |
24V DC (UC) |
| Power Supply Type |
Integrated, DC |
| Digital Inputs |
8 (24V DC, sink/source) |
| Digital Outputs |
4 (Relay, 10A per output) |
| Memory Blocks |
200 |
| Display |
Integrated LCD (4 lines, backlit) |
| Programming Software |
LOGO! Soft Comfort |
| Programming Language |
Ladder Diagram (LD) |
| Expandability |
Up to 4 expansion modules (digital, analog, communication) |
| Operating Temperature |
0°C to 55°C |
| Storage Temperature |
-40°C to 70°C |
| Dimensions (W x H x D) |
72 mm x 90 mm x 55 mm |
| Mounting |
DIN rail or panel mount |
| Protection Rating |
IP20 |
| Communication Interface |
Optional via expansion modules (e.g., Ethernet, RS485) |
| Real-Time Clock |
Built-in, battery-backed |
| Certifications |
CE, UL, CSA, cULus |
| Weight |
Approx. 0.15 kg |
