Siemens LOGO! 24 Logic Module

Series#: Siemens

Product Details

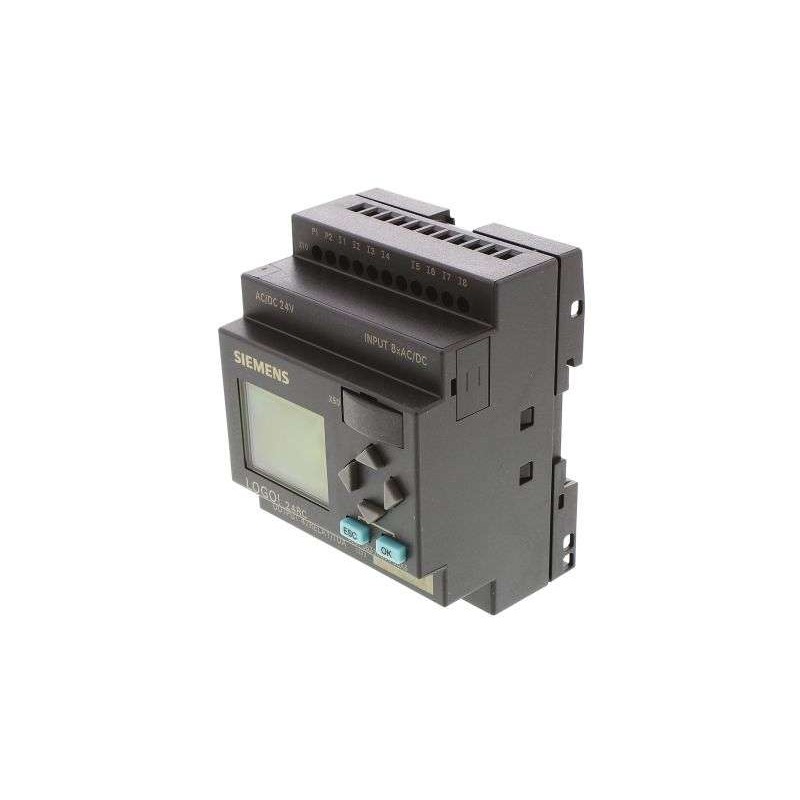

Model 6ED1052-1CC00-0BA6 – Siemens LOGO! 24 Logic Module, a compact and versatile automation controller for industrial and building applications.
8 Digital Inputs (4 configurable as Analog) – Flexible I/O configuration allows mixed signal handling, reducing the need for additional modules.
4 Digital Outputs (24V DC) – Reliable transistor outputs for direct control of actuators, valves, and indicators.
Built-in Display & Keypad – On-device programming, monitoring, and diagnostics without a PC, ideal for field adjustments.
200 Program Blocks & Expandable – Sufficient memory for medium-complexity logic, plus expandable with LOGO! modules for increased I/O or communication.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Siemens LOGO! 24, specifically the 6ED1052-1CC00-0BA6, is a highly reliable logic module engineered for decentralized automation tasks. This compact controller bridges the gap between traditional relay logic and full-scale PLCs, offering a cost-effective solution for machine control, building automation, and process monitoring. With a 24V DC supply and integrated display, the LOGO! 24 provides intuitive on-site programming and real-time status feedback. Its mixed I/O capability—where up to four digital inputs can be configured as analog inputs—makes it exceptionally versatile for applications requiring both discrete and continuous signal processing. The module supports ladder diagram programming via LOGO! Soft Comfort software, and its expandable architecture allows seamless integration with additional I/O modules, communication interfaces (RS-232, RS-485, Ethernet), and real-time clock accessories. Designed for space-saving installation in control cabinets, the 6ED1052-1CC00-0BA6 is ideal for lighting control, pump management, conveyor systems, and simple HVAC sequences. Below are the detailed technical specifications:

Specification	Details
Product Type	Logic Module – Siemens LOGO! 24
Model Number	6ED1052-1CC00-0BA6
Supply Voltage (PU)	24V DC (permissible range: 20.4V to 28.8V DC)
Input Voltage (Digital)	24V DC (IEC 61131-2, Type 1/3)
Output Voltage (Digital)	24V DC (transistor, 0.3A per output, protected against short circuit)
Digital Inputs (DI)	8 (4 of which can be used as analog inputs: 0-10V or 0-20mA with external converter)
Digital Outputs (DO)	4 (transistor, 24V DC, 0.3A each, total current limited to 1.2A)
Analog Inputs (AI)	Up to 4 (via mixed mode on DIs, requires external sensor or signal conditioner)
Program Memory	200 function blocks (supports ladder diagram, function block diagram, and UDF)
Cycle Time	Typically < 0.1 ms per 100 blocks
Display Type	Backlit LCD, 6 lines x 20 characters, with integrated keypad for programming
Real-Time Clock	Optional (via LOGO! CMR or internal module, not integrated in base unit)
Communication Options	Expandable with LOGO! CMR (Ethernet), LOGO! TD (Text Display), or RS-232/RS-485 modules
Expandability	Up to 8 expansion modules (digital I/O, analog I/O, communication, or memory)
Protection Class	IP20 (for use in control cabinets)
Operating Temperature	0°C to +55°C (storage: -40°C to +70°C)
Dimensions (W x H x D)	71.5 mm x 90 mm x 58 mm (without expansion modules)
Weight	Approx. 150 g
Standards & Certifications	CE, UL, cUL, FM, ATEX (for certain configurations)
Programming Software	LOGO! Soft Comfort V8.3 or higher (supports LD, FBD, and UDF)
Application Examples	Machine control, building automation (lighting, HVAC), pump/fan control, conveyor logic, simple process control
