Siemens IM151-7 CPU Interface Module

Series#: Siemens

Product Details

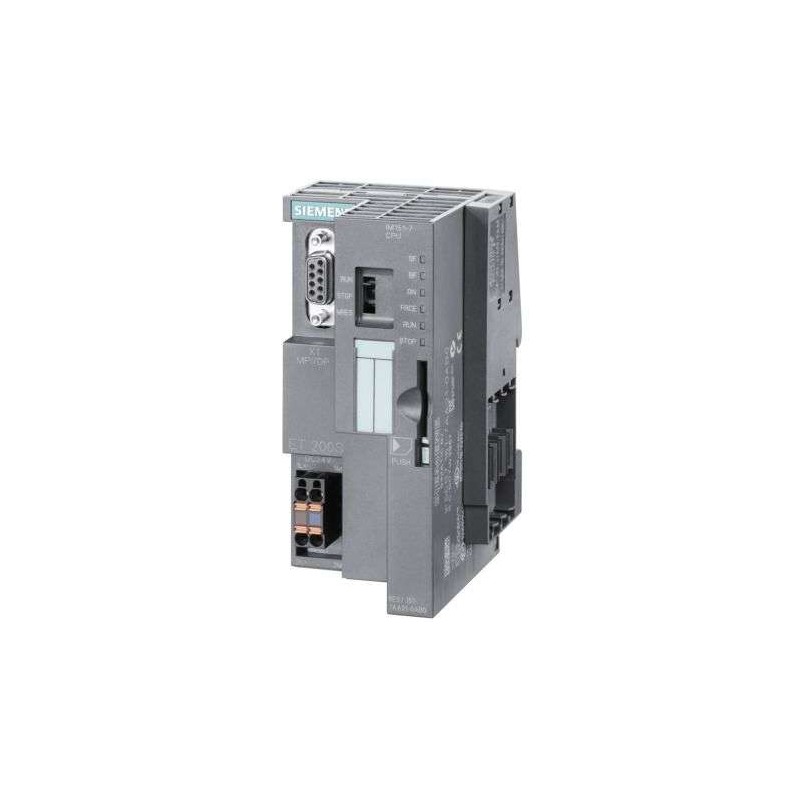

Model: 6ES7151-7AA21-0AB0 – Siemens SIMATIC DP IM151-7 CPU for ET200S interface module.
Integrated CPU with 128 KB working memory for complex automation tasks.
Built-in PROFIBUS DP interface (9-pin Sub-D, female) for high-speed slave communication.
Battery-less design reduces maintenance costs and enhances reliability.
Requires SIMATIC MMC for program storage and data management.
Fully compatible with STEP 7 for seamless configuration and programming.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 6ES7151-7AA21-0AB0 is a high-performance interface module from the Siemens SIMATIC ET200S family, combining a powerful CPU with an integrated PROFIBUS DP interface. Designed as a DP slave, this IM151-7 CPU delivers 128 KB of working memory and supports battery-less operation, making it ideal for distributed automation in manufacturing lines, process control, and machine automation. Its compact form factor and scalability with ET200S I/O modules ensure flexible deployment in space-constrained industrial environments.

Specification	Details
Product Type	SIMATIC DP IM151-7 CPU for ET200S
Model Number	6ES7151-7AA21-0AB0
Working Memory	128 KB
Interface Type	PROFIBUS DP (integrated)
Connector Type	9-pin Sub-D, female
Role on Network	DP Slave
Battery Requirement	None (battery-less design)
Memory Card Support	SIMATIC MMC required
Programming Software	STEP 7 (compatible)
System Compatibility	SIMATIC ET200S distributed I/O system
Scalability	Expandable with ET200S I/O modules
Power Supply	Via ET200S system configuration
Operating Temperature	0°C to 60°C (typical, as per ET200S system)
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	10 to 58 Hz, 0.075 mm amplitude; 58 to 500 Hz, 1 g
Shock Resistance	15 g, 11 ms
Protection Class	IP20
Weight	Approximately 0.25 kg
Dimensions (W x H x D)	40 mm x 125 mm x 120 mm
Compliance	CE, UL, CSA, cULus
Application Areas	Process control, manufacturing lines, machine automation, plant-wide networks
