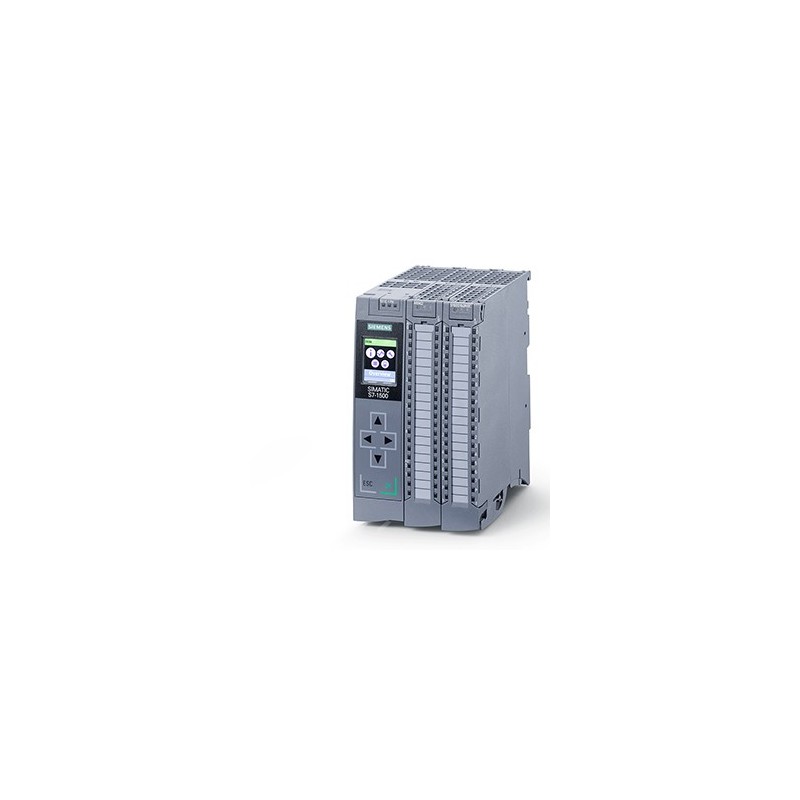

Siemens 6ES7511-1CK00-0AB0 CPU 1511C-1 PN

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-1500 Compact CPU CPU 1511C-1 PN, 6ES7511-1CK00-0AB0 – A high-performance, space-saving controller for demanding automation tasks.
Integrated I/O: 16 Digital Inputs, 16 Digital Outputs, 5 Analog Inputs, and 2 Analog Outputs for versatile control.
PROFINET IRT interface with 2-port switch for real-time, high-speed communication (60 ns bit performance).
Large work memory: 175 KB for program and 1 MB for data, enabling complex logic and data handling.
Supports TIA Portal V13 or higher for efficient engineering and programming in LD, FBD, ST, and IL.
Compact design with push-in front connectors simplifies wiring and saves cabinet space.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Siemens SIMATIC S7-1500 Compact CPU CPU 1511C-1 PN (6ES7511-1CK00-0AB0) is a robust, all-in-one controller designed for mid-range to complex automation applications. This compact CPU integrates a powerful processor with a rich set of onboard I/O, including digital and analog channels, high-speed counters, and PTO/PWM outputs. Its PROFINET IRT interface ensures deterministic, real-time communication, making it ideal for high-speed machinery, packaging lines, and process control. With 175 KB of program memory and 1 MB of data memory, it handles demanding control algorithms and large data sets effortlessly. The CPU is fully programmable via the TIA Portal, supporting multiple IEC languages for flexible development. Its compact footprint and integrated push-in terminals simplify installation and reduce wiring time, while enhanced diagnostics and web server capabilities streamline maintenance and troubleshooting.

Specification	Details
Product Type	SIMATIC S7-1500 Compact CPU
Model	CPU 1511C-1 PN
Order Number	6ES7511-1CK00-0AB0
Work Memory	Program: 175 KB; Data: 1 MB
Integrated Digital Inputs	16 DI, 24 V DC (high-speed, sink/source)
Integrated Digital Outputs	16 DO, 24 V DC (0.5 A per channel)
Integrated Analog Inputs	5 AI, 0-10 V / 4-20 mA (12-bit resolution)
Integrated Analog Outputs	2 AO, 0-10 V / 4-20 mA (12-bit resolution)
High-Speed Counters	6 (up to 1 MHz)
PTO/PWM/Frequency Outputs	4 (up to 100 kHz)
1st Interface	PROFINET IRT with 2-port switch (RJ45)
PROFINET Bit Performance	60 ns
Communication Services	PG/OP communication, HMI, S7 routing, OPC UA (optional)
Supported Programming Software	TIA Portal V13 or higher
Programming Languages	Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL)
Power Supply	24 V DC (external, not included)
Power Consumption (Typical)	8.5 W (CPU only, no load on I/O)
Operating Temperature	0 °C to +60 °C (horizontal installation)
Storage Temperature	-40 °C to +70 °C
Dimensions (W x H x D)	70 mm x 100 mm x 75 mm (without connector)
Weight	Approx. 320 g
Protection Class	IP20
Mounting Method	DIN rail (35 mm) or panel mount
Front Connector	Push-in type (supplied with CPU)
Diagnostics	Integrated, with status LEDs and web server
Certifications	CE, UL, cUL, FCC, RCM, etc.
