Siemens 6ES7517-3AP00-0AB0 CPU 1517-3 PN/DP

Series#: Siemens

Product Details

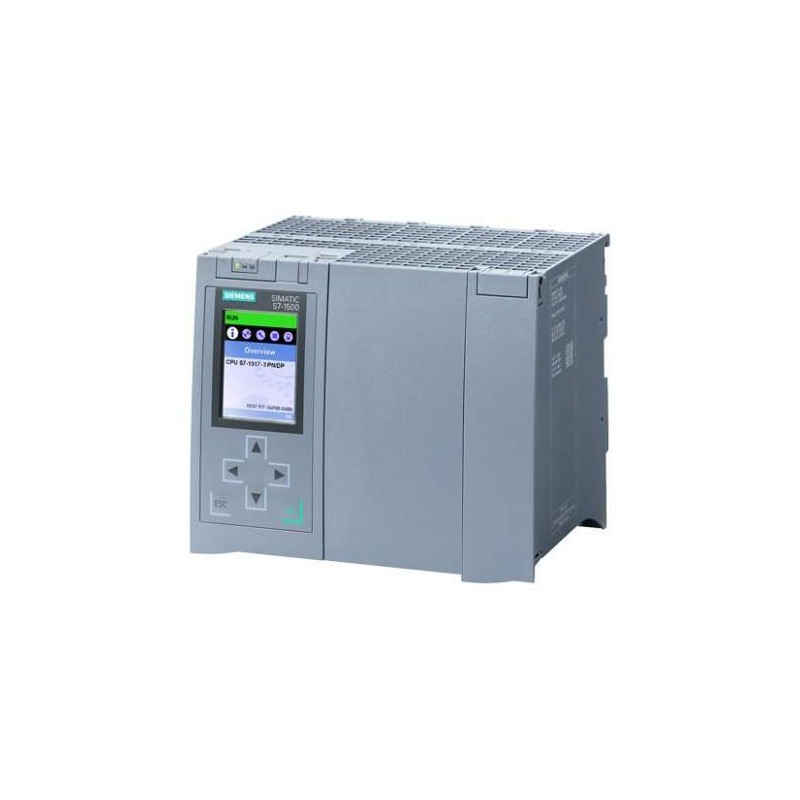

Product Model: SIEMENS SIMATIC S7-1500 CPU 1517-3 PN/DP (6ES7517-3AP00-0AB0) – a high-performance central processing unit for demanding industrial automation tasks.
Triple-interface design: features two PROFINET ports (one with IRT) and one PROFIBUS port for flexible, high-speed networking.
Massive on-board memory: 2 MB for program code and 8 MB for data, enabling complex logic and large data handling.
Super-fast bit processing speed of 2 ns, ensuring deterministic control and real-time responsiveness.
Seamless integration with TIA Portal (V13 or higher) for streamlined engineering, diagnostics, and maintenance.
Modular and scalable architecture, supporting a wide range of I/O modules and safety functions for future-proof automation.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The SIEMENS SIMATIC S7-1500 CPU 1517-3 PN/DP, order number 6ES7517-3AP00-0AB0, is a flagship central processing unit engineered for advanced industrial control systems. This CPU delivers exceptional processing power and connectivity, making it ideal for complex manufacturing lines, process control, and infrastructure applications. With its triple-interface architecture combining PROFINET IRT, PROFINET RT, and PROFIBUS, it ensures seamless integration into both modern and legacy networks. The CPU 1517-3 PN/DP is designed to handle the most demanding automation tasks with precision, speed, and reliability.

Specification Category	Detailed Parameter
Product Type	Central Processing Unit (CPU) for SIMATIC S7-1500
Model	CPU 1517-3 PN/DP
Order Number	6ES7517-3AP00-0AB0
Work Memory – Program	2 MB
Work Memory – Data	8 MB
Bit Performance (Processing Time)	2 ns per bit operation
Interface 1	PROFINET IRT with 2-port switch (supports RT/IRT)
Interface 2	PROFINET RT
Interface 3	PROFIBUS DP (RS485)
Required Memory Card	SIMATIC Memory Card (not included)
Programming Software	TIA Portal V13 or higher
Supported Programming Languages	Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL)
Number of Data Blocks (DBs)	Limited by memory capacity; up to 16,384 blocks
Number of Function Blocks (FBs)	Limited by memory capacity; up to 16,384 blocks
Number of Function Codes (FCs)	Limited by memory capacity; up to 16,384 blocks
Number of Organization Blocks (OBs)	Up to 1,024 (depending on TIA Portal version)
Counters and Timers	S7 Counters and Timers (retentive, limited by memory)
Onboard Diagnostics	Integrated diagnostic buffer, status LEDs, and system diagnostics
Modular Expansion	Supports up to 32 I/O modules in a single rack (via ET 200MP or similar)
Integrated Safety Functions	Optional via F-CPU and safety modules (e.g., STO, SS1)
Power Supply	Typically 24 V DC (requires external power supply module, e.g., PS 60W)
Operating Temperature	0°C to 60°C (horizontal installation)
Dimensions (W x H x D)	Approx. 70 mm x 125 mm x 130 mm (without connectors)
Weight	Approx. 0.5 kg
Standards and Certifications	CE, cULus, ATEX (depending on configuration), marine approvals

This CPU is designed for high-speed multitasking and parallel processing, ensuring efficient execution of complex control logic. Its enhanced diagnostic capabilities simplify troubleshooting, while the modular design allows for easy customization. For the most accurate and up-to-date information, always refer to the official Siemens documentation.
