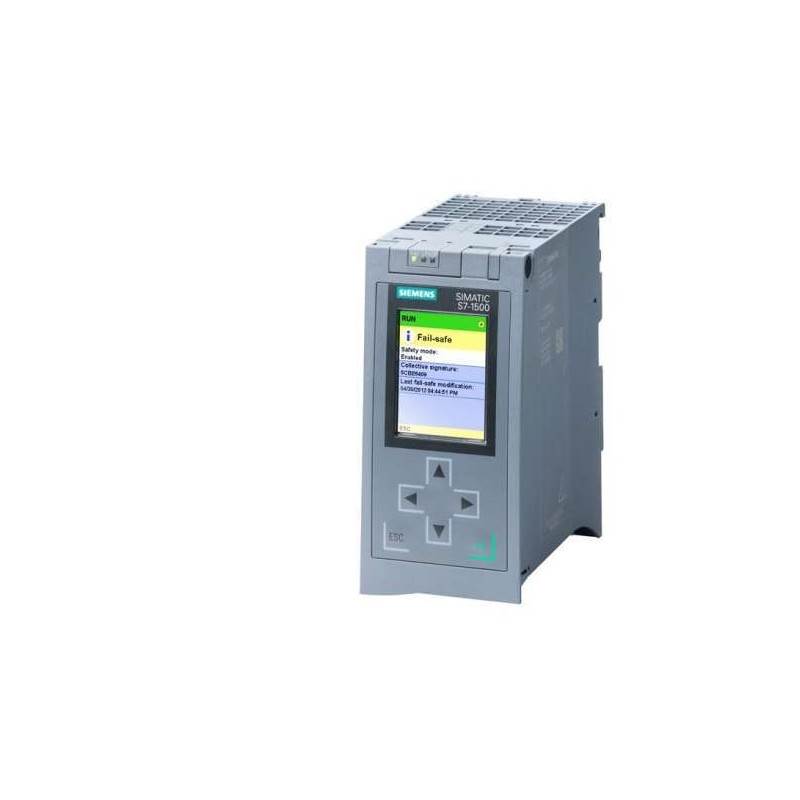

The Siemens SIMATIC S7-1500 CPU 1515-2 PN, order number 6ES7515-2AM01-0AB0, is a powerhouse controller engineered for advanced automation tasks across industries like manufacturing, process control, and discrete production. With its robust memory architecture and dual PROFINET ports, this CPU excels in high-speed, real-time applications, offering deterministic communication via IRT and flexible networking via RT. Its 30 ns bit performance and comprehensive diagnostics make it a reliable choice for demanding environments, while full TIA Portal compatibility streamlines programming and maintenance. This unit is 100% new and original, ensuring peak performance out of the box.
| Specification |
Details |
| Product Type |
Central Processing Unit (CPU) |
| Order Number |
6ES7515-2AM01-0AB0 |
| Work Memory (Program) |
500 KB |
| Work Memory (Data) |
3 MB |
| Bit Performance |
30 ns |
| 1st Interface |
PROFINET IRT with 2-port switch |
| 2nd Interface |
PROFINET RT |
| Power Supply |
24 V DC (typical) |
| Memory Card Required |
SIMATIC Memory Card (sold separately) |
| Max. Number of Data Blocks (DBs) |
Limited by memory and TIA Portal |
| Max. Number of Function Blocks (FBs) |
Limited by memory and TIA Portal |
| Max. Number of Function Codes (FCs) |
Limited by memory and TIA Portal |
| Max. Number of Organization Blocks (OBs) |
Limited by memory and TIA Portal |
| Counters |
S7 Counters with retentivity |
| Timers |
S7 Timers with retentivity |
| Diagnostics |
Onboard enhanced diagnostics |
| Redundancy |
Supported in certain configurations |
| Operating Temperature |
0 °C to 60 °C (horizontal installation) |
| Dimensions (W x H x D) |
Approx. 70 x 125 x 130 mm |
| Weight |
Approx. 550 g |
