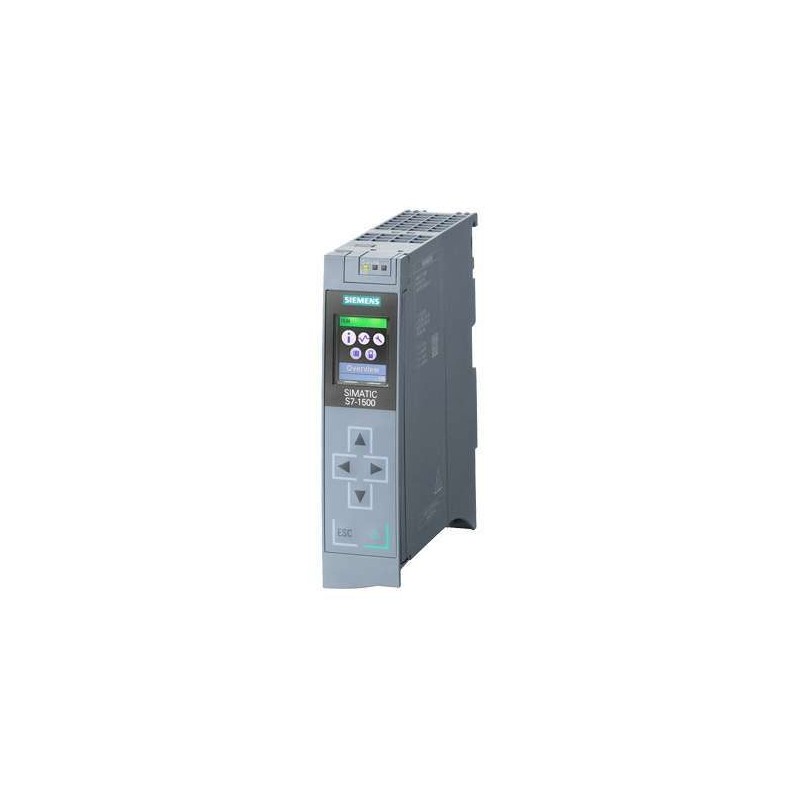

The SIEMENS SIMATIC S7-1500 CPU 1513-1 PN (order number 6ES7513-1AL01-0AB0) is a mid-range controller engineered for high-speed execution in complex industrial environments. As a cornerstone of the S7-1500 family, this CPU delivers exceptional deterministic performance via its integrated PROFINET IRT interface, making it ideal for applications requiring precise synchronization, such as manufacturing lines, process industries, and infrastructure systems. With a balanced combination of program and data memory, robust communication capabilities, and seamless integration into the TIA Portal engineering framework, the CPU 1513-1 PN provides a future-proof foundation for scalable automation solutions.
| Specification |
Details |
| Product Type |
Central Processing Unit (CPU) |
| Model |
CPU 1513-1 PN |
| Order Number |
6ES7513-1AL01-0AB0 |
| Series |
SIMATIC S7-1500 |
| Work Memory (Program) |
300 KB |
| Work Memory (Data) |
1.5 MB |
| Interface 1 |
PROFINET IRT with 2-port switch |
| PROFINET Bit Performance |
40 ns |
| Power Supply |
24 V DC (external, recommended protection) |
| Programming Software |
TIA Portal V13 or higher |
| Programming Languages |
LAD, FBD, ST, IL |
| Memory Card Support |
SIMATIC Memory Card (required for backup and expansion) |
| Expandable I/O |
Yes, via I/O modules, communication modules, and technology modules |
| Onboard Diagnostics |
Integrated diagnostic functions for fault detection |
| Application Areas |
Manufacturing, process industries, infrastructure, motion control |
| Real-Time Communication |
PROFINET IRT for deterministic data exchange |
| Weight (approx.) |
Approx. 0.5 kg (varies by configuration) |
