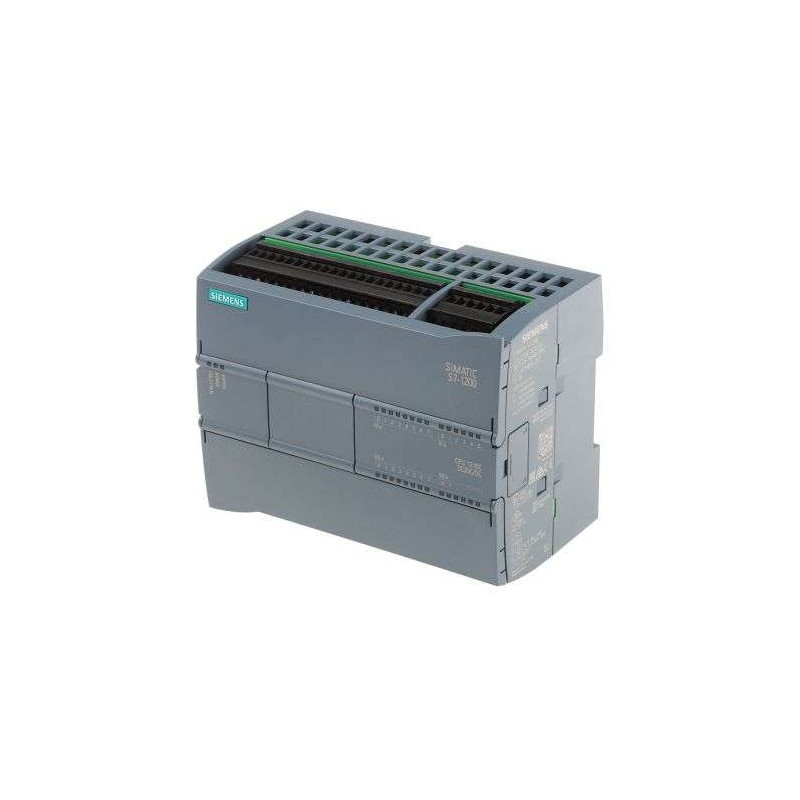

Siemens 6ES7215-1AG40-0XB0 CPU 1215C

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-1200 CPU 1215C (6ES7215-1AG40-0XB0) – Compact, high-performance DC/DC/DC controller for demanding automation tasks.
Integrated Mixed I/O: 14 digital inputs, 10 digital outputs, 2 analog inputs, and 2 analog outputs for versatile control.
Dual PROFINET Ports: Built-in 2-port PROFINET switch for high-speed device-to-device communication and network topology flexibility.
125 KB Work Memory: Ample program and data memory for complex logic, plus integrated flash load memory for secure program retention.
TIA Portal Compatible: Fully programmable with TIA Portal V13 or higher, supporting LAD, FBD, ST, and IL languages.
Compact & Robust: Space-saving design with enhanced onboard diagnostics for simplified maintenance and reliable 24 V DC operation.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The SIEMENS SIMATIC S7-1200 CPU 1215C, model 6ES7215-1AG40-0XB0, represents the pinnacle of compact yet powerful automation controllers for modern industrial environments. Designed for DC-powered applications, this CPU integrates a rich set of digital and analog I/O, dual PROFINET interfaces, and a generous 125 KB work memory to handle sophisticated control sequences, motion tasks, and data processing. Its seamless integration with the TIA Portal ecosystem ensures fast engineering and deployment, while the robust hardware design guarantees reliable operation in harsh factory conditions. Whether used in standalone machines or distributed automation networks, the CPU 1215C delivers the performance and flexibility required for chemical, electronics, and general manufacturing sectors.

Specification Category	Detail
Product Model	6ES7215-1AG40-0XB0
Product Series	SIMATIC S7-1200
CPU Type	CPU 1215C, Compact CPU, DC/DC/DC
Supply Voltage	DC 20.4…28.8 V DC
Integrated Digital Inputs	14 DI, 24 V DC, sink/source (IEC Type 1)
Integrated Digital Outputs	10 DO, 24 V DC, 0.5 A per channel
Integrated Analog Inputs	2 AI, 0…10 V DC, 10-bit resolution
Integrated Analog Outputs	2 AO, 0…20 mA DC, 10-bit resolution
Work Memory (Program + Data)	125 KB
Load Memory	Integrated flash (retentive)
PROFINET Interfaces	2 ports (integrated switch), RJ45
Programming Software	TIA Portal V13 or higher
Programming Languages	LAD, FBD, ST, IL
Counters / Timers	S7 counters and timers (retentive, memory-limited)
Max. Number of Data Blocks (DBs)	Limited by TIA Portal and memory capacity
Onboard Diagnostics	Yes, enhanced diagnostic buffer and status LEDs
Protection Class	IP20 (open-type device)
Ambient Temperature (Operation)	0 °C … 60 °C (horizontal installation)
Dimensions (W x H x D)	110 mm x 100 mm x 75 mm
Weight	Approx. 390 g
Application Areas	Chemical, electronics, electrical, machinery, packaging, and general automation
