Siemens 6ES7214-1HF40-0XB0 CPU 1214 FC

Series#: Siemens

Product Details

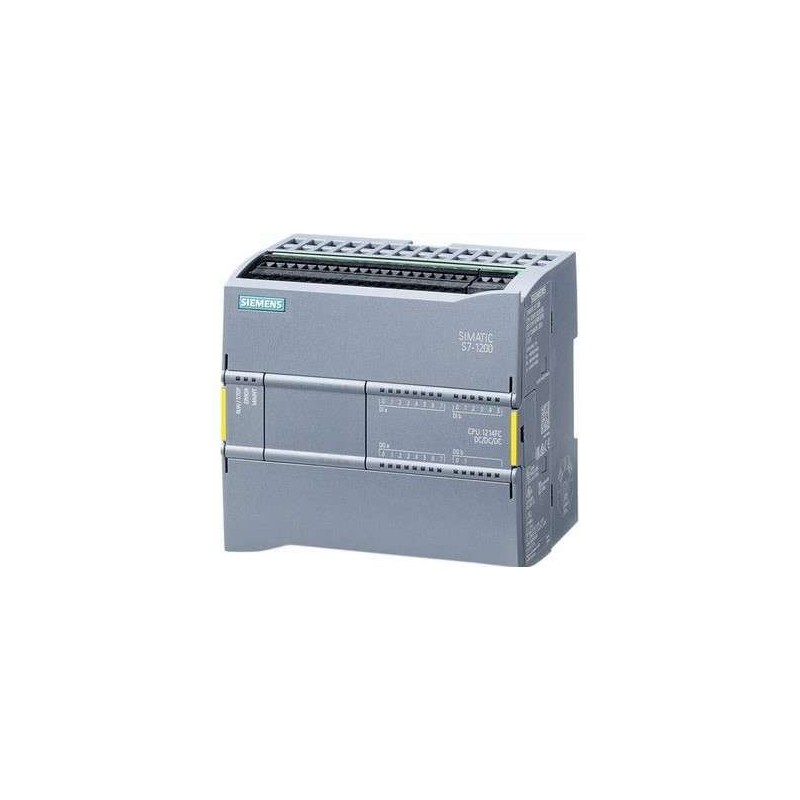

Siemens SIMATIC S7-1200F CPU 1214 FC (6ES7214-1HF40-0XB0) – A compact, fail-safe controller engineered for high-reliability automation tasks.
Integrated I/O: 14x DI (24V DC), 10x Relay DO (2A), and 2x AI (0-10V DC) for versatile sensor and actuator connectivity.
125 KB program/data memory ensures ample capacity for complex safety and standard control logic.
Programmed via TIA Portal (V13 or later) with support for LAD, FBD, ST, and IL languages.
Compact footprint and relay outputs allow direct switching of higher-power loads like motors and lights.
Enhanced onboard diagnostics and retentive timers/counters simplify maintenance and ensure data integrity.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Siemens SIMATIC S7-1200F CPU 1214 FC (6ES7214-1HF40-0XB0) represents a pinnacle of fail-safe automation engineering, seamlessly integrating robust processing power with a compact form factor. Designed for demanding industrial environments where safety and reliability are paramount, this CPU combines a high-performance 24V DC logic engine with 10 relay outputs capable of switching up to 2A per channel. Its 125 KB of integrated memory provides generous headroom for complex safety programs and data handling, while the two analog inputs (0-10V DC) enable precise monitoring of analog sensors. Fully compatible with the TIA Portal engineering framework, the CPU 1214 FC supports multiple IEC programming languages, ensuring flexibility for both seasoned programmers and new system integrators. Whether deployed in chemical processing, packaging lines, or machine safety systems, this CPU delivers uncompromising performance and diagnostics for critical control tasks.

Specification	Details
Product Type	Siemens SIMATIC S7-1200F, CPU 1214 FC
Order Number	6ES7214-1HF40-0XB0
Supply Voltage	DC 20.4 … 28.8 V DC
Integrated Digital Inputs	14 DI, 24V DC, type 3 (IEC 61131)
Integrated Digital Outputs	10 DO, Relay, 2A per channel
Integrated Analog Inputs	2 AI, 0 … 10V DC, 10-bit resolution
Program/Data Memory	125 KB (work memory)
Load Memory	Integrated flash (supports SIMATIC Memory Card)
Retentive Memory	10 KB (maintained across power cycles)
Bit Processing Time	Approx. 0.1 µs per instruction
Programming Software	TIA Portal V13 or higher
Programming Languages	LAD, FBD, ST, IL (IEC 61131-3)
Max. Number of Program Blocks	Limited by memory; typical OB, FB, FC, DB counts per TIA Portal
Counters & Timers	S7 counters and timers with retentivity (memory-limited)
Safety Functionality	Fail-safe (F-CPU) with PROFIsafe support
Communication Interfaces	1x PROFINET (2-port switch), supports RT/IRT
Diagnostics	Onboard status LEDs, buffer, and diagnostic OB support
Ambient Temperature	0 °C … 60 °C (horizontal installation)
Dimensions (W x H x D)	110 x 100 x 75 mm
Weight	Approx. 390 g
Protection Class	IP20 (open-type device)
