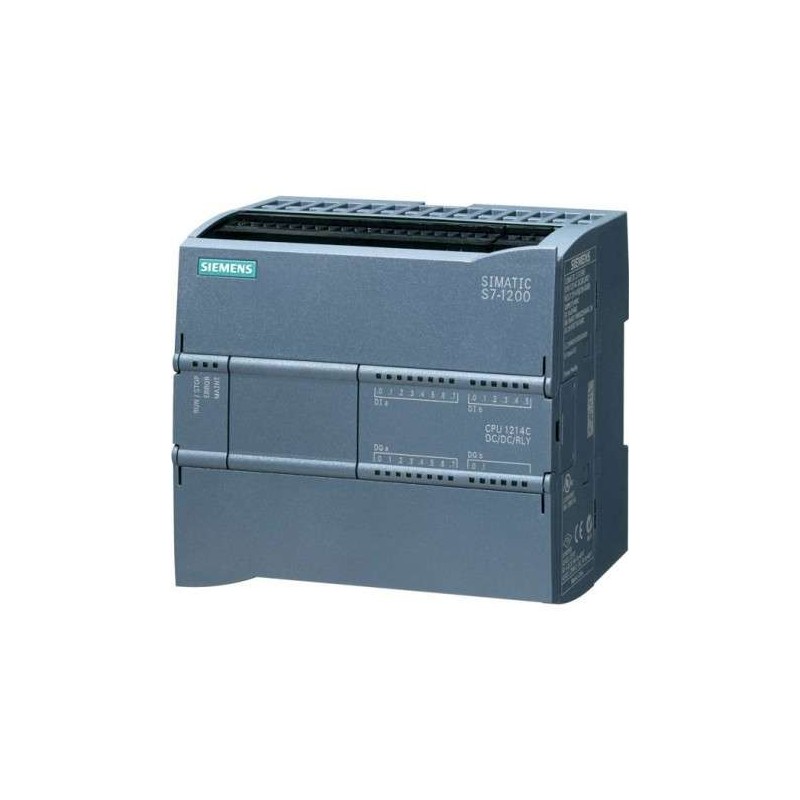

Siemens 6ES7214-1HG40-0XB0 CPU 1214C

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-1200 CPU 1214C (6ES7214-1HG40-0XB0) – Compact, high-performance controller for mid-range automation tasks.
Integrated I/O: 14 x 24V DC digital inputs, 10 x relay digital outputs (2A), and 2 x 0-10V analog inputs – reduces need for external modules.
100 KB program/data memory with integrated flash load memory for reliable program retention during power loss.
Programmed via TIA Portal (V13 or higher) supporting Ladder, FBD, Structured Text, and Instruction List for flexible development.
DC power supply range 20.4-28.8 V DC with external protection recommended for harsh industrial environments.
Compact, space-saving design ideal for tight control cabinets in chemical, electronics, and electrical sectors.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The SIEMENS SIMATIC S7-1200 CPU 1214C, order number 6ES7214-1HG40-0XB0, is a compact yet powerful controller engineered for demanding industrial automation applications. This DC/DC/Relay variant provides a robust blend of integrated digital and analog I/O, ample memory, and versatile communication capabilities, all within a space-saving footprint. Designed for seamless integration into the TIA Portal environment, the CPU 1214C delivers high-speed processing, reliable diagnostics, and flexible programming, making it an ideal choice for machinery control, process automation, and system integration projects across various industries.

Parameter	Specification
Product Type	SIMATIC S7-1200, CPU 1214C
Order Number	6ES7214-1HG40-0XB0
Power Supply	DC 20.4 – 28.8 V DC
Integrated Digital Inputs	14 x 24 V DC (sink/source)
Integrated Digital Outputs	10 x Relay, 2 A per channel
Integrated Analog Inputs	2 x 0-10 V DC (10-bit resolution)
Program / Data Memory	100 KB
Load Memory	Integrated Flash (non-removable)
Programming Software	TIA Portal V13 or higher
Programming Languages	Ladder (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL)
Max. Number of Data Blocks (DBs)	Limited by memory and TIA Portal version (typically up to 1024)
Max. Number of Function Blocks (FBs)	Limited by memory and TIA Portal version
Max. Number of Function Calls (FCs)	Limited by memory and TIA Portal version
Counters / Timers	S7 Counters & Timers with retentivity
Onboard Diagnostics	Yes – status LEDs, diagnostic buffer, and hardware interrupts
Communication Interfaces	1 x PROFINET (RJ45) – integrated switch
Protection Class	IP20 (open-type device)
Ambient Temperature	0 °C to 55 °C (horizontal installation)
Dimensions (W x H x D)	110 mm x 100 mm x 75 mm
Weight	Approx. 350 g
