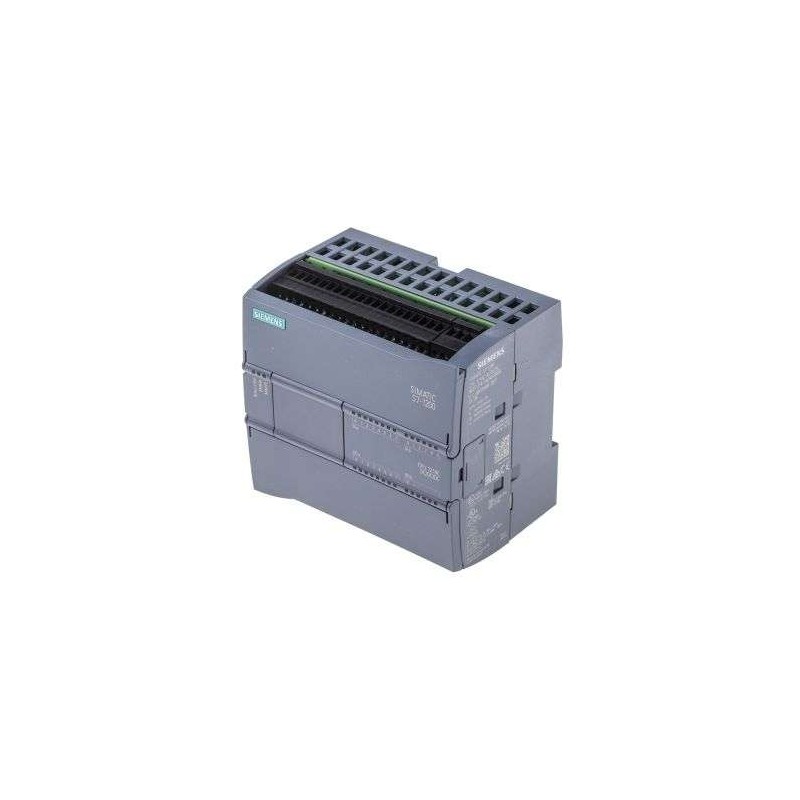

Siemens 6ES7214-1AG40-0XB0 CPU 1214C

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-1200, CPU 1214C (6ES7214-1AG40-0XB0) – Compact, high-performance controller for mid-range automation tasks.
Integrated 14 DI / 10 DO (24V DC) and 2 AI (0-10V) for versatile signal handling.
100 KB program/data memory with flash load memory for robust application execution.
Programmed via TIA Portal V13+ supporting LAD, FBD, ST, and IL languages.
Space-saving design with enhanced onboard diagnostics for easy maintenance.
Optimized for demanding control logic and arithmetic operations in industrial environments.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SIEMENS SIMATIC S7-1200, CPU 1214C (6ES7214-1AG40-0XB0) is a compact yet powerful CPU designed for flexible and scalable automation solutions. With its integrated digital and analog I/O, generous memory capacity, and support for the TIA Portal engineering framework, this CPU is ideal for applications in chemical, electronics, electrical, and other industrial sectors. Its reliable performance and retentive counters/timers ensure consistent operation even under demanding conditions.

Specification	Details
Product Series	SIMATIC S7-1200
CPU Type	CPU 1214C, Compact CPU
Order Number	6ES7214-1AG40-0XB0
Supply Voltage	DC 20.4–28.8 V DC
Integrated Digital Inputs	14 DI, 24 V DC, type 3 (IEC 61131)
Integrated Digital Outputs	10 DO, 24 V DC, 0.5 A per channel
Integrated Analog Inputs	2 AI, 0–10 V DC, 10-bit resolution
Program / Data Memory	100 KB
Load Memory	Integrated flash memory (non-volatile)
Programming Software	TIA Portal V13 or higher
Programming Languages	Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL)
Max. Number of Data Blocks (DBs)	Limited by memory capacity (configurable in TIA Portal)
Max. Number of Function Blocks (FBs)	Limited by memory capacity
Max. Number of Function Calls (FCs)	Limited by memory capacity
Max. Number of Organization Blocks (OBs)	Limited by memory capacity
S7 Counters / Timers	Retentive, limited only by memory capacity
Onboard Diagnostics	Enhanced diagnostic functions via LED and software
Protection Class	IP20 (when installed in enclosure)
Dimensions (W x H x D)	Approx. 100 x 100 x 75 mm
Weight	Approx. 390 g
Ambient Temperature (Operation)	0 °C to 60 °C
Ambient Temperature (Storage)	-40 °C to 70 °C
Relative Humidity	95% at 25 °C (non-condensing)
Certifications	CE, cULus, FM, etc.
