Siemens 6ES7212-1HF40-0XB0 CPU 1212 FC

Series#: Siemens

Product Details

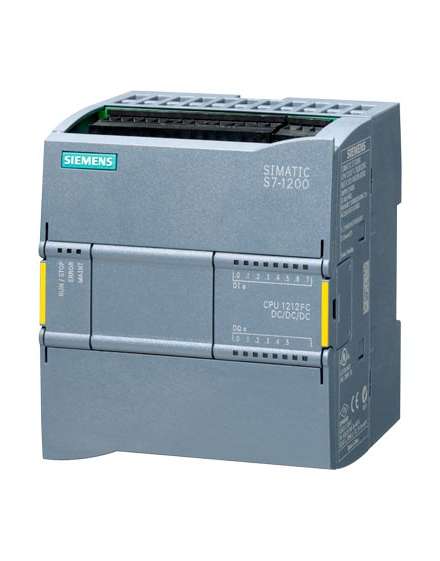

SIEMENS SIMATIC S7-1200 CPU 1212FC (6ES7212-1HF40-0XB0) – Compact fail-safe controller for demanding automation tasks.
Integrated I/O: 8 Digital Inputs (24V DC), 6 Relay Outputs (2A), and 2 Analog Inputs (0-10V DC) for versatile control.
100 KB program/data memory with integrated flash load memory ensures reliable program retention.
Programmed via TIA Portal (V13 or higher) with support for LAD, FBD, ST, and IL languages.
Compact design saves panel space while offering robust diagnostics and fail-safe functionality.
Ideal for chemical, electronics, and general industrial automation requiring high reliability.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SIEMENS SIMATIC S7-1200 CPU 1212FC (6ES7212-1HF40-0XB0) is a compact, fail-safe CPU designed to meet the rigorous demands of modern industrial automation. Part of the renowned S7-1200 family, this controller integrates powerful processing capabilities with built-in safety functions, making it an ideal choice for applications in chemical processing, electronics manufacturing, and other sectors where system integrity is paramount. With its onboard mix of digital and analog I/O, the CPU 1212FC simplifies system architecture while providing the flexibility needed for complex control tasks.

Specification	Details
Product Type	SIMATIC S7-1200, CPU 1212FC, Compact Fail-Safe CPU
Model Number	6ES7212-1HF40-0XB0
Supply Voltage	DC 20.4 – 28.8 V DC
Integrated Digital Inputs	8 DI, 24V DC (Type 3 per IEC 61131-2)
Integrated Digital Outputs	6 DO, Relay, 2A (max. 30V DC / 250V AC)
Integrated Analog Inputs	2 AI, 0 – 10V DC (10-bit resolution)
Program/Data Memory	100 KB (total, including work memory)
Load Memory	Integrated flash (approx. 4 MB, program retention guaranteed)
Bit Processing Time	Typical 0.1 µs
Programming Software	TIA Portal V13 or higher (STEP 7 Basic/Professional)
Programming Languages	LAD, FBD, ST, IL (SCL)
Max. Number of Blocks (DB, FB, FC, OB)	Limited by memory capacity (up to 1000 blocks typical)
Counters & Timers	S7 counters and timers (retentive, memory-based)
Onboard Communication	PROFINET interface (2-port switch, supports RT/IRT)
Safety Functionality	Fail-safe (up to SIL 3 / PLe) via integrated safety blocks
Diagnostics	Enhanced onboard diagnostics with LED indicators
Operating Temperature	0°C to +60°C (horizontal installation)
Dimensions (W x H x D)	90 x 100 x 75 mm (without bus connector)
Weight	Approx. 320 g
Protection Class	IP20 (with enclosure)
Application Areas	Chemical, electronics, automotive, general automation
