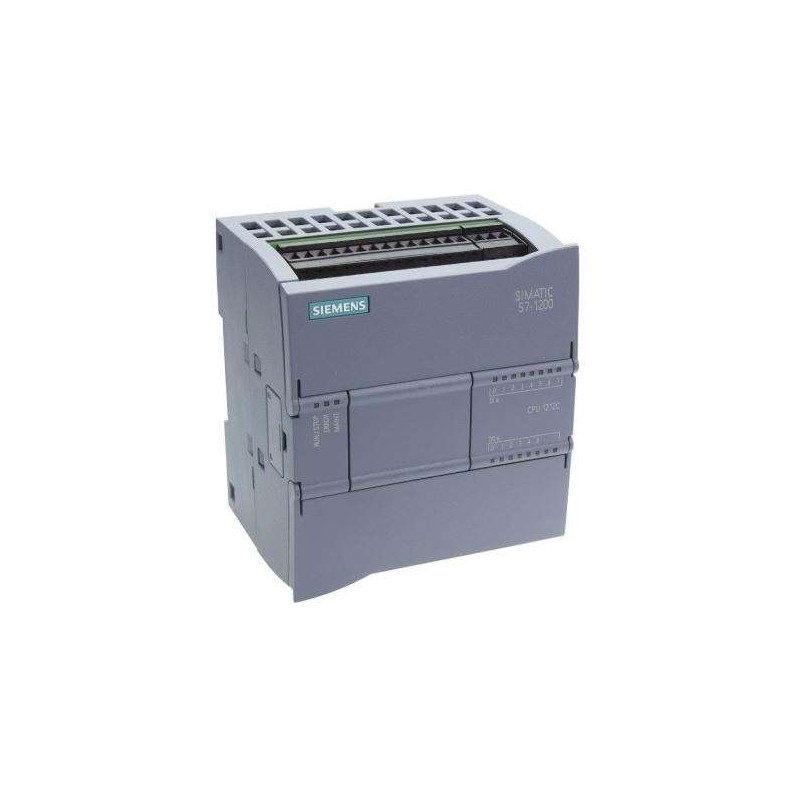

Siemens 6ES7211-1HE40-0XB0 CPU 1211C

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-1200 CPU 1211C (6ES7211-1HE40-0XB0) – Compact, high-performance PLC for entry-level to mid-range automation tasks.
Integrated I/O: 6x Digital Inputs (24V DC), 4x Relay Outputs (2A), and 2x Analog Inputs (0-10V DC).
Onboard PROFINET interface for seamless integration into industrial networks and TIA Portal programming.
50 KB program/data memory with flash-based load memory for reliable, non-volatile operation.
Compact, space-saving design ideal for small control cabinets and machinery.
Supports TIA Portal V13+ with multiple programming languages (LAD, FBD, SCL, IL, GRAPH).
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SIEMENS SIMATIC S7-1200 CPU 1211C (6ES7211-1HE40-0XB0) is a compact yet powerful controller engineered for precise real-time control in industrial automation environments. This CPU variant features a balanced combination of onboard digital and analog I/O, making it an excellent choice for small to medium-sized applications such as packaging machines, conveyor systems, and process monitoring stations. With its integrated PROFINET interface and support for the TIA Portal engineering framework, it enables rapid development, commissioning, and diagnostics, ensuring minimal downtime and maximum productivity.

Parameter	Specification
Product Type	SIMATIC S7-1200, CPU 1211C Compact CPU
Order Number	6ES7211-1HE40-0XB0
Supply Voltage	DC 20.4 – 28.8 V DC
Integrated Digital Inputs	6 DI, 24V DC, sink/source (IEC Type 1/3)
Integrated Digital Outputs	4 DO, Relay, 2A per channel
Integrated Analog Inputs	2 AI, 0 – 10V DC, 10-bit resolution
Work Memory (Program/Data)	50 KB (shared)
Load Memory	Flash-based, non-volatile (up to 2 MB with SIMATIC Memory Card)
PROFINET Interface	1x RJ45, 10/100 Mbps, supports PROFINET IO Controller
Programming Software	TIA Portal V13 SP1 or higher
Programming Languages	LAD, FBD, SCL, IL, GRAPH
Bit Operation Execution Time	Approx. 0.1 µs
Word Operation Execution Time	Approx. 12 µs
Floating Point Arithmetic	Approx. 16 µs
Real-Time Clock	Integrated, buffered
Web Server	Integrated (optional, enabled via TIA Portal)
Diagnostic Functions	LED status indicators, diagnostics buffer, integrated web server
Expandability	Up to 8 signal modules (SM) or communication modules (CM) via left-side bus
Dimensions (W x H x D)	90 x 100 x 75 mm
Weight	Approx. 380 g
Ambient Temperature (Operation)	0°C to 60°C (horizontal installation)
Protection Class	IP20
Standards	IEC 61131-2, UL, CE, cULus, RCM
