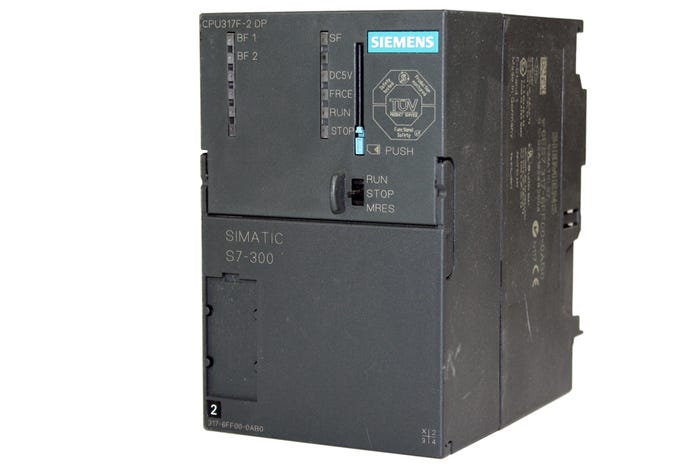

Siemens 6ES7317-6FF00-0AB0 CPU 317F-2DP

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-300, CPU 317F-2DP (6ES7317-6FF00-0AB0) – A high-performance failsafe CPU for demanding safety and process automation.
Equipped with a powerful processor and 512 KB of working memory, ideal for complex control tasks and large program blocks.
Features an integrated MPI/DP interface (12 Mbit/s) and a dedicated DP-Master/Slave interface for robust Profibus communication.
Designed for Distributed Safety applications when used with STEP 7 and the S7 Distributed Safety option, ensuring functional safety compliance.
Requires an external 24 V DC power supply and a Micro Memory Card (MMC) for load memory, offering flexible storage expansion.
Supports unlimited S7 counters and timers (limited only by RAM), with retentive memory for data persistence across power cycles.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The SIEMENS SIMATIC S7-300, CPU 317F-2DP (6ES7317-6FF00-0AB0) is a sophisticated failsafe CPU engineered for high-integrity automation systems. It excels in industries like chemical processing, electronics manufacturing, and electrical power distribution, where both high-speed logic and safety-critical functions are paramount. This CPU integrates two Profibus DP interfaces—one MPI/DP and one dedicated DP—enabling seamless communication with distributed I/O and other DP devices. Its 512 KB working memory supports large-scale programs and data handling, while the optional Distributed Safety software package allows for the implementation of safety functions up to SIL 3 according to IEC 61508. The CPU is powered by a 24 V DC supply and requires a Micro Memory Card (MMC) for program storage, ensuring reliable operation in harsh industrial environments.

Parameter	Specification
Product Type	SIMATIC S7-300, CPU 317F-2DP
Order Number	6ES7317-6FF00-0AB0
Working Memory	512 KB (for program and data)
Load Memory	Requires Micro Memory Card (MMC), capacity up to 8 MB (optional)
Retentive Memory	Available, size defined by MMC and system settings
Integrated Interfaces	1x MPI/DP (12 Mbit/s) + 1x DP-Master/Slave (12 Mbit/s)
Power Supply	24 V DC (external, range 20.4 to 28.8 V DC)
Programming Software	STEP 7 V5.2 SP1 or higher; optional S7 Distributed Safety package
Safety Standard	Up to SIL 3 (IEC 61508) with Distributed Safety option
Maximum Number of Data Blocks (DB)	Unlimited (limited by working memory)
Maximum Number of Function Blocks (FB)	Unlimited (limited by working memory)
Maximum Number of Functions (FC)	Unlimited (limited by working memory)
Organization Blocks (OB)	Standard: OB1, OB10-OB17, OB20-OB23, OB30-OB38, OB40-OB47, OB100, OB121, OB122 (plus safety-related OBs with Distributed Safety)
S7 Counters	Unlimited (limited by RAM)
S7 Timers	Unlimited (limited by RAM)
Bit Operation Time	Approx. 0.05 µs (typical)
Word Operation Time	Approx. 0.06 µs (typical)
Fixed-Point Arithmetic Time	Approx. 0.1 µs (typical)
Floating-Point Arithmetic Time	Approx. 0.3 µs (typical)
Dimensions (W x H x D)	40 x 125 x 130 mm
Weight	Approx. 290 g
Ambient Temperature (Operation)	0 °C to +60 °C
Ambient Temperature (Storage)	-40 °C to +70 °C
Protection Class	IP20
