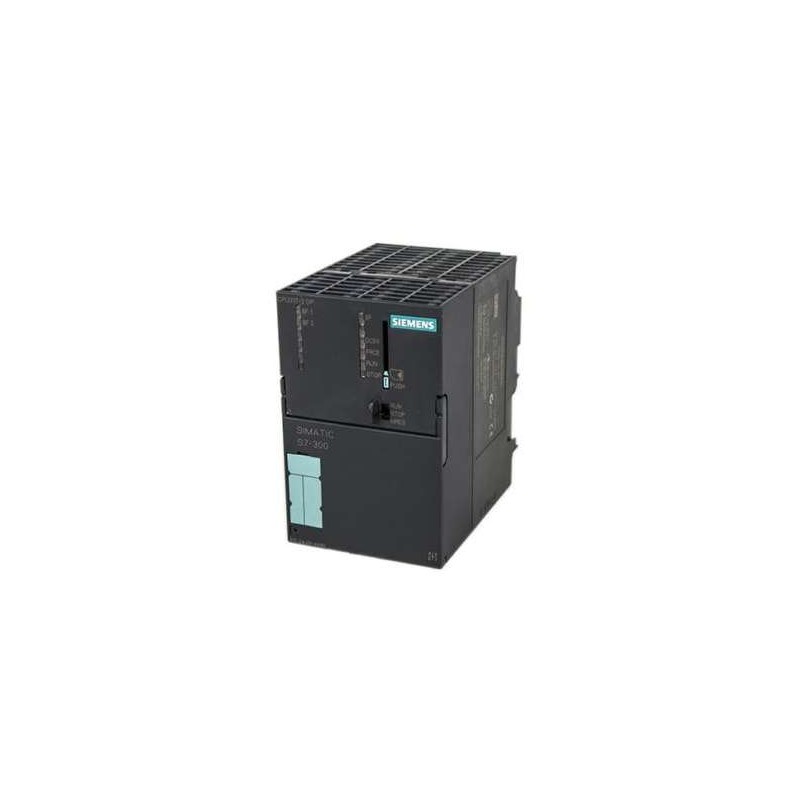

Siemens 6ES7317-2EJ10-0AB0 CPU 317-2 PN/DP

Series#: Siemens

Product Details

Product Model: SIEMENS SIMATIC S7-300 CPU 317-2 PN/DP (MLFB: 6ES7317-2EJ10-0AB0) – High-performance CPU for demanding industrial automation.
Dual-Interface Design: Integrated PROFINET (Ethernet) and MPI/DP (PROFIBUS) interfaces for flexible and high-speed communication.
Powerful Processing: 512 KB working memory, supporting bit, word, fixed-point, and floating-point arithmetic with low latency.
Modular & Scalable: Designed for the S7-300 rack system, supporting extensive I/O expansion and complex applications.
Comprehensive Programming: Fully compatible with STEP 7 V5.5 + SP1 or higher, enabling advanced program structures and diagnostics.
Robust Memory Management: Uses a Micro Memory Card (MMC) for load memory, with retentive data block support for critical process safety.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Siemens SIMATIC S7-300 CPU 317-2 PN/DP, specifically the 6ES7317-2EJ10-0AB0, is a cornerstone module for mid-to-large-scale industrial control systems. Engineered for high-speed data processing and real-time communication, this CPU integrates both a PROFINET interface for modern Ethernet-based networks and an MPI/DP interface for legacy PROFIBUS connections. With 512 KB of integrated working memory, it excels in handling complex logic, motion control, and data-intensive tasks common in the chemical, electronics, and automotive sectors. The unit is designed for 24 V DC operation and requires an external Micro Memory Card for program storage, ensuring robust performance in harsh environments.

Specification	Details
Product Type	SIMATIC S7-300, CPU 317-2 PN/DP
MLFB / Order Number	6ES7317-2EJ10-0AB0
Supply Voltage	24 V DC (19.2 V to 28.8 V)
Working Memory	512 KB
Load Memory	Micro Memory Card (MMC) required; capacity depends on MMC used (up to 8 MB supported)
Retentive Memory	Available for data blocks; configurable via STEP 7
Integrated Interfaces	1 x MPI/DP (12 Mbit/s), 1 x PROFINET (100 Mbit/s)
PROFINET Features	Real-time communication; supports RT and IRT; up to 16 PROFINET devices
MPI/DP Features	PROFIBUS DP master/slave; up to 32 nodes per DP segment
Programming Software	STEP 7 V5.5 + SP1 or higher; TIA Portal compatible (via migration)
Max. Number of DBs	1024 (limited by memory)
Max. Number of FBs / FCs	1024 each
Max. Number of OBs	Comprehensive set including OB1, OB10, OB20/21, OB30-35, OB40, OB100, OB80-87, OB121/122
S7 Counters / Timers	Unlimited (limited by RAM); retentive option available
Bit Operation Time	0.025 µs
Word / Fixed-Point Operation Time	0.04 µs
Floating-Point Operation Time	0.16 µs
Protection Class	IP20 (when installed in a suitable enclosure)
Dimensions (W x H x D)	40 mm x 125 mm x 130 mm
Weight	Approx. 290 g
Environmental Conditions	Operating: 0°C to 60°C; Storage: -40°C to +70°C; Humidity: 5% to 95% (non-condensing)
Certifications	CE, cULus, FM, ATEX (when used with approved expansion modules)
Application Areas	Chemical, electronics, automotive, water treatment, and other high-performance automation fields
