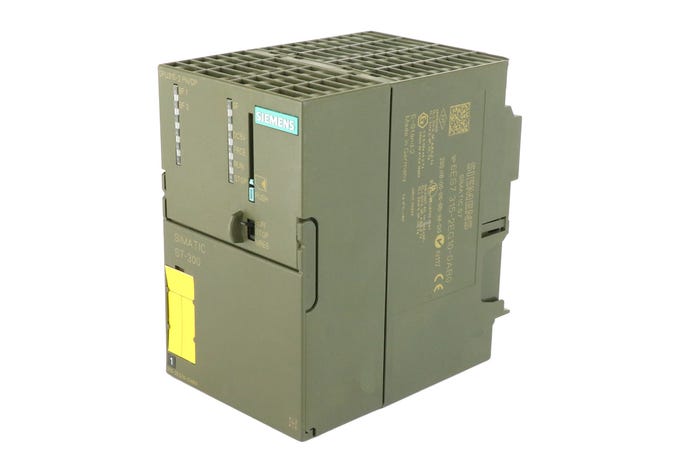

Siemens 6ES7315-2EG10-0AB0 CPU 315-2 PN/DP

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-300 CPU 315-2 PN/DP (6ES7315-2EG10-0AB0) – High-performance mid-range controller for demanding automation tasks.
Dual Communication Ports: Integrated PROFINET (Ethernet) and PROFIBUS DP/MPI interfaces for flexible networking.
128 KB Working Memory – Ample capacity for complex program logic and data handling.
Wide Industrial Application – Ideal for chemical, electronics, and manufacturing environments requiring robust control.
Easy Integration – Compatible with STEP 7 V5.5+ and standard S7-300 rack systems.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SIEMENS SIMATIC S7-300 CPU 315-2 PN/DP (6ES7315-2EG10-0AB0) is a versatile and powerful central processing unit designed to handle advanced automation requirements with precision and reliability. Featuring both a PROFINET interface for industrial Ethernet connectivity and a PROFIBUS DP/MPI interface for fieldbus communication, this CPU bridges the gap between traditional and modern network architectures. Its 128 KB of integrated working memory ensures efficient execution of complex control algorithms, while support for a Micro Memory Card (MMC) provides scalable load memory for program storage. Engineered for harsh industrial environments, it operates on a 24 V DC supply and delivers consistent performance across a wide temperature range.

Specification	Details
Product Model	6ES7315-2EG10-0AB0
Product Series	SIMATIC S7-300
CPU Type	CPU 315-2 PN/DP
Working Memory	128 KB
Load Memory	Micro Memory Card (MMC) required (not included)
Retentive Memory	Available (portion of working memory)
Integrated Interfaces	1x MPI/DP (PROFIBUS DP master/slave, 12 Mbit/s) 1x PROFINET (Ethernet, 100 Mbit/s)
Power Supply	24 V DC (19.2 V to 28.8 V)
Power Protection	External fuse recommended
Operating Temperature	0 °C to 60 °C (standard)
Programming Software	STEP 7 V5.5 + SP1 or higher
Bit Operation Time	0.1 µs (typical)
Word Operation Time	0.2 µs (typical)
Fixed-Point Arithmetic Time	0.5 µs (typical)
Floating-Point Arithmetic Time	1.0 µs (typical)
Max. Number of Data Blocks (DBs)	Unlimited (limited by RAM)
Max. Number of Function Blocks (FBs)	Unlimited (limited by RAM)
Max. Number of Functions (FCs)	Unlimited (limited by RAM)
Organization Blocks (OBs)	OB1, OB10-OB17, OB30-OB38, OB80-OB87, and others
S7 Counters	Unlimited (limited by RAM, retentive)
S7 Timers	Unlimited (limited by RAM, retentive)
Dimensions (W x H x D)	80 mm x 125 mm x 130 mm
Weight	Approx. 0.5 kg
Application Areas	Chemical, electronics, electrical, and general industrial automation
