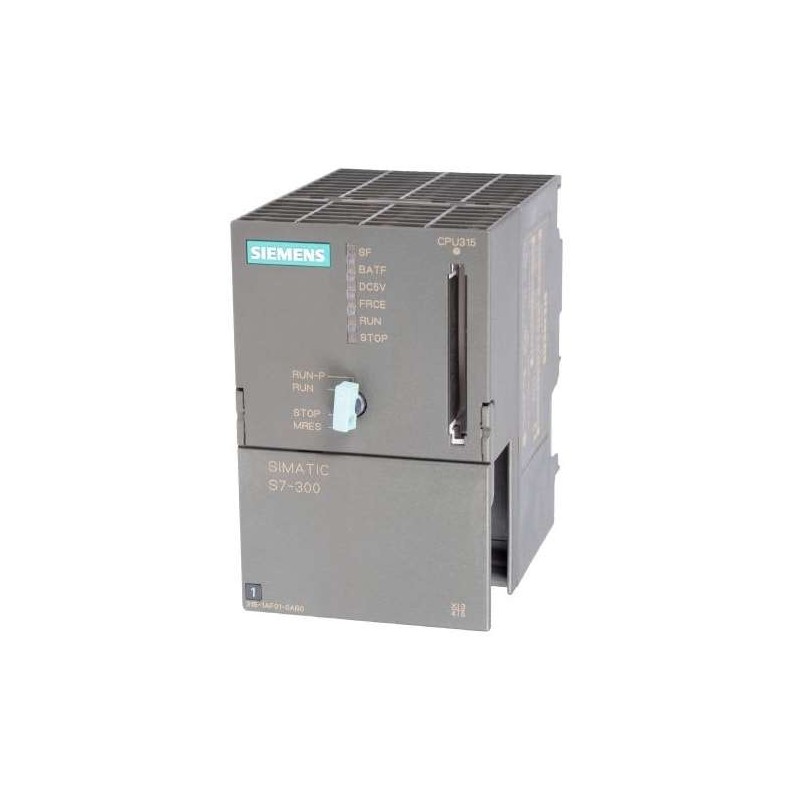

The SIEMENS SIMATIC S7-300 CPU 315, with order number 6ES7315-1AF01-0AB0, is a robust and versatile PLC designed for mid-to-high-end industrial automation applications. It features a compact design with an integrated 24 V DC power supply, making it ideal for space-constrained control cabinets. With 48 KByte of working memory, this CPU can handle complex logic, motion control, and data processing tasks efficiently. It supports a wide range of communication interfaces, including MPI, and can be programmed using STEP 7 V5.5 or higher. The CPU 315 is engineered for reliability and performance, ensuring seamless integration into existing S7-300 systems.
| Specification |
Details |
| Product Type |
SIMATIC S7-300 CPU 315 |
| Order Number |
6ES7315-1AF01-0AB0 |
| Power Supply |
Integrated 24 V DC (19.2 V to 28.8 V) |
| Working Memory |
48 KByte |
| Load Memory |
MMC (MultiMediaCard) required, max. 8 MByte |
| Retentive Memory |
Yes (for data blocks, timers, counters) |
| Interfaces |
MPI (Multi-Point Interface) – up to 12 Mbit/s |
| Programming Software |
STEP 7 V5.5 + SP1 or higher |
| Arithmetic Processing Times |
Bit: 0.1 µs; Word: 0.2 µs; Fixed-Point: 2 µs; Floating-Point: 3 µs |
| Number of Data Blocks (DBs) |
Max. 1024, each up to 16 KByte |
| Number of Function Blocks (FBs) |
Max. 1024 |
| Number of Functions (FCs) |
Max. 1024 |
| Number of Organization Blocks (OBs) |
Max. 128 |
| Number of S7 Timers |
Unlimited (limited by RAM) |
| Number of S7 Counters |
Unlimited (limited by RAM) |
| Retentivity |
Yes – timers, counters, and data blocks retain values across power cycles |
| Operating Temperature |
0°C to +60°C (vertical) / 0°C to +40°C (horizontal) |
| Dimensions (W x H x D) |
40 mm x 125 mm x 130 mm |
| Weight |
Approx. 290 g |
