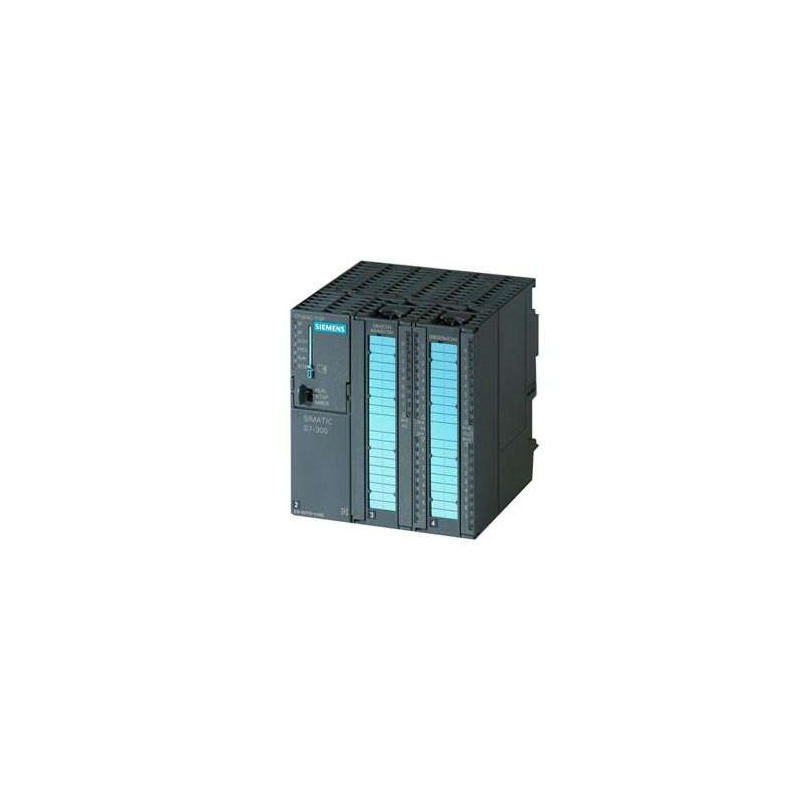

The Siemens SIMATIC S7-300 CPU 314C-2DP COMPACT, identified by the MLFB 6ES7314-6CF02-0AB0, is a powerful and highly integrated central processing unit designed for demanding mid-range automation tasks. This compact CPU combines a robust processor with a rich set of onboard digital and analog I/O, along with dual communication interfaces, making it an exceptional choice for space-constrained applications requiring distributed control. Engineered for reliability and performance, the CPU 314C-2DP excels in environments where precise control and fast data exchange are critical, such as chemical processing, electronics manufacturing, and electrical power distribution systems.
| Specification |
Detail |
| Product Type |
SIMATIC S7-300 Compact CPU |
| Model Number |
CPU 314C-2DP |
| MLFB / Order Number |
6ES7314-6CF02-0AB0 |
| Working Memory |
64 KB |
| Load Memory |
Micro Memory Card (MMC) – configurable size |
| Retentive Memory |
Configurable based on working memory allocation |
| Digital Inputs (DI) |
24 (integrated) |
| Digital Outputs (DO) |
16 (integrated) |
| Analog Inputs (AI) |
4 (integrated) |
| Analog Outputs (AO) |
2 (integrated) |
| PT100 Input |
1 (integrated, for temperature measurement) |
| Fast Counters |
4 channels, 60 KHz each |
| Communication Interface 1 |
MPI (Multi-Point Interface) |
| Communication Interface 2 |
PROFIBUS DP (DP master/slave) |
| Power Supply Voltage |
24 V DC (19.2 V to 28.8 V) |
| Front Connector |
X40PIN |
| Programming Software |
STEP 7 V5.5 + SP1 or higher |
| Program Blocks (Max) |
DBs, FBs, FCs, OBs (configurable based on memory) |
| Timers / Counters |
S7 Timers and Counters (integrated, retentive) |
| Ambient Temperature (Operation) |
0 °C to 60 °C |
| Ambient Temperature (Storage) |
-40 °C to 70 °C |
| Protection Class |
IP20 (with enclosure) |
| Dimensions (W x H x D) |
80 mm x 125 mm x 130 mm |
| Weight |
Approx. 290 g |
