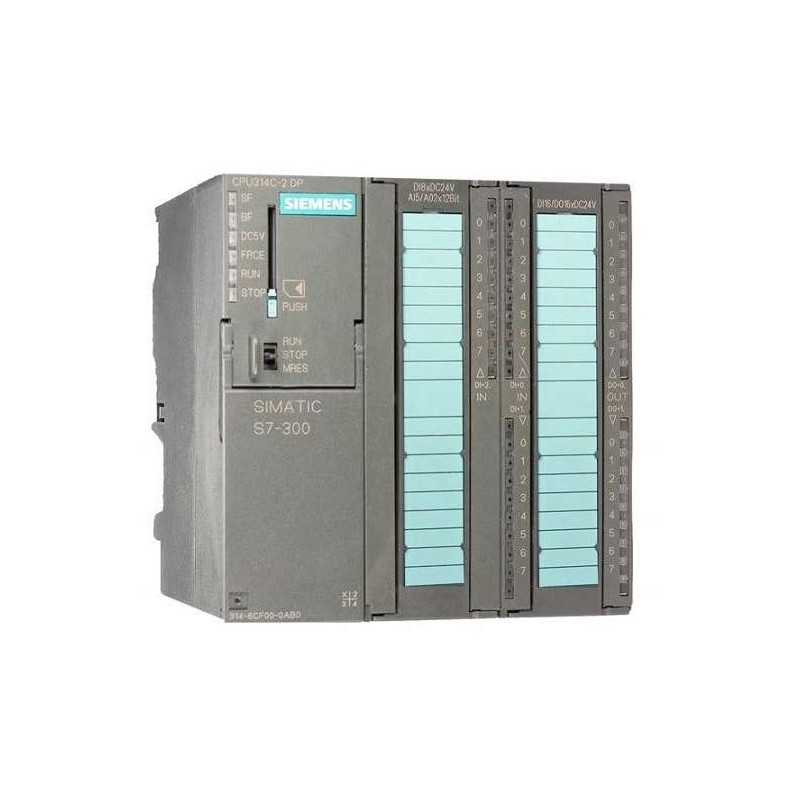

SIEMENS SIMATIC S7-300 CPU 314C-2DP Compact (6ES7314-6CF00-0AB0) – a high-performance, integrated controller for demanding industrial automation tasks.
Integrated I/O: 24 DI, 16 DO, 4 AI, 2 AO, and 1 Pt100 input – eliminates the need for separate modules in many applications.
Dual communication interfaces: MPI for local programming and PROFIBUS DP for high-speed distributed I/O networking.
48 KB of working memory and support for high-speed counters (up to 60 kHz) for precision timing and counting operations.
Fully compatible with STEP 7 V5.5+ SP1 or higher for seamless programming and diagnostics.
Rugged, compact design ideal for chemical, electronics, and electrical systems requiring reliable control.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Siemens SIMATIC S7-300 CPU 314C-2DP Compact (6ES7314-6CF00-0AB0) is a powerful, all-in-one controller designed for mid-range automation applications that require a high degree of integration and communication flexibility. This CPU combines a robust processing core with an extensive set of onboard I/O and dual interface capabilities, including an MPI port for local operator panels and programming, and a PROFIBUS DP interface for high-speed fieldbus communication with remote I/O stations and drives. Its compact form factor, 48 KB working memory, and support for fast counters make it an ideal choice for applications in chemical processing, packaging, material handling, and machine building where space is at a premium but performance cannot be compromised.

Parameter	Specification
Product Type	Compact CPU with integrated I/O and PROFIBUS DP
Model	CPU 314C-2DP (6ES7314-6CF00-0AB0)
Power Supply	24 V DC (19.2 V to 28.8 V)
Working Memory	48 KB (for program and data)
Load Memory	Micro Memory Card (MMC) required (not included); supports up to 8 MB
Retentive Memory	Yes, configurable up to 10 KB (for data blocks, timers, counters)
Digital Inputs (DI)	24 (24 V DC, sink/source)
Digital Outputs (DO)	16 (24 V DC, 0.5 A per channel)
Analog Inputs (AI)	4 (0-10 V, 0-20 mA, or 4-20 mA; resolution 13 bits + sign)
Analog Outputs (AO)	2 (0-10 V or 0-20 mA; resolution 11 bits + sign)
Pt100 Input	1 (for direct temperature measurement, 3-wire)
Communication Interface 1	MPI (RS-485, up to 187.5 kbps, for programming and HMI)
Communication Interface 2	PROFIBUS DP (RS-485, up to 12 Mbps, for distributed I/O)
High-Speed Counters	4 (up to 60 kHz each, configurable as incremental encoder inputs)
Execution Time (Bit Operations)	0.1 µs per instruction (typical)
Program Blocks (max.)	Unlimited (limited only by memory); supports OB, FB, FC, DB, SDB
Organization Blocks (OBs)	OB1 (cyclic), OB10-17 (time-of-day), OB20-23 (time delay), OB35 (cyclic interrupt), OB40-47 (hardware interrupt), OB80-87 (error handling), OB100 (warm restart), OB102 (cold restart)
Counters (S7)	Unlimited (retentive, up to 10 KB for retentive data)
Timers (S7)	Unlimited (retentive, up to 10 KB for retentive data)
Programming Software	STEP 7 V5.5 + SP1 or higher; also compatible with TIA Portal (via migration)
Operating Temperature	0 °C to +60 °C (horizontal installation); 0 °C to +40 °C (vertical)
Storage Temperature	-40 °C to +70 °C
Protection Class	IP20 (for use in control cabinets)
Dimensions (W x H x D)	80 mm x 125 mm x 130 mm
Weight	Approx. 0.5 kg
