Siemens 6ES7314-6BF02-0AB0 CPU 314C-2 PTP

Series#: Siemens

Product Details

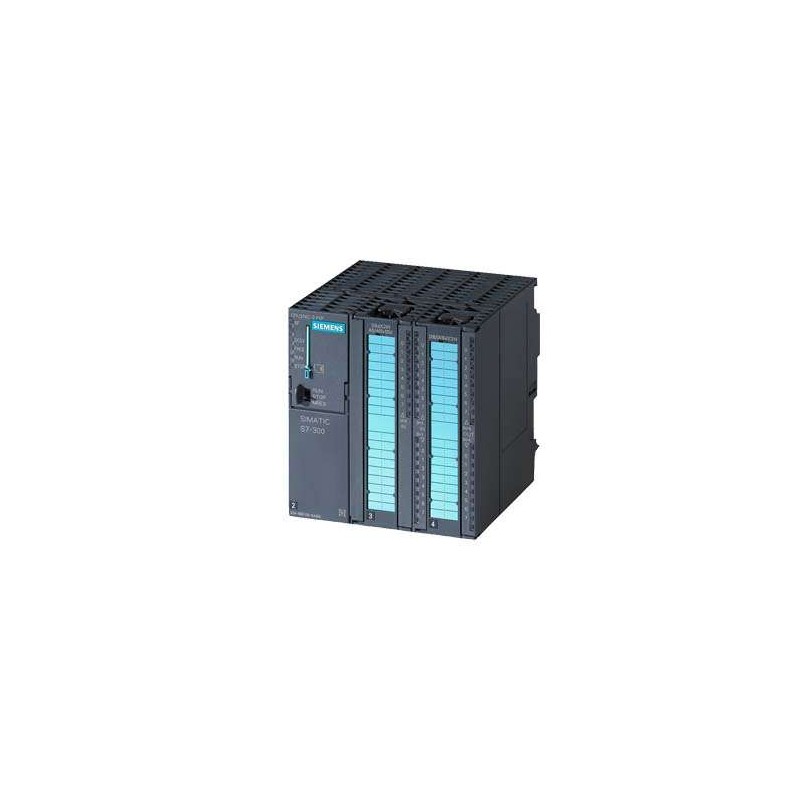

SIEMENS SIMATIC S7-300 CPU 314C-2 PTP (6ES7314-6BF02-0AB0) – a compact, high-performance CPU with integrated I/O and MPI for mid-range automation tasks.
Features 24 DI, 16 DO, 4 AI, 2 AO, and 1 PT100 input – eliminates the need for separate I/O modules in space-constrained panels.
Integrated MPI and RS485 PTP interfaces – enables seamless communication with HMIs, drives, and other S7-300 stations.
64 KB working memory with support for Micro Memory Cards – sufficient for complex logic and data logging.
4 high-speed counters (60 kHz) – ideal for precise motion control, frequency measurement, and encoder interfaces.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SIEMENS SIMATIC S7-300 CPU 314C-2 PTP (order number 6ES7314-6BF02-0AB0) is a compact yet powerful CPU designed for demanding automation applications requiring both integrated I/O and flexible point-to-point communication. Equipped with a built-in MPI interface and an RS485 PTP port, this CPU excels in distributed control systems where direct serial exchange with drives, barcode scanners, or other controllers is essential. Its integrated digital and analog I/O, along with a PT100 temperature sensor input, make it a self-contained solution for small to medium-sized machines, reducing wiring and cabinet space. The CPU supports a wide range of programming blocks and high-speed counters, ensuring reliable performance in industries such as chemical processing, electronics manufacturing, and general machinery.

Attribute	Specification
Product Type	SIMATIC S7-300 CPU 314C-2 PTP Compact CPU
Order Number	6ES7314-6BF02-0AB0
Working Memory	64 KB
Micro Memory Card Required	Yes (for user program and data storage)
Integrated Digital Inputs	24 DI (24 V DC)
Integrated Digital Outputs	16 DO (24 V DC, 0.5 A each)
Integrated Analog Inputs	4 AI (0–10 V / 0–20 mA, 12-bit)
Integrated Analog Outputs	2 AO (0–10 V / 0–20 mA, 12-bit)
Integrated PT100 Input	1 (for temperature measurement)
Integrated Interfaces	MPI (up to 187.5 kbps) + RS485 PTP (up to 115.2 kbps)
Power Supply	24 V DC (19.2–28.8 V)
Front Connectors	2 x 40-pin
High-Speed Counters	4 x 60 kHz
Programming Software	STEP 7 V5.5 + SP1 or higher
Max. Number of Data Blocks (DBs)	Limited by memory (typically > 1000)
Max. Number of Function Blocks (FBs)	Limited by memory (typically > 1000)
Max. Number of Functions (FCs)	Limited by memory (typically > 1000)
Organization Blocks (OBs)	OB1, OB10–OB17, OB20–OB23, OB30–OB38, OB40–OB47, OB80–OB87, OB100, OB121, OB122
S7 Counters	Unlimited (RAM-based, retentive)
S7 Timers	Unlimited (RAM-based, retentive)
Dimensions (W x H x D)	80 x 125 x 130 mm
Weight	Approx. 0.6 kg
Operating Temperature	0 °C to +60 °C
Storage Temperature	-40 °C to +70 °C
Protection Class	IP20
