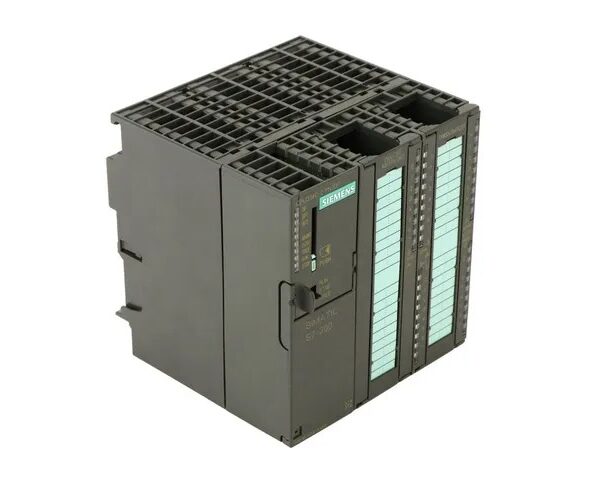

The Siemens SIMATIC S7-300 CPU 314C-2 PTP Compact (MLFB: 6ES7314-6BF01-0AB0) is a versatile, integrated controller designed for mid-range automation systems requiring high I/O density and robust communication capabilities. This compact CPU combines a powerful processor with onboard digital and analog I/O, including a dedicated PT100 input for temperature sensing, making it ideal for applications in chemical, electronics, and electrical industries. Its integrated MPI and RS485 interfaces enable seamless programming and point-to-point serial communication with peripheral devices. With 48 KB of working memory and support for MMC load memory, it offers flexible program storage and execution. The CPU 314C-2 PTP also features four high-speed counters at 60 kHz, ensuring precise timing and counting for complex control loops. Engineered for reliability and performance, this unit is a core component for modern industrial automation.
| Specification |
Details |
| Product Type |
SIMATIC S7-300 CPU 314C-2 PTP Compact |
| Order Number (MLFB) |
6ES7314-6BF01-0AB0 |
| Working Memory |
48 KB (for program and data) |
| Load Memory |
Micro Memory Card (MMC) required, up to 8 MB (not included) |
| Integrated Digital Inputs |
24 DI (24 V DC) |
| Integrated Digital Outputs |
16 DO (24 V DC, 0.5 A each) |
| Integrated Analog Inputs |
4 AI (0-10 V, 0/4-20 mA, or PT100) |
| Integrated Analog Outputs |
2 AO (0-10 V or 0/4-20 mA) |
| Special I/O |
1 PT100 temperature sensor input (via analog input channel) |
| Fast Counters |
4 (up to 60 kHz each) |
| Communication Interface 1 |
MPI (for programming and HMI, up to 187.5 kbps) |
| Communication Interface 2 |
RS485 (PTP, for serial communication) |
| Power Supply |
24 V DC (19.2 V to 28.8 V) |
| Front Connector |
2 x 40-pin (for I/O and power wiring) |
| Programming Software |
STEP 7 V5.5 + SP1 or higher |
| Dimensions (W x H x D) |
80 mm x 125 mm x 120 mm |
| Weight |
Approx. 390 g |
| Operating Temperature |
0 °C to 60 °C (horizontal installation) |
| Storage Temperature |
-40 °C to 70 °C |
| Protection Class |
IP20 |
| Max. Number of Modules |
8 (including CPU and I/O modules) |
| Max. Number of Data Blocks (DBs) |
Unlimited (limited by RAM) |
| Max. Number of Function Blocks (FBs) |
Unlimited (limited by RAM) |
| Max. Number of Functions (FCs) |
Unlimited (limited by RAM) |
| S7 Timers |
Unlimited (limited by RAM, retentive) |
| S7 Counters |
Unlimited (limited by RAM, retentive) |
