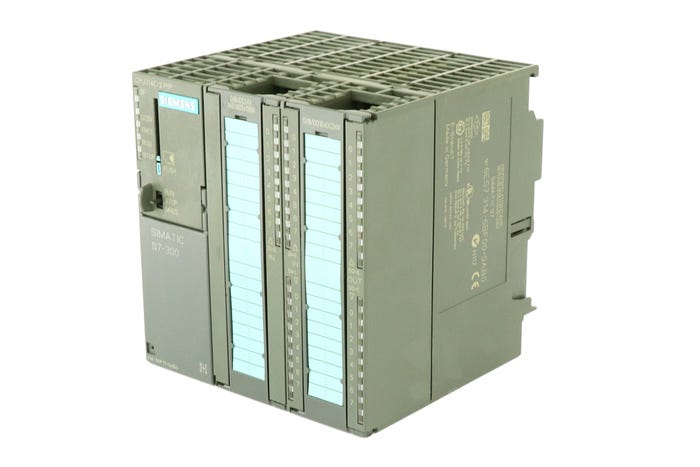

The SIEMENS SIMATIC S7-300 CPU 314C-2 PTP (order number 6ES7314-6BF00-0AB0) is a versatile compact CPU that combines a powerful processor, integrated digital and analog I/O, and a dedicated point-to-point (PTP) serial interface for direct device communication. This CPU is engineered for mid-range automation applications requiring a compact footprint, high-speed counting, and flexible connectivity via MPI. Its integrated PT100 input eliminates the need for an external temperature module, reducing system cost and panel space. Built on the proven S7-300 platform, it offers seamless integration with STEP 7 programming environments and supports a wide range of industrial protocols.
| Specification |
Details |
| Product Type |
Compact CPU with MPI and PTP interface |
| Model |
CPU 314C-2 PTP |
| Order Number |
6ES7314-6BF00-0AB0 |
| Series |
SIMATIC S7-300 |
| Working Memory |
48 KB (integrated) |
| Load Memory |
Micro Memory Card (MMC) required (up to 8 MB, depending on MMC) |
| Retentive Memory |
Supported via MMC; size depends on MMC capacity |
| Digital Inputs |
24 (integrated) |
| Digital Outputs |
16 (integrated) |
| Analog Inputs |
4 (integrated, voltage/current) |
| Analog Outputs |
2 (integrated, voltage/current) |
| Special Input |
1 PT100 (temperature sensor, 4-wire) |
| High-Speed Counters |
4 (up to 60 kHz each) |
| Interfaces |
1x MPI (PROFIBUS DP-capable), 1x RS485 (PTP, serial) |
| Power Supply |
Integrated 24 V DC (19.2 V to 28.8 V range) |
| Programming Software |
STEP 7 V5.5 + SP1 or higher; STEP 7 V5.2 + SP1 with HSP 218 |
| Program Blocks |
Up to 1024 DBs, 512 FBs, 512 FCs (subject to memory) |
| Counters / Timers |
Unlimited (limited by RAM); S7 counters and timers with retentive capability |
| Operating Temperature |
0 °C to 60 °C (standard) |
| Dimensions (W x H x D) |
40 x 125 x 130 mm (approx.) |
| Weight |
Approx. 290 g |
