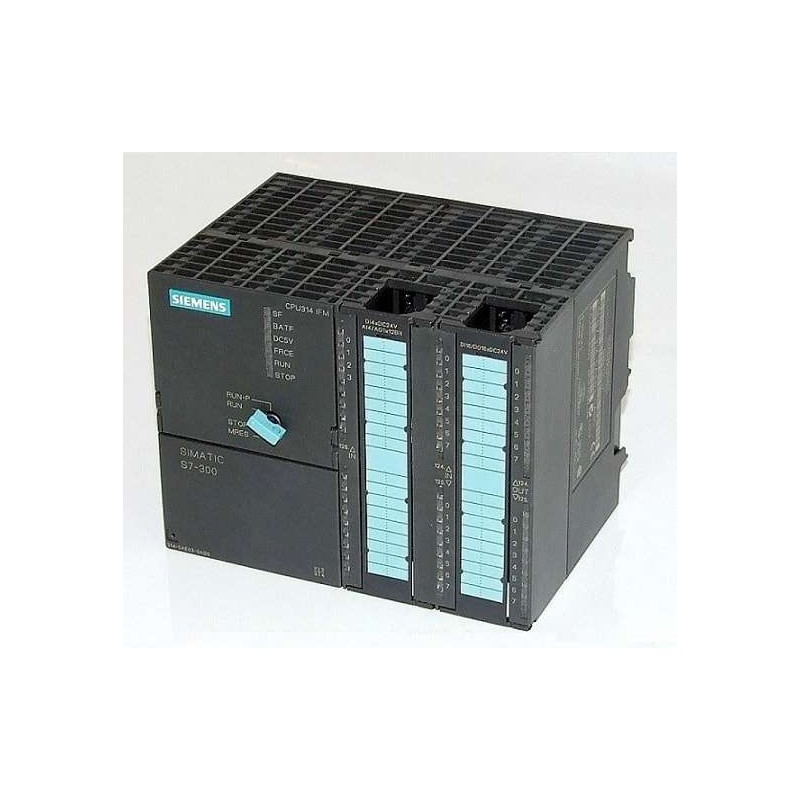

Siemens 6ES7314-5AE83-0AB0 CPU 314 IFM

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-300 CPU 314 IFM COMPACT WITH SLOT F (6ES7314-5AE83-0AB0) – A high-performance, compact CPU with integrated I/O for demanding automation tasks.
Features 16 digital inputs, 16 digital outputs, 4 analog inputs, and 1 analog output for versatile control without extra modules.
Equipped with a dedicated Slot F for plug-in expansion modules (e.g., communication processors) to enhance system flexibility.
Supports programming via STEP 7 V5.5+ with MPI interface, offering reliable connectivity for distributed systems.
Expanded temperature range (-25°C to +70°C) for operation in harsh industrial environments.
32 KByte working memory and fast processing (0.1 µs per bit operation) for real-time control applications.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Siemens SIMATIC S7-300 CPU 314 IFM COMPACT with Slot F (MLFB: 6ES7314-5AE83-0AB0) is a rugged, all-in-one CPU designed for mid-range automation tasks where space is at a premium. Integrating a powerful processor with a rich set of onboard I/O, this unit eliminates the need for separate I/O modules in many applications, while the exclusive Slot F allows for future expansion via communication or function modules. Built for extended temperature ranges, it excels in chemical, electronics, and process control environments where reliability and compactness are paramount.

Parameter	Specification
Product Type	CPU 314 IFM COMPACT with Slot F
Order Number (MLFB)	6ES7314-5AE83-0AB0
Series	SIMATIC S7-300
Power Supply Voltage	24 V DC (19.2 V to 28.8 V)
Working Memory	32 KByte
Load Memory	Internal flash (expandable via optional MMC)
Retentive Memory	Configurable from working memory
Digital Inputs (integrated)	16 DI (24 V DC)
Digital Outputs (integrated)	16 DO (24 V DC, 0.5 A each)
Analog Inputs (integrated)	4 AI (0-10 V, 0-20 mA, or 4-20 mA)
Analog Outputs (integrated)	1 AO (0-10 V or 0-20 mA)
Interface	1 x MPI (RS-485) – 12 Mbit/s max
Expansion Slot (Slot F)	Yes – for one plug-in module (e.g., CP 340, FM 350-1)
I/O Connectors	2 x 40-pin front connectors (included)
Bit Operation Time	0.1 µs
Word Operation Time	0.24 µs
Fixed-Point Arithmetic Time	0.32 µs
Floating-Point Arithmetic Time	1.1 µs
Programming Software	STEP 7 V5.5 + SP1 or higher
Program Blocks	OBs: OB1, OB10, OB20/21, OB32-35, OB40, OB100, OB80/82/85/87, OB121/122; FBs/FCs: unlimited (RAM-limited); DBs: unlimited (RAM-limited)
Counters / Timers	S7 Counters: unlimited (RAM-limited); S7 Timers: unlimited (RAM-limited)
Ambient Temperature (Operation)	-25°C to +70°C (expanded range)
Ambient Temperature (Storage)	-40°C to +85°C
Dimensions (W x H x D)	80 mm x 125 mm x 130 mm
Weight	Approx. 0.6 kg
Protection Class	IP20
Certifications	CE, cULus, ATEX (Zone 2), FM (Class I, Div. 2)
