Siemens 6ES7314-5AE10-0AB0 CPU 314 IFM

Series#: Siemens

Product Details

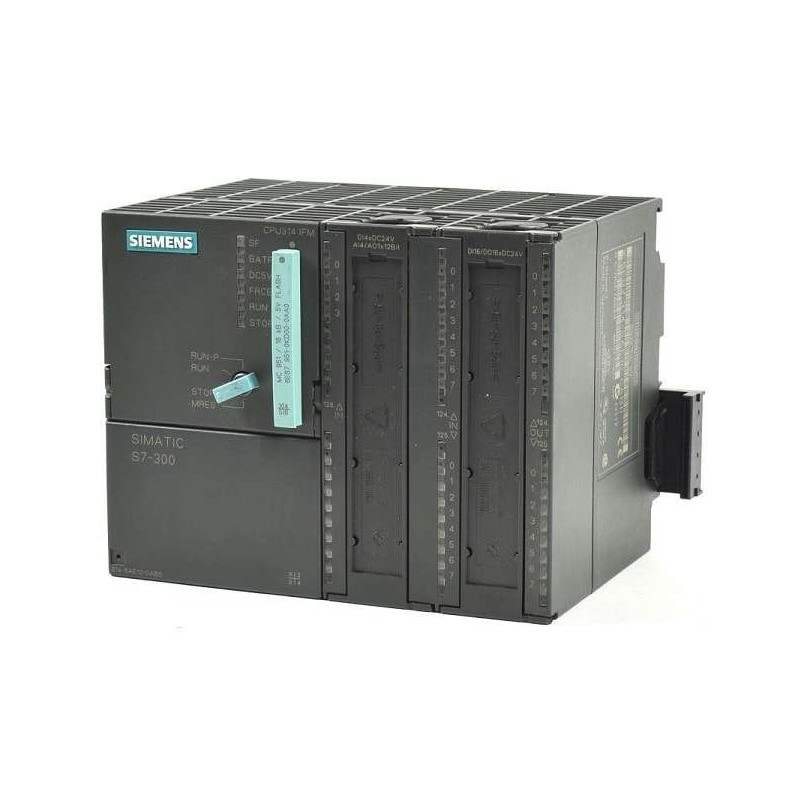

Siemens SIMATIC S7-300 CPU 314 IFM Compact with Slot F (6ES7314-5AE10-0AB0) – a powerful, integrated I/O CPU for demanding mid-range automation tasks.
Features 16 DI, 16 DO, 4 AI, and 1 AO on-board, eliminating the need for separate I/O modules in compact applications.
Integrated Slot F allows direct addition of a communication or function module for enhanced flexibility.
32 KB working memory and lightning-fast processing: bit operations in just 0.1 µs.
Programmed via STEP 7 V5.5+ with unlimited counters/timers (RAM-limited), ideal for chemical, electronics, and process industries.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Siemens SIMATIC S7-300 CPU 314 IFM Compact with Slot F, order number 6ES7314-5AE10-0AB0, is a highly integrated central processing unit designed for industrial environments where space and wiring efficiency are critical. Combining a powerful 32 KB working memory with a rich set of onboard digital and analog I/O, this CPU eliminates the need for separate I/O modules in many standalone or distributed control systems. Its dedicated Slot F provides a direct expansion path for adding a single communication or technology module, such as a CP 340 or FM 350-1, making it exceptionally versatile for mid-range automation projects in the chemical, electronics, and process control sectors. The unit is fully compatible with the STEP 7 engineering framework and supports an extensive range of organization blocks for precise real-time task scheduling.

Specification	Detail
Product Type	SIMATIC S7-300 CPU 314 IFM Compact with Slot F
Order Number (MLFB)	6ES7314-5AE10-0AB0
Working Memory	32 KB
Load Memory	Internal flash (expandable via MMC, not included)
Retentive Memory	Configurable from working memory
Integrated Digital Inputs	16 DI (24 V DC)
Integrated Digital Outputs	16 DO (24 V DC, 0.5 A)
Integrated Analog Inputs	4 AI (0-10 V, 0-20 mA, 4-20 mA, etc.)
Integrated Analog Output	1 AO (0-10 V, 0-20 mA, 4-20 mA)
Interface	1 x MPI (RS-485, up to 12 Mbit/s)
Expansion Slot	1 x Slot F (for communication or technology module)
Connectors	2 x 40-pin front connectors (included)
Power Supply	24 V DC (19.2 V to 28.8 V)
Bit Operation Time	0.1 µs
Word Operation Time	0.24 µs
Fixed-Point Arithmetic Time	0.32 µs
Floating-Point Arithmetic Time	1.1 µs
Max. Number of Data Blocks (DBs)	Limited by memory (e.g., up to ~511 typical)
Max. Number of Function Blocks (FBs)	Limited by memory (e.g., up to ~512 typical)
Max. Number of Functions (FCs)	Limited by memory (e.g., up to ~512 typical)
Organization Blocks (OBs) Supported	OB1, OB10, OB20, OB21, OB32, OB33, OB34, OB35, OB40, OB100, OB80, OB82, OB85, OB87, OB121, OB122
S7 Counters	Unlimited (RAM-limited, retentive configurable)
S7 Timers	Unlimited (RAM-limited, retentive configurable)
Programming Software	STEP 7 V5.5 + SP1 or higher (or TIA Portal via compatible configuration)
Ambient Temperature (Operation)	0 °C to +60 °C
Ambient Temperature (Storage)	-40 °C to +70 °C
Protection Class	IP20
Dimensions (W x H x D)	80 mm x 125 mm x 120 mm (approx.)
Weight	Approx. 480 g
