Siemens 6ES7314-5AE03-0AB0 CPU 314 IFM

Series#: Siemens

Product Details

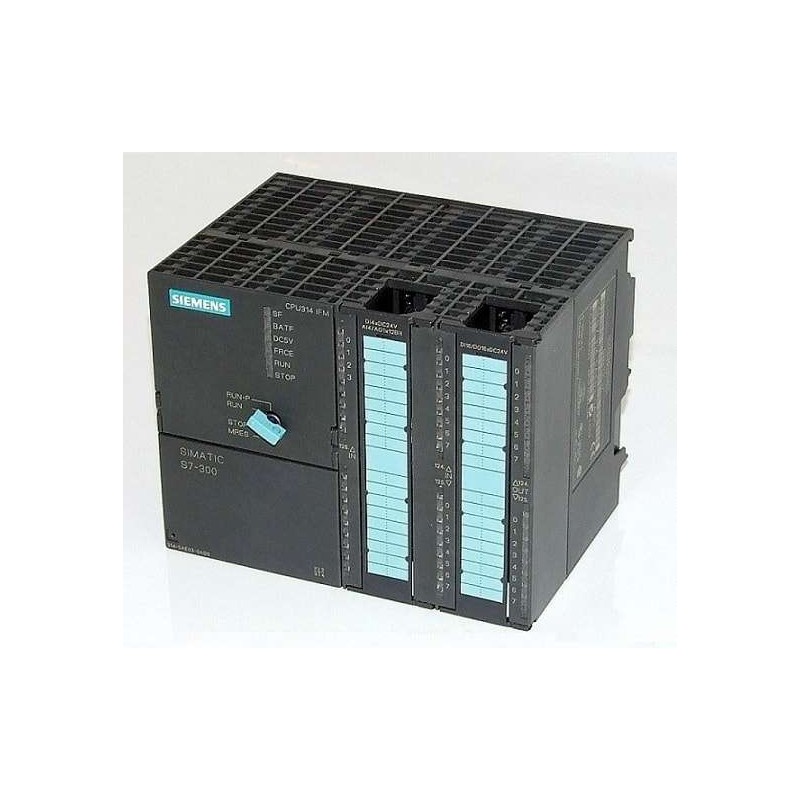

Siemens SIMATIC S7-300 CPU 314 IFM Compact with MPI (6ES7314-5AE03-0AB0) – A high-performance integrated I/O CPU for demanding automation tasks.
Features 16 DI / 16 DO / 4 AI / 1 AO built-in, eliminating the need for separate I/O modules in space-constrained applications.
Equipped with a 32 KByte working memory and a powerful processor for fast bit and word operations.
Integrated MPI interface for seamless communication with programming devices and other S7-300 stations.
Designed for chemical, electronics, process control, and general industrial automation environments requiring compact yet powerful control.
Rugged 24 V DC power supply with wide tolerance and easy-to-service 40-pin I/O connectors.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Siemens SIMATIC S7-300 CPU 314 IFM Compact with MPI (6ES7314-5AE03-0AB0) is a versatile and robust central processing unit that integrates essential I/O directly into the CPU module. This design significantly reduces panel space and wiring complexity while providing the processing power needed for mid-range automation applications. With its built-in digital and analog channels, the CPU 314 IFM is ideal for applications requiring a compact controller with local I/O, such as machine tools, packaging systems, and chemical process skids. The unit supports the full STEP 7 V5.5+ programming environment and offers unlimited counters and timers limited only by available RAM, making it a flexible and future-proof choice for system integrators and OEMs.

Parameter	Specification
Product Type	Siemens SIMATIC S7-300 CPU 314 IFM Compact with MPI
Order Number	6ES7314-5AE03-0AB0
Working Memory	32 KByte
Load Memory	Integrated flash memory (expandable via MMC)
Bit Operation Time	Approx. 0.1 µs
Word Operation Time	Approx. 0.24 µs
Fixed-Point Arithmetic Time	Approx. 0.32 µs
Floating-Point Arithmetic Time	Approx. 1.1 µs
Integrated Digital Inputs	16 (24 V DC)
Integrated Digital Outputs	16 (24 V DC, 0.5 A each)
Integrated Analog Inputs	4 (0-10 V / 0-20 mA, configurable)
Integrated Analog Output	1 (0-10 V / 0-20 mA, configurable)
Communication Interface	1 x MPI (RS-485, up to 187.5 kbps)
Power Supply	24 V DC (19.2 to 28.8 V)
I/O Connector Type	2 x 40-pin front connectors
Programming Software	STEP 7 V5.5 + SP1 or higher
Max. Number of Data Blocks (DBs)	Limited by memory (typically > 100)
Max. Number of Function Blocks (FBs)	Limited by memory (typically > 100)
Max. Number of Functions (FCs)	Limited by memory (typically > 100)
Organization Blocks (OBs) Supported	OB1, OB10, OB20/21, OB32/33/34/35, OB40, OB100, OB80/82/85/87, OB121/122
Counters	Unlimited (limited by RAM; retentive)
Timers	Unlimited (limited by RAM; retentive)
Ambient Temperature (Horizontal Mounting)	0 °C to +60 °C
Ambient Temperature (Vertical Mounting)	0 °C to +40 °C
Protection Class	IP20
Dimensions (W x H x D)	40 mm x 125 mm x 130 mm
Weight	Approx. 290 g
