Siemens 6ES7314-5AE02-0AB0 CPU 314 IFM

Series#: Siemens

Product Details

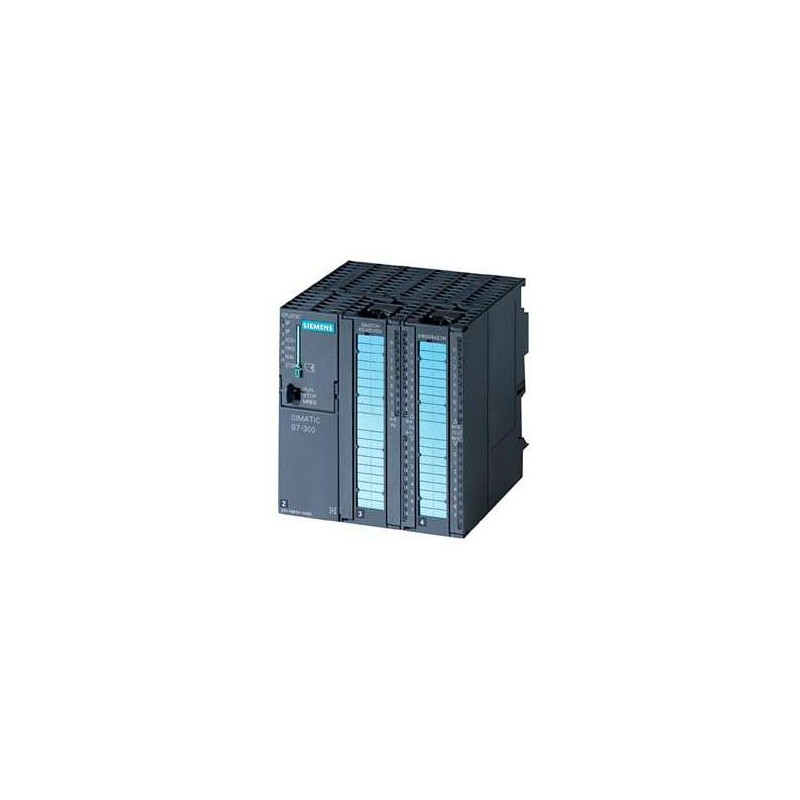

SIEMENS SIMATIC S7-300 CPU 314 IFM (6ES7314-5AE02-0AB0) – A compact, high-performance CPU with integrated I/O for demanding automation tasks.
Integrated 16 DI, 16 DO, 4 AI, and 1 AO for space-saving, all-in-one control without external modules.
24 KB working memory and robust processing for bit, word, and floating-point arithmetic operations.
Built-in MPI interface for seamless communication with S7 devices and programming tools.
Supports STEP 7 V5.5+ SP1 for flexible programming and diagnostics.
Retentive memory and extensive block library (DBs, FBs, FCs, OBs) for modular, reliable applications.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The SIEMENS SIMATIC S7-300 CPU 314 IFM (6ES7314-5AE02-0AB0) is a compact yet powerful controller engineered for mid-range industrial automation. Combining a robust CPU with integrated digital and analog I/O, this unit eliminates the need for additional modules in many applications, reducing cabinet space and wiring complexity. With 24 KB of working memory and support for up to 512 bytes of process image, it excels in real-time control tasks across chemical, electronics, and electrical sectors. The integrated MPI interface enables efficient programming and peer-to-peer communication, while the retentive memory ensures critical data persists through power cycles. Designed for reliability and ease of deployment, this CPU is a proven workhorse for demanding environments.

Specification	Details
Product Type	Compact CPU with Integrated I/O
Model Number	6ES7314-5AE02-0AB0
Series	SIMATIC S7-300
CPU Type	CPU 314 IFM
Working Memory	24 KB
Load Memory	External MultiMediaCard (MMC) or CompactFlash (capacity depends on card)
Retentive Memory	Yes (configurable for data blocks)
Integrated Digital Inputs	16 DI (24 V DC)
Integrated Digital Outputs	16 DO (24 V DC, 0.5 A)
Integrated Analog Inputs	4 AI (0–10 V, 0–20 mA, etc.)
Integrated Analog Outputs	1 AO (0–10 V, 0–20 mA)
Communication Interface	MPI (Multi-Point Interface)
Power Supply	24 V DC (19.2 V to 28.8 V)
Power Protection	External fuse recommended (e.g., 2 A)
Programming Software	STEP 7 V5.5 + SP1 or higher
Bit Operation Time	0.1 µs (typical)
Word Operation Time	0.2 µs (typical)
Fixed-Point Arithmetic Time	0.5 µs (typical)
Floating-Point Arithmetic Time	1.0 µs (typical)
Maximum Number of Data Blocks (DBs)	Up to 1024 (limited by memory)
Maximum Number of Function Blocks (FBs)	Up to 1024 (limited by memory)
Maximum Number of Functions (FCs)	Up to 1024 (limited by memory)
Organization Blocks (OBs)	OB1, OB10, OB35, OB100, OB121, OB122, etc.
S7 Counters	Unlimited (limited by RAM, retentive optional)
S7 Timers	Unlimited (limited by RAM, retentive optional)
Dimensions (W x H x D)	80 mm x 125 mm x 130 mm
Weight	Approx. 0.4 kg
Environmental Temperature (Operation)	0 °C to 60 °C
Environmental Temperature (Storage)	-40 °C to 85 °C
