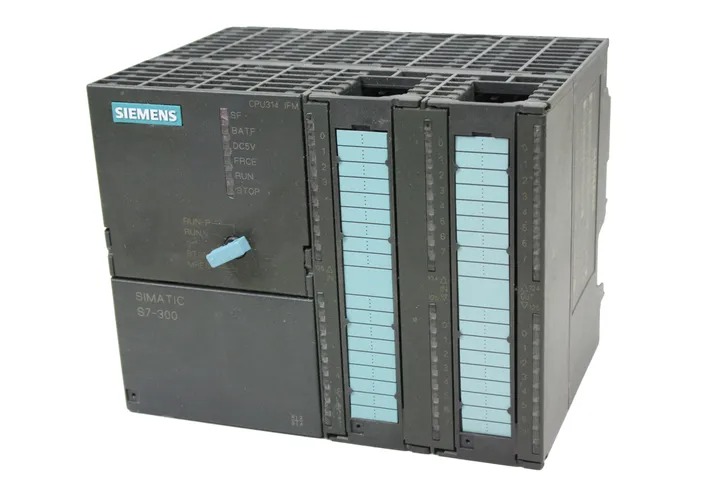

The SIEMENS SIMATIC S7-300 CPU 314 IFM COMPACT CPU with MPI (Order No. 6ES7314-5AE01-0AB0) is a robust, integrated controller designed for demanding industrial environments. Combining a central processing unit with on-board digital and analog I/O, this compact CPU eliminates the need for separate interface modules, simplifying cabinet wiring and reducing overall system cost. Its 24 KB working memory and high-speed bit processing (approx. 0.1 µs per bit operation) make it ideal for real-time control in chemical, electronics, and general automation applications. The built-in MPI port enables direct connection to programming devices and other S7-300 stations, while the integrated 24 V DC power supply (19.2 V to 28.8 V range) ensures stable operation. Backed by Siemens’ proven reliability, this unit supports up to 512 digital I/O and 64 analog I/O via expansion racks, and is fully programmable with STEP 7 V5.5+ SP1 or TIA Portal (via compatible hardware).
| Parameter |
Specification |
| Product Type |
SIMATIC S7-300 CPU 314 IFM COMPACT CPU with MPI |
| Order Number (MLFB) |
6ES7314-5AE01-0AB0 |
| Working Memory |
24 KB (approx. 8 K instructions) |
| Load Memory |
Integrated (no MMC required); expandable via optional memory card |
| Integrated Digital Inputs |
16 DI (24 V DC, sink/source) |
| Integrated Digital Outputs |
16 DO (24 V DC, 0.5 A each) |
| Integrated Analog Inputs |
4 AI (0-10 V, 0-20 mA, 4-20 mA; 12-bit resolution) |
| Integrated Analog Outputs |
1 AO (0-10 V, 0-20 mA; 12-bit resolution) |
| Communication Interface |
1 x MPI (RS-485, up to 187.5 kbps) |
| Power Supply |
Integrated 24 V DC (19.2 V to 28.8 V) |
| Bit Operation Time |
0.1 µs (typical) |
| Word Operation Time |
0.2 µs (typical) |
| Fixed-Point Arithmetic (32-bit) |
2 µs (typical) |
| Floating-Point Arithmetic (32-bit) |
3 µs (typical) |
| Max. Digital I/O (with expansion) |
512 (DI + DO) |
| Max. Analog I/O (with expansion) |
64 (AI + AO) |
| Program Blocks (max.) |
DB: 512; FB: 512; FC: 512; OB: 20+ |
| S7 Counters |
Unlimited (RAM-dependent) |
| S7 Timers |
Unlimited (RAM-dependent) |
| Retentive Memory |
5 KB (default; configurable) |
| Programming Software |
STEP 7 V5.5 + SP1 or higher; TIA Portal (via compatible hardware) |
| Dimensions (W x H x D) |
40 mm x 125 mm x 130 mm |
| Weight |
Approx. 290 g |
| Operating Temperature |
0 °C to 60 °C (horizontal mounting); 0 °C to 40 °C (vertical) |
| Protection Class |
IP20 |
