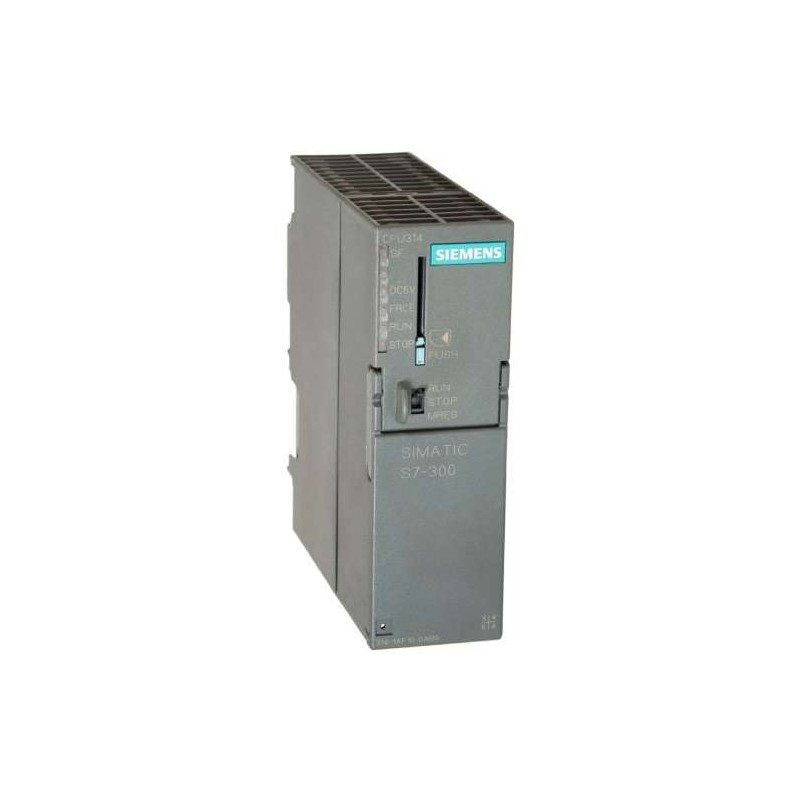

Siemens 6ES7314-1AF10-0AB0 CPU 314

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-300 CPU 314 6ES7314-1AF10-0AB0 – The proven mid-range controller for demanding industrial automation tasks.
48 KB working memory and enhanced processing power, ideal for complex applications in chemical, electronics, and electrical sectors.
Integrated MPI interface for seamless communication within the S7-300 network.
Requires Micro Memory Card (MMC) for load memory, offering flexible program storage.
Compact design for easy installation in space-constrained control cabinets.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The SIEMENS SIMATIC S7-300 CPU 314, with order number 6ES7314-1AF10-0AB0, is a high-performance central processing unit designed for medium-scale automation systems. It delivers robust processing capabilities for real-time control, making it a reliable choice for industries requiring precise and efficient operation. This CPU supports a wide range of applications, from discrete manufacturing to process control, and is engineered to work seamlessly with the S7-300 modular system. Its integrated MPI port simplifies diagnostics and programming, while the need for an external MMC ensures scalable memory for your specific project demands.

Parameter	Specification
Product Type	CPU 314
Order Number	6ES7314-1AF10-0AB0
Series	SIMATIC S7-300
Working Memory	48 KB
Load Memory	Requires Micro Memory Card (MMC) – capacity varies by card
Retentive Memory	Yes, size depends on MMC capacity
Integrated Interfaces	MPI (Multi-Point Interface)
Supply Voltage	24 V DC (19.2 V to 28.8 V range)
Power Protection	External protection recommended for power supply cables
Programming Software	STEP 7 V5.x (check latest compatibility)
Maximum Data Blocks (DBs)	Unlimited, limited only by MMC capacity
Maximum Function Blocks (FBs)	Unlimited, limited only by MMC capacity (max. 32 KB per block)
Maximum Functions (FCs)	Unlimited, limited only by MMC capacity (max. 32 KB per function)
Organization Blocks (OBs)	OB1, OB10, OB20, OB21, OB32, OB33, OB34, OB35, OB40, OB100, OB80, OB82, OB85, OB87, OB121, OB122
S7 Counters	Unlimited (limited only by RAM), retentive
S7 Timers	Unlimited (limited only by RAM), retentive
Bit Operation Time	Approximately 0.1 µs (typical)
Word Operation Time	Approximately 0.2 µs (typical)
Fixed-Point Arithmetic Time	Approximately 0.5 µs (typical)
Floating-Point Arithmetic Time	Approximately 1.0 µs (typical)
Application Areas	Chemical, Electronics, Electrical, and general industrial automation
