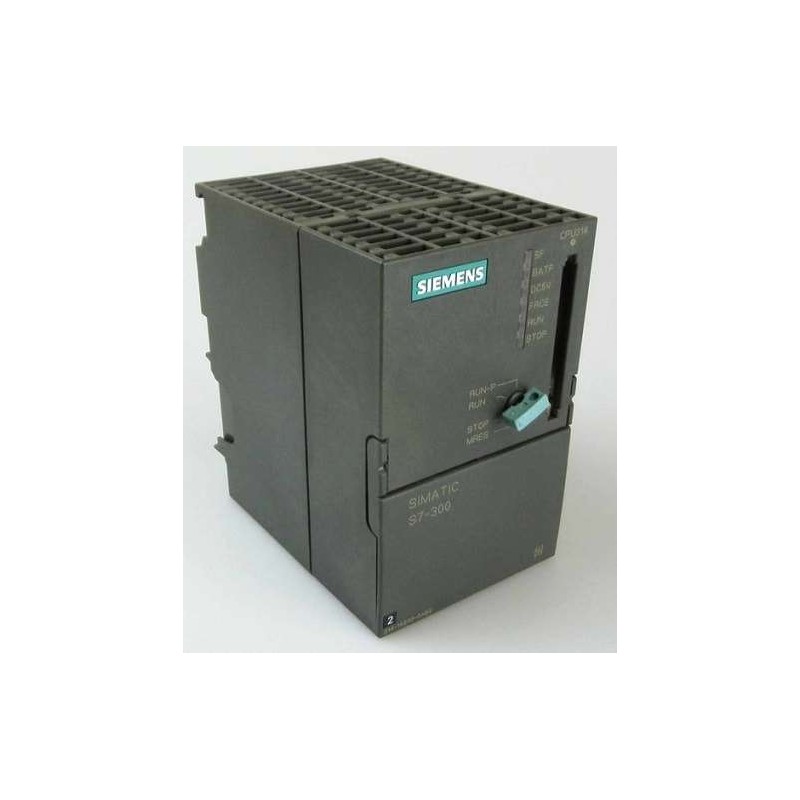

Siemens 6ES7314-1AE84-0AB0 CPU 314

Series#: Siemens

Product Details

SIEMENS SIMATIC S7-300 CPU 314 (6ES7314-1AE84-0AB0) – a powerful mid-range processor for complex automation tasks.
Equipped with 24 KB working memory and an integrated MPI interface for seamless communication.
Designed for medium to large applications in chemical, electronics, and electrical industries.
Supports STEP 7 V5.x programming environment for flexible and efficient engineering.
Features unlimited S7 counters and timers, with retentivity for robust process control.
Compact and reliable design ensures long-term performance in harsh industrial environments.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SIEMENS SIMATIC S7-300 CPU 314, model 6ES7314-1AE84-0AB0, stands as a cornerstone of industrial automation, offering a balanced blend of performance and scalability. This CPU is engineered to handle demanding control tasks, from discrete manufacturing to process industries, with a focus on reliability and efficiency. Its 24 KB working memory provides ample space for complex logic, while the integrated MPI interface enables straightforward networking with other S7-300 components and HMI systems. Whether you're upgrading an existing line or building a new system, this CPU delivers consistent, high-speed processing for critical applications.

Parameter	Specification
Product Model	6ES7314-1AE84-0AB0
Product Series	SIMATIC S7-300
CPU Type	CPU 314
Application Areas	Chemical, Electronics, Electrical, and other industrial automation fields
Integrated Interfaces	MPI (Multi-Point Interface) for communication
Power Supply	Integrated 24 V DC (range: 19.2 V to 28.8 V)
Power Protection	External protection recommended for power supply cables
Working Memory	24 KByte
Load Memory	Typically configured with external storage medium (e.g., MMC)
Retentive Memory	Available for data blocks; size depends on external storage configuration
Programming Software	STEP 7 V5.x (check latest compatibility list)
Processing Capability	Suitable for medium to large automation tasks; enhanced performance over lower-end S7-300 CPUs
Maximum Number of Data Blocks (DBs)	Limited by system configuration and external storage capacity
Maximum Number of Function Blocks (FBs)	Limited by system configuration and external storage capacity
Maximum Number of Functions (FCs)	Limited by system configuration and external storage capacity
Organization Blocks (OBs)	Includes OB1, OB10, OB20, OB21, OB32, OB33, OB34, OB35, OB40, OB100, OB80, OB82, OB85, OB87, OB121, OB122 (exact types and quantities vary by configuration)
S7 Counters	Unlimited (limited only by RAM capacity); retentive
S7 Timers	Unlimited (limited only by RAM capacity); retentive
Dimensions (Approx.)	Standard S7-300 form factor (approx. 80 x 125 x 120 mm)
Weight (Approx.)	Approx. 280 g
Operating Temperature	0 °C to 60 °C (typical)
Storage Temperature	-40 °C to 70 °C (typical)
Relative Humidity	Up to 95% (non-condensing)
Protection Class	IP20 (with appropriate enclosure)
