Siemens 6ES7314-1AE83-0AB0 CPU 314

Series#: Siemens

Product Details

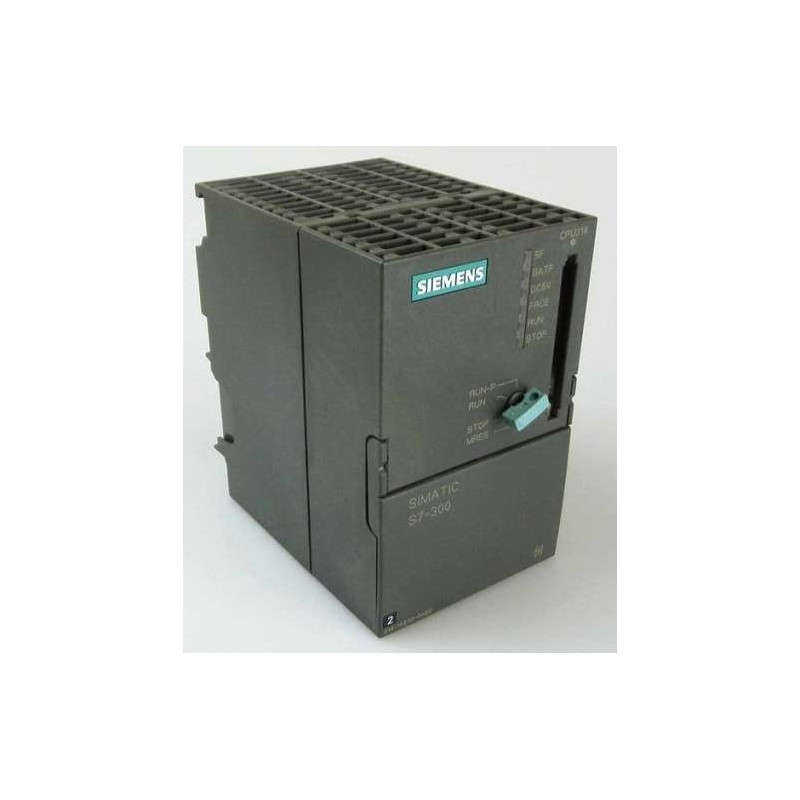

Product Model: SIEMENS SIMATIC S7-300 CPU 314, Order No. 6ES7314-1AE83-0AB0
Integrated MPI interface for seamless communication in distributed automation networks
24 KB working memory, ideal for medium to large-scale control tasks
Wide 24 V DC power supply range (19.2 V to 28.8 V) for robust industrial environments
Supports STEP 7 V5.x programming for flexible and efficient project engineering
High processing speed with unlimited counters and timers for complex logic
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The SIEMENS SIMATIC S7-300 CPU 314, specifically the 6ES7314-1AE83-0AB0, stands as a reliable workhorse for demanding industrial automation applications. Engineered for medium-scale control systems, this CPU delivers exceptional performance in chemical, electronics, and electrical sectors. With its integrated MPI interface and robust 24 V DC power supply, it ensures seamless integration into existing networks while maintaining high-speed processing for complex logic sequences. The CPU 314 is designed for longevity and precision, making it a cornerstone for modern factory automation.

Parameter	Specification
Product Type	CPU 314
Order Number	6ES7314-1AE83-0AB0
Series	SIMATIC S7-300
Working Memory	24 KByte
Load Memory	External storage medium required (e.g., MMC, not included)
Retentive Memory	Available, dependent on external storage configuration
Integrated Interfaces	MPI (Multi-Point Interface)
Power Supply Voltage	24 V DC (range: 19.2 V to 28.8 V)
Power Protection	External protection recommended for supply cables
Programming Software	STEP 7 V5.x (check latest compatibility)
Application Areas	Chemical, electronics, electrical, and other industrial automation fields
Program Blocks	Data Blocks (DBs), Function Blocks (FBs), Functions (FCs) - quantities limited by memory
Organization Blocks (OBs)	OB1, OB10, OB20/21, OB32/33/34/35, OB40, OB100, OB80/82/85/87, OB121/122
Counters	Unlimited (limited only by RAM), with retentivity
Timers	Unlimited (limited only by RAM), with retentivity
Bit Operation Time	Approximately 0.1 µs (typical for S7-300 CPUs)
Word Operation Time	Approximately 0.2 µs
Fixed-Point Arithmetic Time	Approximately 0.5 µs
Floating-Point Arithmetic Time	Approximately 1.0 µs
Dimensions (H x W x D)	125 mm x 40 mm x 130 mm (approx.)
Weight	Approximately 220 g
Ambient Temperature (Operating)	0 °C to 60 °C
Ambient Temperature (Storage)	-40 °C to 70 °C
Relative Humidity	10% to 95% (non-condensing)
Protection Class	IP20
