Siemens SIMATIC S7-300 CPU 314 6ES7314-1AE02-0AB0

Series#: Siemens

Product Details

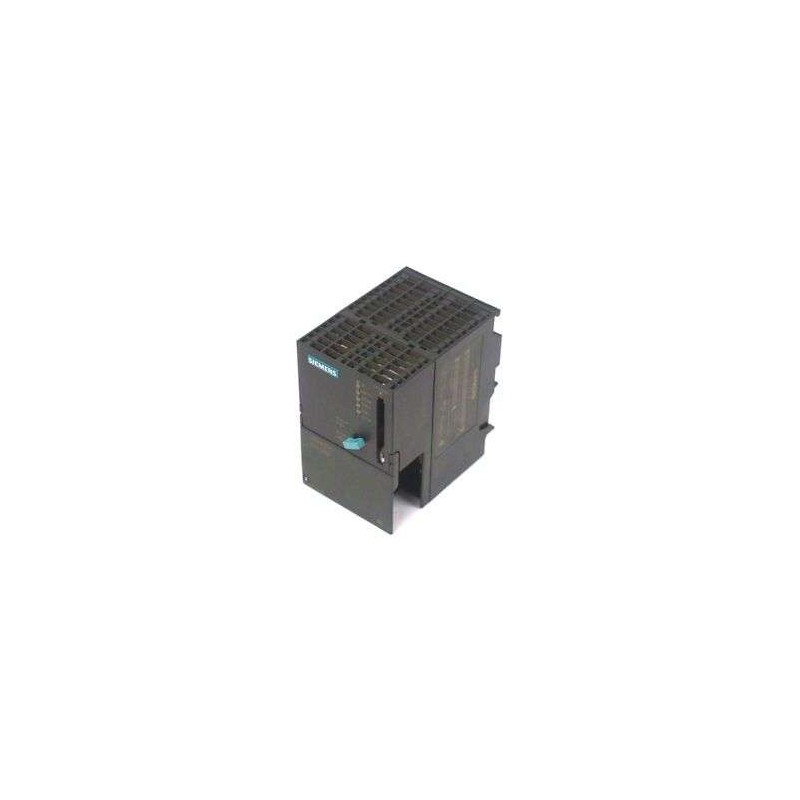

SIEMENS SIMATIC S7-300 CPU 314 (6ES7314-1AE02-0AB0) – A reliable and proven mid-range controller for demanding automation tasks.
Integrated MPI interface for robust communication and easy programming with STEP 7 V5.x.
24 KB working memory and support for external load memory (MMC), providing ample space for medium to large applications.
Wide operating voltage range (19.2 V to 28.8 V DC) ensures stable performance in industrial environments.
Unlimited S7 counters and timers (limited only by RAM), with retentivity for critical process data.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Siemens SIMATIC S7-300 CPU 314, with the order number 6ES7314-1AE02-0AB0, is a high-performance central processing unit designed for complex automation systems in industries such as chemical, electronics, and electrical engineering. This CPU offers a balanced combination of processing power and memory, making it ideal for applications requiring moderate to high-speed logic and data handling. Equipped with an integrated MPI port, it allows for straightforward integration into existing S7-300 networks. The unit operates on a 24 V DC supply and supports external load memory via an MMC card, ensuring flexibility in program storage. Below are the detailed technical specifications for this model.

Specification	Details
Product Type	CPU 314
Order Number	6ES7314-1AE02-0AB0
Series	SIMATIC S7-300
Processor Type	Standard CPU for medium to large automation tasks
Working Memory	24 KB
Load Memory	External (MMC card required, not included)
Retentive Memory	Available, dependent on external storage
Integrated Interfaces	1 x MPI (Multi-Point Interface)
Supply Voltage	24 V DC (range: 19.2 V to 28.8 V DC)
Power Protection	External protection recommended for supply cables
Programming Software	STEP 7 V5.x (check compatibility for latest versions)
Bit Operation Time	Typically 0.1 μs per instruction
Word Operation Time	Typically 0.2 μs per instruction
Fixed-Point Arithmetic Time	Typically 0.2 μs per instruction
Floating-Point Arithmetic Time	Typically 0.6 μs per instruction
Maximum Number of Data Blocks (DBs)	Unlimited (limited by RAM capacity)
Maximum Number of Function Blocks (FBs)	Unlimited (limited by RAM capacity)
Maximum Number of Functions (FCs)	Unlimited (limited by RAM capacity)
Organization Blocks (OBs) Supported	OB1, OB10, OB20, OB21, OB32, OB33, OB34, OB35, OB40, OB100, OB80, OB82, OB85, OB87, OB121, OB122
S7 Counters	Unlimited (with retentivity)
S7 Timers	Unlimited (with retentivity)
Ambient Temperature (Operation)	0 °C to 60 °C
Dimensions (W x H x D)	80 mm x 125 mm x 120 mm (approximately)
Weight	Approximately 300 g
