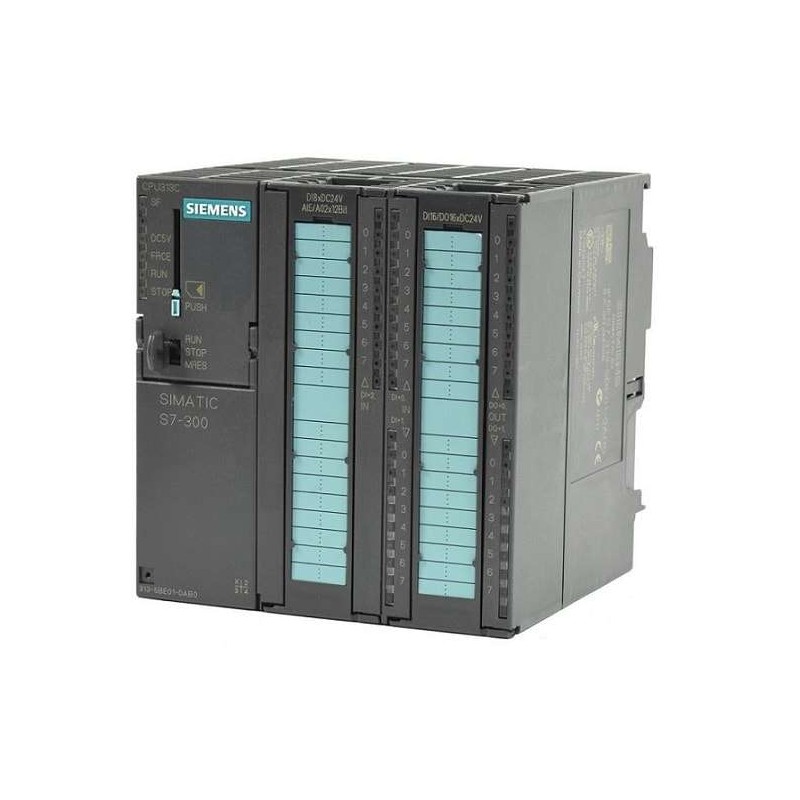

The SIEMENS SIMATIC S7-300 CPU 313C, model 6ES7313-5BE01-0AB0, is a versatile and compact controller engineered for mid-range industrial applications requiring a balance of processing power and integrated I/O. This CPU is part of the S7-300 family, known for its modularity and reliability in harsh environments. The CPU 313C combines a powerful processor with onboard digital and analog channels, eliminating the need for separate modules in many applications. It supports a wide range of communication protocols via its MPI interface, enabling easy integration into existing networks. With 32 KB of working memory and a robust set of timers and counters, this unit is ideal for real-time control tasks in chemical, electrical, and electronics industries. The integrated PT100 input allows direct temperature sensing, making it suitable for process control loops. For demanding applications, the CPU 313C offers three high-speed counters capable of handling up to 30 kHz signals, ensuring precise monitoring of fast-moving machinery.
| Specification |
Details |
| Product Type |
CPU 313C Compact PLC |
| Model Number |
6ES7313-5BE01-0AB0 |
| Working Memory |
32 KB |
| Load Memory |
Internal flash (expandable via MMC) |
| Retentive Memory |
Yes (configurable via hardware configuration) |
| Digital Inputs |
24 DI (24 V DC) |
| Digital Outputs |
16 DO (24 V DC, 0.5 A each) |
| Analog Inputs |
4 AI (0-10 V, 0-20 mA, or PT100) |
| Analog Outputs |
2 AO (0-10 V or 0-20 mA) |
| PT100 Input |
1 dedicated channel for temperature sensing |
| High-Speed Counters |
3 counters (up to 30 kHz each) |
| Communication Interface |
MPI (Multi-Point Interface) |
| Power Supply |
24 V DC (19.2 V to 28.8 V) |
| Power Consumption |
Typical 10 W |
| Program Blocks |
OBs: OB1, OB10-OB17, OB30-OB38, OB80-OB87; FBs/FCs/DBs: limited by memory |
| Timers |
Unlimited (limited by RAM), retentive option available |
| Counters (S7) |
Unlimited (software-based); 3 hardware fast counters |
| Bit Operation Time |
0.1 µs |
| Word Operation Time |
0.2 µs |
| Fixed-Point Arithmetic Time |
0.2 µs |
| Floating-Point Arithmetic Time |
0.6 µs |
| Operating Temperature |
0 °C to 60 °C |
| Dimensions (W x H x D) |
40 mm x 125 mm x 130 mm |
| Weight |
Approx. 290 g |
| Protection Class |
IP20 |
| Application Areas |
Chemical, electronics, electrical, and general industrial automation |
