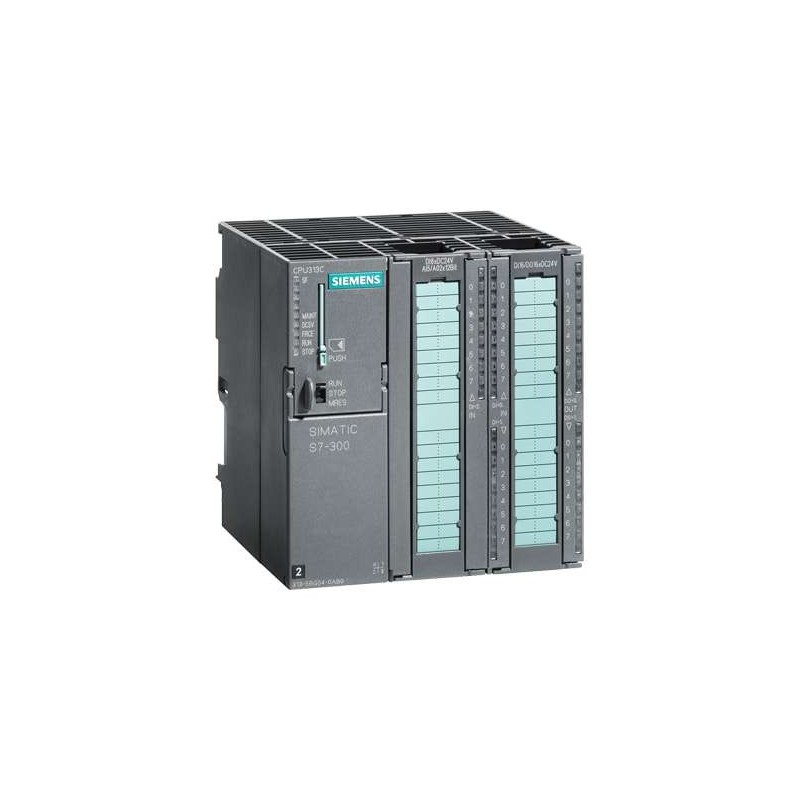

The SIEMENS SIMATIC S7-300 CPU 313C (6ES7313-5BE00-0AB0) is a compact yet powerful controller designed for demanding industrial applications requiring both digital and analog control in a single unit. This CPU integrates a rich set of onboard I/O—including 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, and a dedicated PT100 input—making it an ideal choice for space-limited panels in chemical processing, electronics manufacturing, and electrical automation. With 32 KB of working memory and support for high-speed counters up to 30 kHz, the CPU 313C delivers reliable, real-time performance for complex control loops and data acquisition. Fully compatible with STEP 7 V5.5+ programming environment, this unit ensures seamless integration into existing S7-300 systems. Each module is 100% original and new, shipped globally with full warranty and technical support.
| Parameter |
Specification |
| Product Type |
SIMATIC S7-300 CPU 313C COMPACT |
| Order Number |
6ES7313-5BE00-0AB0 |
| Working Memory |
32 KB |
| Load Memory |
Supports external MMC (Micro Memory Card) |
| Digital Inputs |
24 DI (24V DC, sink/source) |
| Digital Outputs |
16 DO (24V DC, 0.5A) |
| Analog Inputs |
4 AI (0-10V, 0-20mA, 4-20mA; 12-bit resolution) |
| Analog Outputs |
2 AO (0-10V, 0-20mA, 4-20mA; 12-bit resolution) |
| PT100 Input |
1 dedicated channel for PT100 temperature sensors |
| Power Supply |
24V DC (19.2V to 28.8V) |
| Power Consumption |
Typ. 8W |
| Interface |
MPI (Multi-Point Interface), max. 12 Mbit/s |
| High-Speed Counters |
3 counters, up to 30 kHz |
| Timers |
Unlimited (RAM-based), with retentivity |
| Counters |
Unlimited (RAM-based), with retentivity |
| Program Blocks |
DB, FB, FC, OB (including OB1, OB40, OB82, etc.) |
| Retentive Memory |
Automatic data retention in non-volatile area |
| Programming Software |
STEP 7 V5.5 + SP1 or higher |
| Operating Temperature |
0°C to 60°C |
| Dimensions (W x H x D) |
80 x 125 x 130 mm |
| Weight |
Approx. 470g |
| Protection Class |
IP20 |
