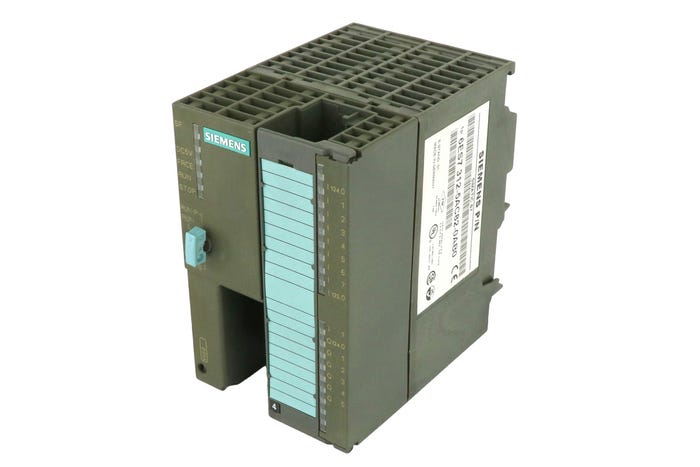

Siemens SIMATIC S7-300 CPU 312 6ES7312-5AC82-0AB0

Series#: Siemens

Product Details

Siemens SIMATIC S7-300 CPU 312 – 6ES7312-5AC82-0AB0: High-performance CPU for medium to complex automation tasks.
Integrated MPI/DP interface for seamless PROFIBUS DP communication and programming.
96 KByte working memory with support for micro memory cards for program and data storage.
Fast processing: 0.1 µs bit operation and 0.32 µs fixed-point arithmetic.
Supports STEP 7 Professional and TIA Portal for flexible engineering.
Ideal for chemical, electronics, and electrical industries requiring reliable control.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Siemens SIMATIC S7-300 CPU 312, model 6ES7312-5AC82-0AB0, is a compact yet powerful controller designed for demanding industrial environments. This CPU offers a robust mix of processing speed, memory capacity, and integrated communication capabilities, making it a top choice for engineers seeking a reliable solution for medium-sized automation projects. Its versatile design supports both AC and DC power supply options, ensuring compatibility with a wide range of global applications. Below is a detailed technical breakdown of its specifications.

Specification	Details
Product Model	6ES7312-5AC82-0AB0
Product Series	SIMATIC S7-300
CPU Type	CPU 312
Application Areas	Chemical, Electronics, Electrical, and other industrial automation sectors requiring medium to complex control tasks.
Integrated Interfaces	MPI/DP Interface (Multi-Point Interface and PROFIBUS DP)
Power Supply (AC Models)	85–264 VAC, 47–63 Hz, auto-ranging
Power Supply (DC Models)	24 V DC (optional for redundant configurations)
Power Protection	External surge protection recommended for both AC and DC lines
Storage Media	Supports MicroSD or CompactFlash memory cards
Working Memory	96 KByte
Load Memory (Max)	Depends on memory card type; supports large programs and data logging
Retentive Memory	Dedicated area for retentive data blocks
Programming Environment	STEP 7 Professional or TIA Portal (compatible versions)
Bit Operation Time	Approx. 0.1 µs
Word Operation Time	Approx. 0.24 µs
Fixed-Point Arithmetic Time	Approx. 0.32 µs
Floating-Point Arithmetic Time	Approx. 1.1 µs
Max Data Blocks (DBs)	1024
Max Function Blocks (FBs)	1024 (max 32 KByte per block)
Max Functions (FCs)	1024 (max 32 KByte per block)
Organization Blocks (OBs)	OB1, OB10-OB17, OB30-OB38, OB80-OB87, and more
S7 Counters	Unlimited (limited by RAM, retentive)
S7 Timers	Unlimited (limited by RAM, retentive)
Dimensions (W x H x D)	Approx. 125 x 125 x 130 mm (standard S7-300 form factor)
Weight	Approx. 0.3 kg
Operating Temperature	0 °C to 60 °C
Storage Temperature	-40 °C to 70 °C
Relative Humidity	Up to 95% (non-condensing)
Protection Class	IP20 (for indoor use)
Certifications	CE, cULus, and other relevant industrial standards
