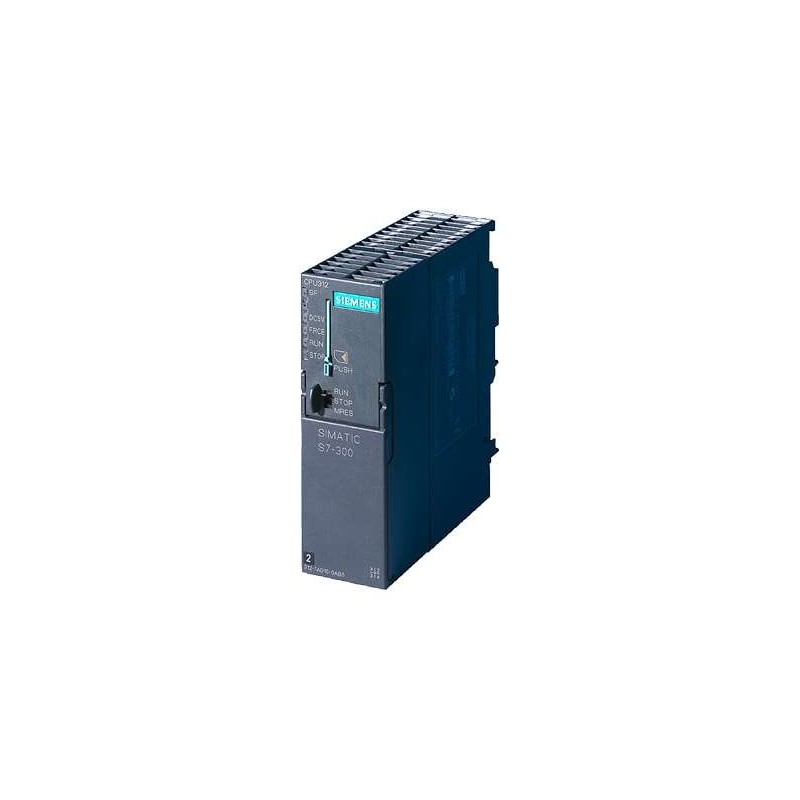

Siemens SIMATIC S7-300 CPU 312 6ES7312-1AE13-0AB0

Series#: Siemens

Product Details

Product Model: Siemens SIMATIC S7-300 CPU 312, Order No. 6ES7312-1AE13-0AB0 – a compact, high-performance CPU for mid-range automation tasks.
Integrated MPI Interface: Built-in Multi-Point Interface for seamless programming, diagnostics, and peer-to-peer communication.
Fast Execution Speed: Bit operation time of just 0.1 µs, ensuring rapid response for real-time control loops.
Flexible Memory: 32 KB working memory with support for up to 8 MB MMC for program and data storage.
Robust Power Supply: Operates on 24 V DC (19.2 V to 28.8 V) with built-in protection for reliable industrial environments.
Versatile Programming: Fully compatible with STEP 7 V5.5+ SP1 or later, enabling modular and scalable application development.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Siemens SIMATIC S7-300 CPU 312, identified by the order number 6ES7312-1AE13-0AB0, is a compact yet powerful central processing unit designed for demanding automation applications in industries such as chemical processing, electronics manufacturing, and general machine control. This CPU delivers exceptional performance with a balance of speed, memory, and communication capabilities, making it an ideal choice for both standalone and distributed control systems. It features a single MPI interface for programming and data exchange, and it requires a MultiMediaCard (MMC) for load memory, ensuring secure and reliable program storage. The unit is engineered for long service life and easy integration into existing S7-300 racks, providing a cost-effective solution for mid-range control tasks.

Category	Specification
Product Type	Central Processing Unit (CPU)
Model	CPU 312
Order Number	6ES7312-1AE13-0AB0
Series	SIMATIC S7-300
Integrated Interfaces	1 x MPI (Multi-Point Interface)
Power Supply Voltage	24 V DC (19.2 V to 28.8 V)
Power Protection	External fuse recommended for power supply cable
Working Memory	32 KB RAM
Load Memory (MMC)	Up to 8 MB via MultiMediaCard
Retentive Memory	32 KB for data blocks
Bit Operation Time	0.1 µs
Word Operation Time	0.24 µs
Fixed-Point Arithmetic Time	0.32 µs
Floating-Point Arithmetic Time	1.1 µs
Max. Data Blocks (DBs)	1024
Max. Function Blocks (FBs) & Functions (FCs)	1024 each, max. 32 KB per block
Organization Blocks (OBs)	OB1, OB10, OB20, OB21, OB32, OB33, OB34, OB35, OB40, OB80, OB82, OB85, OB87, OB100, OB121, OB122
S7 Counters	Unlimited (limited by RAM), retentive
S7 Timers	Unlimited (limited by RAM), retentive
Programming Software	STEP 7 V5.5 + SP1 or later; STEP 7 V5.2 + SP1 or later (with HSP 218)
Operating Temperature	0 °C to 60 °C (typical industrial range)
Storage Temperature	-40 °C to 70 °C
Dimensions (W x H x D)	Approx. 40 mm x 125 mm x 130 mm
Weight	Approx. 200 g
Application Areas	Chemical, electronics, electrical, and general manufacturing automation
