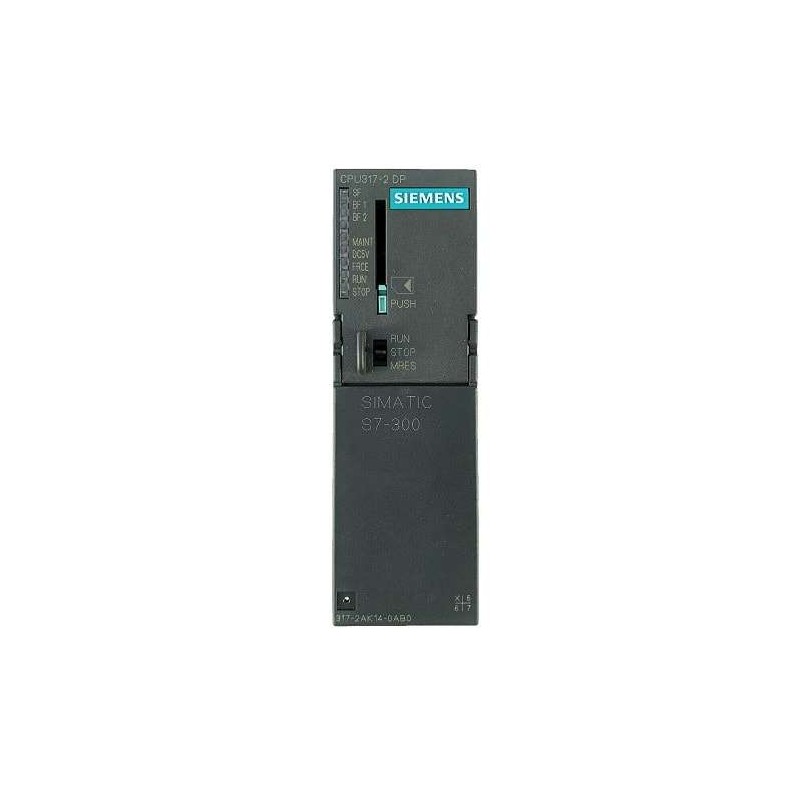

The Siemens SIMATIC S7-300 CPU 317-2 DP (6ES7317-2AK14-0AB0) is a versatile and powerful central processing unit engineered for complex automation tasks. As a cornerstone of the S7-300 family, this CPU integrates a PROFIBUS DP interface and MPI connectivity, allowing seamless integration into existing plant networks. With its substantial memory capacity and rapid processing speeds, the CPU 317-2 DP excels in applications requiring high-speed data handling, such as synchronized motion control and distributed I/O management. Its robust design ensures reliable operation in harsh industrial environments, making it a preferred choice for system integrators and end-users seeking a balance of performance and cost-efficiency.
| Specification |
Details |
| Product Model |
6ES7317-2AK14-0AB0 |
| Product Series |
SIMATIC S7-300 |
| CPU Type |
CPU 317-2 DP |
| Application Areas |
Heavy industry, manufacturing, automotive, chemical processing, and other complex industrial automation systems |
| Integrated Interfaces |
MPI interface; PROFIBUS DP Master/Slave interface (built-in) |
| Power Supply |
24 V DC (19.2 V to 28.8 V range) |
| Power Protection |
External protection recommended (for power supply cables) |
| Storage Media |
Requires a MultiMediaCard (MMC) or CompactFlash (CF) card |
| Working Memory |
128 KByte |
| Load Memory (MMC/CF) |
Maximum 8 MByte |
| Retentive Memory |
128 KByte (for retentive data blocks) |
| Supported Software |
STEP 7 V5.5 + SP1 or higher |
| Additional Tools |
SIMATIC Manager, WinCC, etc. for visualization and monitoring |
| Bit Operation Time |
Approx. 0.1 µs |
| Word Operation Time |
Approx. 0.24 µs |
| Fixed-Point Arithmetic Operation Time |
Approx. 0.32 µs |
| Floating-Point Arithmetic Operation Time |
Approx. 1.1 µs |
| Maximum Number of Data Blocks (DBs) |
4096 |
| Maximum Number of Function Blocks (FBs) and Functions (FCs) |
4096 each (max. 32 KByte per block) |
| Types and Quantities of Organization Blocks (OBs) |
Includes OB1, OB10, OB20/21, OB30 to OB38, OB40, OB80/82/85/86/87, OB121/122, etc. |
| S7 Counters |
Unlimited (limited only by RAM capacity), with retentivity |
| S7 Timers |
Unlimited (limited only by RAM capacity), with retentivity |
| Communication Protocols |
PROFIBUS DP (high-speed data exchange); MPI (programming device and MPI-compatible devices) |
