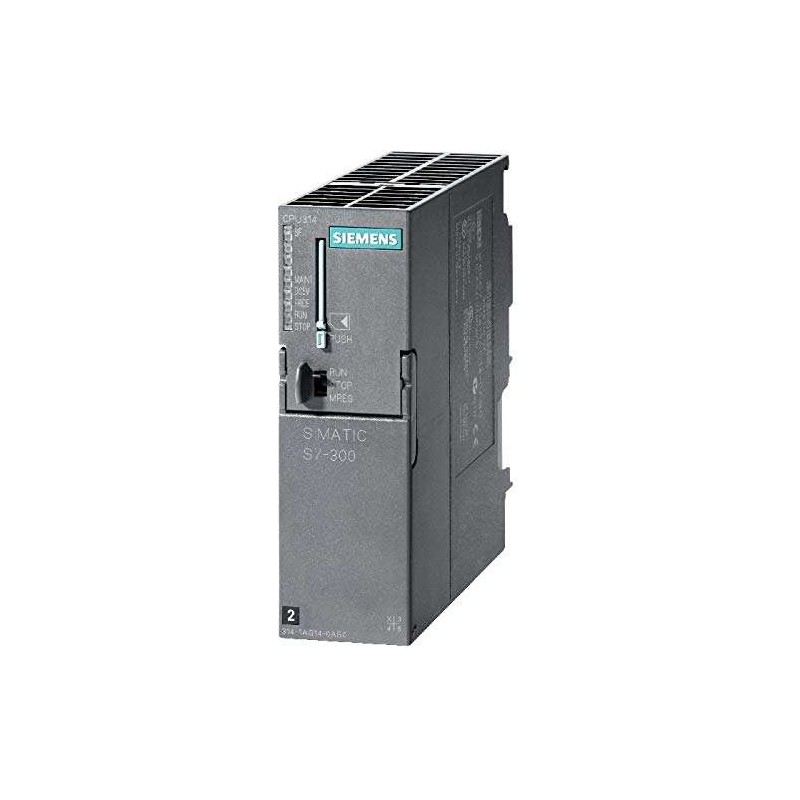

The Siemens SIMATIC S7-300 CPU 314, specifically the 6ES7 314-1AG14-0AB0, is a trusted workhorse in industrial automation, offering a perfect balance of speed, memory, and connectivity for demanding applications in chemical, automotive, and food & beverage sectors. This CPU integrates a powerful 32-bit processor with a compact design, ensuring reliable control in harsh environments. Below is a comprehensive specification table detailing its core features.
| Parameter |
Specification |
| Product Type |
Siemens SIMATIC S7-300 CPU 314 |
| Order Number |
6ES7 314-1AG14-0AB0 |
| Power Supply Voltage |
24 V DC (range 19.2 V to 28.8 V) |
| Working Memory |
96 KB |
| Load Memory (MMC) |
Max. 8 MB (MultiMediaCard required) |
| Retentive Memory |
Yes, dedicated for data blocks |
| Integrated Interfaces |
1 x MPI (up to 12 Mbit/s), 1 x PROFIBUS DP (Master/Slave) |
| Bit Operation Time |
0.1 µs |
| Word Operation Time |
0.24 µs |
| Fixed-Point Arithmetic Time |
0.32 µs |
| Floating-Point Arithmetic Time |
1.1 µs |
| Max. Number of Data Blocks (DBs) |
2048 (max. 64 KB each) |
| Max. Number of Function Blocks (FBs) |
2048 (max. 64 KB each) |
| Max. Number of Functions (FCs) |
2048 (max. 64 KB each) |
| Organization Blocks (OBs) |
OB1, OB10-OB17, OB30-OB38, OB80-OB87, OB121, OB122, and more |
| S7 Counters |
Unlimited (RAM-based), retentive |
| S7 Timers |
Unlimited (RAM-based), retentive |
| Programming Software |
STEP 7 V5.5 + SP1 or higher |
| Protection Class |
IP20 (with enclosure) |
| Operating Temperature |
0 °C to +60 °C (horizontal installation) |
| Dimensions (W x H x D) |
Approx. 80 x 125 x 130 mm |
| Weight |
Approx. 290 g |
