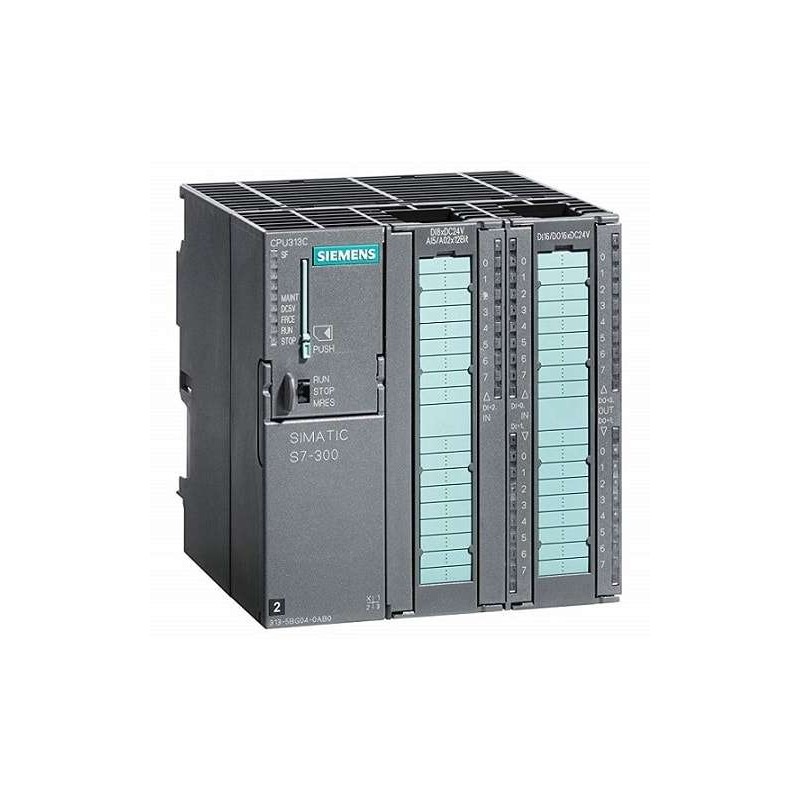

The SIEMENS SIMATIC S7-300 CPU 313C (6ES7313-5BG04-0AB0) is a versatile and powerful controller engineered for demanding automation applications across machinery, process, and factory automation. This compact CPU integrates a high-speed processor with a rich set of onboard I/O, making it an excellent choice for applications requiring fast logic execution and precise control. Its robust design and comprehensive communication capabilities ensure reliable integration into both new and existing S7-300 systems, delivering exceptional performance for complex control tasks.
| Specification |
Details |
| Product Type |
Central Processing Unit (CPU) |
| Model Number |
6ES7313-5BG04-0AB0 |
| Series |
SIMATIC S7-300 |
| CPU Type |
CPU 313C |
| Work Memory |
128 KB (for program and data) |
| Load Memory |
Up to 8 MB via SIMATIC Micro Memory Card (MMC) |
| Integrated Digital I/O |
24 DI / 16 DO (24V DC) |
| Integrated Analog I/O |
4 AI / 2 AO (0-10V, 0/4-20mA) |
| Processing Time (Bit Operations) |
Approx. 0.1 µs |
| Communication Interfaces |
1x MPI (up to 187.5 kbps), 1x PROFIBUS DP (master/slave, up to 12 Mbps) |
| PROFINET Interface |
Not integrated on this CPU model (requires external CP module) |
| Number of Modules per Rack |
Up to 8 (central rack), up to 32 total with 3 extension racks |
| Rack Position |
Slot 1 (CPU slot) |
| Power Supply |
Via backplane bus (requires external PS 307 or similar) |
| Timers/Counters |
256 timers / 256 counters |
| Diagnostic Buffer |
Yes, integrated for error and event logging |
| Password Protection |
Yes, for user program access control |
| Programming Software |
STEP 7 (V5.5+ or TIA Portal V13+) |
| Operating Temperature |
0°C to 60°C (horizontal installation) |
| Dimensions (W x H x D) |
80 mm x 125 mm x 130 mm |
| Weight |
Approx. 350 g |
| Standards |
IEC 61131-2, EN 50178 |
