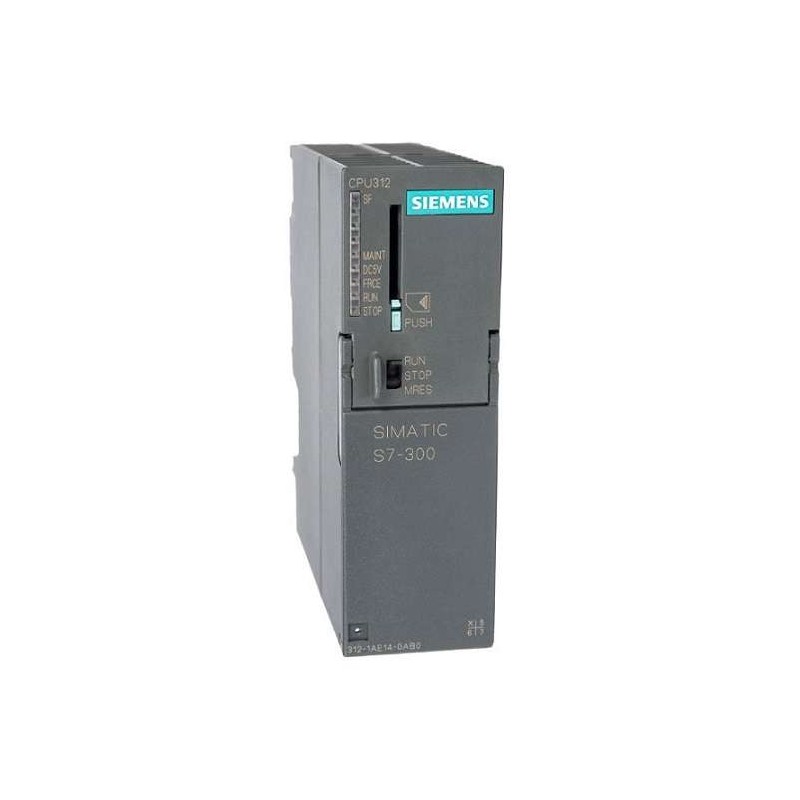

Siemens 6ES7312-1AE14-0AB0 SIMATIC S7-300 CPU 312

Series#: Siemens

Product Details

Siemens SIMATIC S7-300 CPU 312 (6ES7312-1AE14-0AB0) – Compact yet powerful central processing unit for modular automation systems.
Integrated MPI and PROFIBUS DP interfaces for high-speed device communication and distributed I/O.
Expandable memory via plug-in modules (up to 64 KB RAM) for medium-to-large program execution.
Modular rack design supports flexible configuration with signal, function, and communication modules.
Built-in real-time clock, diagnostics, and interrupt handling for precise, reliable control.
Programmed with Siemens STEP 7 software – ideal for scalable industrial automation solutions.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Siemens SIMATIC S7-300 CPU 312 (6ES7312-1AE14-0AB0) is a compact, high-performance CPU engineered for medium-scale automation tasks requiring robust processing power and flexible communication. As a cornerstone of the modular S7-300 family, this CPU integrates a real-time clock, comprehensive diagnostics, and dual interface support (MPI and PROFIBUS DP) to enable seamless integration with distributed I/O, drives, and HMI systems. Its expandable memory architecture and modular design allow for precise customization, making it a preferred choice for demanding industrial environments. Below are the detailed technical specifications:

Parameter	Specification
Product Type	Siemens SIMATIC S7-300 CPU 312
Order Number (MLFB)	6ES7312-1AE14-0AB0
Power Supply Voltage	DC 24 V (20.4 V to 28.8 V)
Program Memory (RAM)	Up to 64 KB (expandable via memory module)
Data Memory	Expandable via memory module (e.g., 64 KB or 256 KB)
Integrated Digital I/O	None (all I/O via external signal modules)
Max. Number of Modules	8 modules (single-row configuration, up to 4 rows with expansion)
Max. Digital I/O Points	Up to 256 (with SM modules)
Max. Analog I/O Channels	Up to 64 (with SM modules)
Communication Interface 1	MPI (Multi-Point Interface) – up to 12 Mbit/s
Communication Interface 2	PROFIBUS DP Master/Slave – up to 12 Mbit/s
Number of MPI Connections	Max. 8 (including programming device and operator panels)
Real-Time Clock	Yes (with backup battery)
Interrupt Processing	Hardware, diagnostic, and time-of-day interrupts
High-Speed Counters	Supported via function modules (FM)
Pulse Outputs	Supported via function modules (FM)
Programming Software	Siemens STEP 7 (V5.5 or higher) / TIA Portal (optional)
Operating Temperature	0 °C to +60 °C (horizontal installation); 0 °C to +40 °C (vertical)
Storage Temperature	-40 °C to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Protection Class	IP20
Dimensions (W x H x D)	40 mm x 125 mm x 130 mm
Weight	Approx. 290 g
