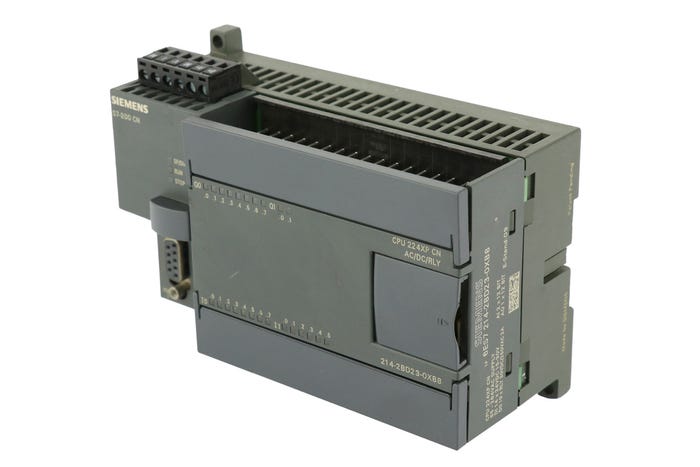

The Siemens SIMATIC S7-200 CPU 224XP, identified by the product code 6ES7214-2BD23-0XB8, is a robust and versatile compact PLC engineered for medium-scale industrial automation. This CPU unit integrates a powerful processing core with a rich set of onboard I/O, including 14 DC digital inputs and 10 relay outputs, making it ideal for applications requiring reliable switching of both AC and DC loads. Its built-in RS-485 communication interface supports multiple protocols, while the integrated real-time clock and high-speed counters enable precise control in time-sensitive processes. The CPU 224XP is designed for easy expansion, allowing users to connect additional I/O modules, communication processors, and special-function modules to tailor the system to specific requirements. With its proven reliability and support for the Siemens Micro/WIN programming environment, this controller is a trusted choice for machine builders and system integrators worldwide.
| Parameter |
Specification (SIMATIC S7-200 CPU 224XP - 6ES7214-2BD23-0XB8) |
| Product Name |
SIMATIC S7-200 CPU 224XP |
| Part Number |
6ES7214-2BD23-0XB8 |
| Brand |
Siemens |
| Power Supply |
AC (100–240 VAC) |
| Input Points |
14 Digital Inputs (DC, 24 VDC) |
| Output Points |
10 Digital Outputs (Relay, 2 A per point) |
| Output Type |
Relay (AC/DC switching capability) |
| Output Ratings (Relay) |
30 VDC / 240 VAC, 2 A per point |
| Program Memory |
24 KB (user program + data) |
| Data Memory (Retentive) |
10 KB (EEPROM backup) |
| Communication Interface |
1 x RS-485 (PPI, MPI, or Freeport protocol) |
| Built-in Features |
Real-time clock, 6 high-speed counters (up to 30 kHz), 2 pulse outputs (20 kHz) |
| Expansion Capability |
Up to 7 expansion modules (I/O, communication, or special-function) |
| Programming Software |
STEP 7-Micro/WIN or Micro/WIN SMART |
| Operating Temperature |
0°C to 55°C (horizontal installation) |
| Dimensions (W x H x D) |
120.5 mm x 80 mm x 62 mm |
| Weight |
Approx. 390 g |
| Protection Class |
IP20 (open-type device) |
| Certifications |
CE, cULus, FM, ATEX (Zone 2) |
