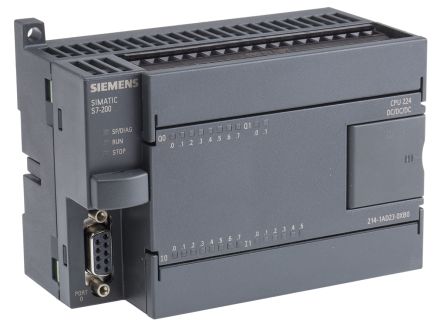

The Siemens SIMATIC S7-200 PLC CPU 224, identified by the order number 6ES7214-1AD23-0XB8, stands as a reliable and cost-effective solution for industrial automation. This DC-powered unit integrates 14 digital inputs and 10 transistor outputs, engineered for high-speed control in demanding environments. Its compact footprint and robust construction make it ideal for space-constrained installations, while the integrated RS-485 port enables seamless communication with HMIs, drives, and other controllers. Whether deployed as a standalone unit or as part of a larger distributed system, the CPU 224 delivers consistent performance, backed by a real-time clock and support for high-speed counters. Below is a comprehensive technical specification table for this model.
| Specification |
Details |
| Product Name |
SIMATIC S7-200 CPU 224 |
| Part Number |
6ES7214-1AD23-0XB8 |
| Brand |
Siemens |
| Power Supply |
24 V DC (for CPU and I/O logic) |
| Input Points |
14 DC digital inputs (24 V DC, sink/source) |
| Output Points |
10 transistor digital outputs (24 V DC, 0.75 A per output) |
| Output Type |
Transistor (DC) – high-speed switching |
| Program Memory |
8 KB (user program and data) |
| Data Memory |
8 KB (retentive and non-retentive) |
| Communication Interface |
1 x RS-485 (PPI, MPI, or user-defined protocol) |
| Real-Time Clock |
Yes, built-in with battery backup |
| High-Speed Counters |
6 counters (up to 30 kHz) |
| Maximum Expansion I/O |
Up to 168 I/O points (with expansion modules) |
| Instruction Execution Time |
0.22 µs per Boolean instruction |
| Operating Temperature |
0°C to 55°C (industrial environment) |
| Dimensions (W x H x D) |
120.5 mm x 80 mm x 62 mm |
| Programming Software |
Micro/WIN or Micro/WIN SMART |
| Weight |
Approx. 360 g |
