| Specification |
Details |
| Product Type |

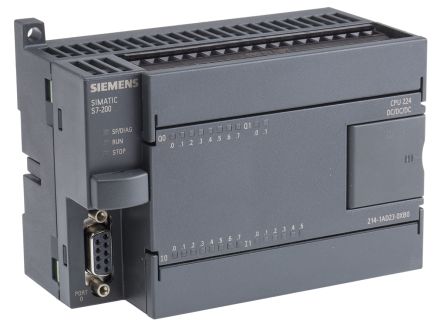

SIMATIC S7-200 CPU 224XP DC DC DC AI AO |
| MLFB / Order Number |
6ES7214-2AD23-0XB0 |
| Power Supply Voltage |
20.4 to 28.8 V DC (24 V DC nominal) |
| Digital Inputs |
14 (24 V DC, sink/source, 4 interruptible, 6 high-speed) |
| Digital Outputs |
10 (24 V DC transistor, 0.75 A per output, 3 A per common) |
| Analog Inputs |
2 (0–10 V, 0–20 mA, 10-bit resolution) |
| Analog Outputs |
1 (0–10 V, 0–20 mA, 10-bit resolution) |
| User Program Memory |
12 KB (code) + 8 KB (data) = 20 KB total |
| Removable Data Storage |
Optional Micro Memory Card (MMC) |
| Real-Time Clock |
Built-in, with backup capacitor (typical 190 hours) |
| High-Speed Counters |
6 (single-phase: 4 at 30 kHz + 2 at 20 kHz; quadrature: 2 at 20 kHz) |
| Pulse Outputs (PTO/PWM) |
2 (up to 20 kHz, 50% duty cycle) |
| Communication Port |
1 × RS-485 (PPI, MPI, Freeport, USS, Modbus RTU) |
| Baud Rate (Port 0) |
9.6, 19.2, or 187.5 kbps (PPI); up to 115.2 kbps (Freeport) |
| PID Loops |
8 (with auto-tuning support) |
| Execution Speed |
0.22 µs per boolean instruction |
| Expansion Modules |
Up to 7 (digital, analog, temperature, or communication) |
| Maximum Digital I/O (with expansion) |
256 (128 inputs + 128 outputs) |
| Maximum Analog I/O (with expansion) |
32 (16 inputs + 16 outputs) |
| Programming Software |
STEP 7 Micro/WIN (V4.0 SP9 or later) |
| Operating Temperature |
0 °C to +55 °C (horizontal); 0 °C to +45 °C (vertical) |
| Storage Temperature |
-40 °C to +70 °C |
| Relative Humidity |
95% non-condensing |
| Dimensions (W × H × D) |
80 mm × 80 mm × 62 mm |
| Weight |
Approx. 360 g |
| Protection Class |
IP20 (with enclosure) |
| Certifications |
CE, cULus, FM, ATEX (Zone 2), RoHS |
