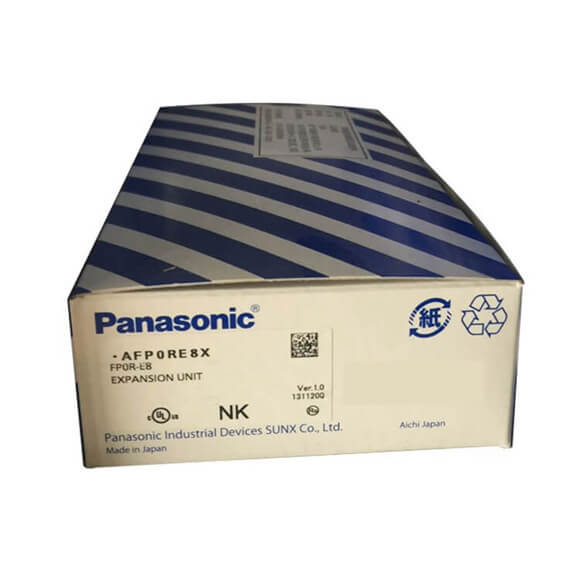

The PANASONIC PLC EXTENSION AFP0RE8X, AFP0RE8YT, AFP0RE8YP, and AFP0RE16X are essential I/O expansion modules designed specifically for the FP0R series programmable logic controllers. These modules provide seamless scalability, allowing users to increase digital input and output points without compromising performance. Whether you need 8-point relay outputs (AFP0RE8X), 8-point transistor outputs (AFP0RE8YT/Y), or a high-density 16-point module (AFP0RE16X), each unit integrates effortlessly via the expansion bus, supporting mixed configurations for maximum flexibility in industrial automation environments.
| Model Number |
Input Points |
Output Points |
Output Type |
Rated Input Voltage |
Rated Output Voltage |
Power Supply |
Operating Temperature |
| AFP0RE8X |
0 |
8 |
Relay (Form A) |
N/A |
24 V DC / 250 V AC |
24 V DC (via expansion bus) |
0°C to +55°C |
| AFP0RE8YT |
0 |
8 |
Transistor (NPN sink) |
N/A |
24 V DC, 0.5 A per point |
24 V DC (via expansion bus) |
0°C to +55°C |
| AFP0RE8YP |
0 |
8 |
Transistor (PNP source) |
N/A |
24 V DC, 0.5 A per point |
24 V DC (via expansion bus) |
0°C to +55°C |
| AFP0RE16X |
0 |
16 |
Relay (Form A) |
N/A |
24 V DC / 250 V AC |
24 V DC (via expansion bus) |
0°C to +55°C |
- Communication Interface: Direct expansion bus connection to FP0R control units; no external wiring required.
- Output Specifications (Relay): Maximum switching capacity 2 A per point (resistive load), mechanical life >20 million operations.
- Output Specifications (Transistor): 0.5 A per point, short-circuit protection, response time <1 ms.
- Isolation: 1500 V AC between I/O and internal circuits (optical isolation for transistor types).
- Mounting: DIN rail (35 mm) or direct panel mounting via screw holes.
- Dimensions (W x H x D): AFP0RE8X/Y: 30 x 90 x 60 mm; AFP0RE16X: 60 x 90 x 60 mm.
- Weight: Approximately 50 g (8-point) and 80 g (16-point).
- Environmental Protection: IP20 rated enclosure for indoor use.
- Compliance: CE, UL, and RoHS certified for global industrial applications.
