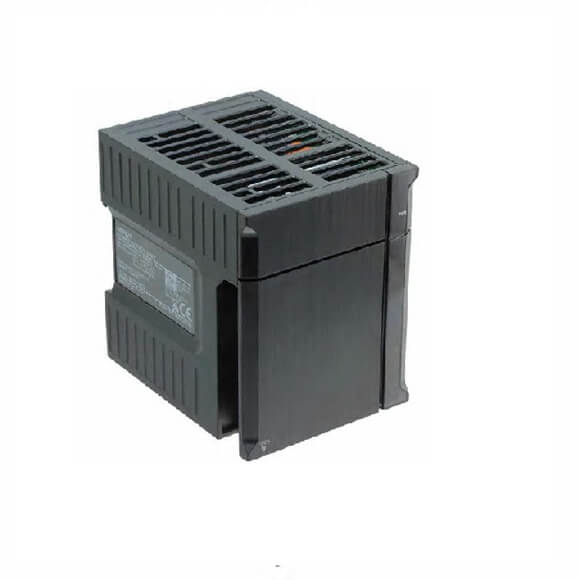

The Omron NJ301-1200, NJ301-1100, NJ301-1000, and NJ301-9000 are part of the advanced NJ-Series Machine Automation Controllers, designed to unify logic, motion, and safety control in a single, compact platform. These units leverage a high-speed EtherCAT network for synchronized multi-axis motion and real-time I/O, making them ideal for packaging, material handling, and assembly applications. With a 5 VDC, 1.90 A power consumption and a lightweight 550 g design, the NJ301 series delivers exceptional performance in space-constrained panels.
| Item |
NJ301-Standard @ |
| Enclosure |
Mounted in a panel |
| Grounding Method |
Ground to less than 100 Ω; 90 mm x 90 mm x 90 mm |
| Weight |
550 g (including End Cover); 5 VDC, 1.90 A (including SD Memory Card and End Cover) |
| Ambient Operating Temperature |
0 to 55°C; 10% to 90% RH (with no condensation) |
| Atmosphere |
Must be free from corrosive gases; Storage: -20 to 75°C (excluding battery) |
| Altitude |
2,000 m or less; Pollution Degree 2: Meets IEC 61010-2-201 |
| Noise Immunity |
2 kV on power supply line (Conforms to IEC 61000-4-4.); Overvoltage Category II: Meets IEC 61010-2-201 |
| EMC Immunity Level |
Zone B; Vibration: Conforms to IEC 60068-2-6, 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s² for 100 min in X, Y, Z |
| Shock Resistance |
Conforms to IEC 60068-2-27; 147 m/s², 3 times in X, Y, Z directions (100 m/s² for Relay Output Units) |
| Battery Life |
5 years at 25°C |
| Battery Model |
CJ1W-BAT01 |
| Applicable Standards |
Conforms to cULus, NK, LR, EU Directives, RCM and KC Registration |
- Power Supply & Consumption: 5 VDC, 1.90 A (including SD Memory Card and End Cover).
- Memory & Storage: Supports SD Memory Card for program and data storage.
- Network Interface: Built-in EtherCAT master port for high-speed motion and I/O synchronization.
- Environmental Durability: Operating temperature 0 to 55°C, humidity 10% to 90% non-condensing, altitude up to 2,000 m.
- EMC & Safety: Zone B immunity, 2 kV noise immunity on power line, conforms to IEC 61010-2-201.
- Mechanical Robustness: Vibration resistance per IEC 60068-2-6 (5–150 Hz, 9.8 m/s²) and shock resistance per IEC 60068-2-27 (147 m/s²).
- Battery Backup: 5-year battery life at 25°C using model CJ1W-BAT01 for memory retention.
- Certifications: cULus, NK, LR, EU Directives, RCM, and KC Registration – globally compliant.
