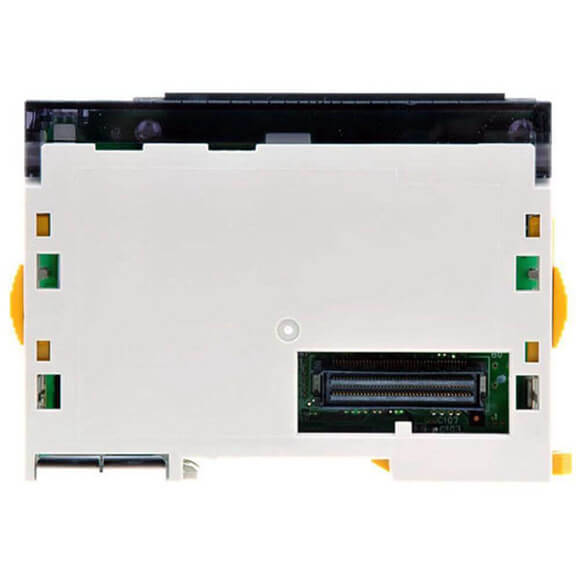

Engineered for high-precision motion control, the Omron CJ1W-NC113, CJ1W-NC213, and CJ1W-NC413 Position Control Units deliver robust pulse train output via open collector circuits, ideal for driving stepper motors or pulse-input servo drives in multi-axis systems. These modules integrate directly into the CJ-series backplane, offering scalable axis counts from 1 to 4 for applications ranging from simple indexing to complex coordinated motion. Each unit ensures deterministic performance with dedicated hardware for trajectory generation and feedback monitoring.
| Parameter |
CJ1W-NC113 |
CJ1W-NC213 |
CJ1W-NC413 |
| Control Axes |
1 axis |
2 axes |
4 axes |
| Output Type |
Pulse train, open collector (5/24 VDC) |
| Max. Output Frequency |
500 kpps (common for all models) |
| Positioning Range |
-2,147,483,648 to 2,147,483,647 pulses (32-bit) |
| Speed Control Range |
1 pps to 500 kpps (software selectable) |
| Acceleration/Deceleration |
Trapezoidal or S-curve (user-defined) |
| Operating Voltage |
24 VDC (internal bus powered) |
| Current Consumption |
0.15 A max |
0.18 A max |
0.25 A max |
| Weight |
Approx. 120 g |
Approx. 130 g |
Approx. 150 g |
- Positioning Modes: Supports absolute, relative, and interrupt positioning via pulse train commands.
- Origin Search: Programmable origin return with proximity and limit switch inputs.
- Software Support: Fully configurable via CX-Position tool for easy setup and monitoring.
- Protection: Overcurrent and thermal shutdown on output stages for reliability.
- Environmental: Rated for 0–55°C ambient temperature with natural convection cooling.
