Engineered for demanding industrial automation, the Keyence Digital Laser Sensor series LV-N11N, LV-N12N, LV-N11CN, LV-N12CN, and LV-N11MN delivers unparalleled precision and speed in a compact form factor. These NPN output sensors excel in high-speed object detection, offering response times as low as 80 microseconds in HIGH SPEED mode. Whether you need dual outputs for independent control (LV-N11N), a single output for simple tasks (LV-N11CN), or a monitor output for analog feedback (LV-N11MN), this series provides a tailored solution. The robust design supports up to 17 expansion units, ensuring scalability for complex systems. Built with reverse polarity protection and over-current protection, these sensors guarantee reliable performance in harsh environments.
| Model |

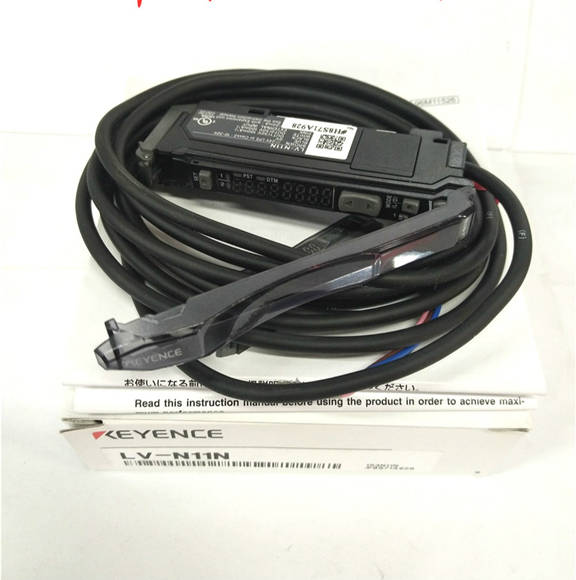

LV-N11N |
LV-N12N |
LV-N11CN |
LV-N12CN |

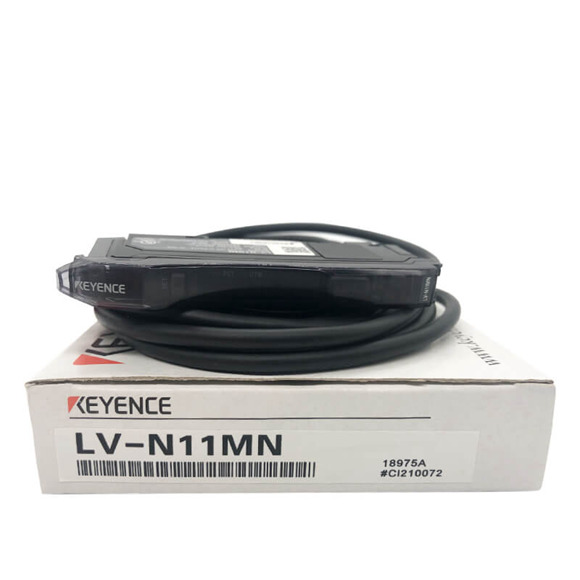

LV-N11MN |
| Type |
2 output |
- |
1 output |
- |
Monitor output |
| Output |
NPN |
- |
- |
- |
- |
| Cable/Connector |
Cable |
- |
M8 connector |
- |
Cable |
| Main/Expansion unit |
Main unit |
Expansion unit |
Main unit |
Expansion unit |
Main unit |
| I/O Control outputs |
2 output |
- |
1 output |
- |
- |
| External input |
1 input |
- |
- |
- |
- |
| Monitor output |
None |
- |
- |
- |
1 output |
| Response time |
80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA) *1 |
- |
| Output selection |
LIGHT-ON/DARK-ON (switch-selectable) |
- |
| Timer function |
Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer, Timer duration selectable: 1 ms to 9,999 ms, Maximum error against the setting value: ±10% max. |
- |
- |
| Control outputs |
NPN open collector 30 V, Residual voltage 1 V or less (Output current: 10 mA or less) / 2 V or less (Output current: 10 to 100 mA) (Stand-alone) 1 output max: 100 mA or less, 2 output total: 100 mA or less (Multiple connections) 1 output max: 20 mA or less |
- |
- |
| Monitor output |
– |
- |
- |
- |
1 to 5 V voltage output; load resistance 10 kΩ or more; repeat precision ±0.5% of F.S.; response time: 1 ms (HIGH SPEED, FINE, TURBO), 1.2 ms (SUPER), 1.8 ms (ULTRA), 4.2 ms (MEGA) |
| External input |
Input time 2 ms (ON)/20 ms (OFF) or more *2 |
- |
- |
| Multiple connections to expansion units |
Up to 17 units can be connected in total (two-output type is treated as two units) |
- |
- |
| Protection circuit |
Reverse polarity protection, Over-current protection, Surge absorber |
- |
- |
| Number of interference prevention units |
Connected to other than LV-S31: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER; 4 for ULTRA/MEGA, Connected to LV-S31: 2 for FINE; 4 for TURBO/SUPER/ULTRA/MEGA *3 |
- |
- |
| Case size |
H 32.6 mm × W 9.8 mm × L 78.7 mm |
- |
- |
| Rating / Power voltage |
24 VDC (operating voltage 10 to 30 VDC (with ripple)), Ripple (P-P) 10 % or less, Class 2 or LPS *4*5 |
- |
| Power consumption |
Normal: 830 mW or less (at 30 V. 30 mA at 24 V, 56 mA or less at 12 V) *6 Eco on mode: 710 mW or less (at 30 V. 26 mA at 24 V, 48 mA or less at 12 V) *6 Eco Full mode: 550 mW or less (at 30 V. 21 mA at 24 V, 40 mA or less at 12 V) *7 |
- |
- |
| Weight |
Approx. 75 g |
Approx. 65 g |
Approx. 20 g |
- |
Approx. 75 g |
- Response Time Modes: Six selectable modes from 80 µs (HIGH SPEED) to 16 ms (MEGA) for optimal balance between speed and stability.
- Output Flexibility: NPN open collector with 100 mA max per output; supports LIGHT-ON/DARK-ON selection for versatile sensing logic.
- Timer Functions: Configurable OFF-delay, ON-delay, or one-shot timers with adjustable duration from 1 ms to 9,999 ms.
- Interference Prevention: Up to 4 units can operate simultaneously without crosstalk in ULTRA/MEGA modes, ensuring reliable multi-sensor arrays.
- Environmental Resilience: Built-in surge absorber and over-current protection safeguard against electrical transients in industrial settings.
- Power Efficiency: Eco modes reduce consumption to 550 mW, ideal for battery-backed or energy-conscious installations.
