Keyence Network Communication Module NU-EP1

Series#: Keyence

Product Details

Keyence NU-EP1 Network Communication Unit: The core model for EtherNet/IP integration.
Supports IEEE 802.3 (10BASE-T) and IEEE 802.3u (100BASE-TX) for reliable industrial networking.
Power over Ethernet (PoE) compliant (Class 3), simplifying installation and reducing cabling.
Connects up to 16 sensor amplifiers via N-bus, with a total allowable current of 1,200 mA.
Robust cyclic and message communication (UCMM, Class 3) with up to 64 connections.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Keyence NU-EP1 is a high-performance communication unit engineered for seamless integration into EtherNet/IP networks. As part of the Keyence network communication series including NU-EC1, NU-DN1, NU-CL1, and NU-EN8N, the NU-EP1 excels in bridging sensor amplifiers to industrial Ethernet systems. It supports both 10BASE-T and 100BASE-TX standards, ensuring compatibility with legacy and modern infrastructure. With PoE (Power over Ethernet) Class 3 capability, it eliminates the need for separate power lines, while the N-bus interface allows direct connection of up to 16 sensor amplifiers. This unit is ideal for applications demanding high-speed cyclic communication, robust message handling, and reliable power distribution in harsh factory environments.

Parameter	Specification
Model	NU-EP1
Name	Communication unit supporting EtherNet/IP™
Compliant Standards	IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3af (Power over Ethernet, Class 3)
Transmission Rate	10 Mbps (10BASE-T), 100 Mbps (100BASE-TX)
Transmission Media	STP or Category 3 or higher UTP (10BASE-T)*1; STP or Category 5 or higher UTP (100BASE-TX)
Ethernet Maximum Cable Length	100 m (328.1′) between unit and Ethernet switch
Max. Number of Connection Stages	4 (10BASE-T), 2 (100BASE-TX)*2
Compliant Functions	Cyclic communication (implicit messages), message communication (explicit messages)
Number of Connections	64
RPI (Transmission Cycle)	0.5 to 10,000 ms (in units of 0.5 ms)
Tolerable Communication Bandwidth for Cyclic Communication	6,000 pps
Message Communication	Supports UCMM, Class 3
Conformance Test	Supports version A7
Connectable Sensors	Sensor amplifier that supports N-bus*3
Number of Connectable Units	16 maximum*4
Power Supply	Power is supplied by this unit through the sensor amplifier connection connector
Allowable Passing Current	Total: 1,200 mA or less*5
Power During PoE Power Receiving	Supply voltage: 24 V ±10%, supply current: 360 mA or less6 (UL Class 2)7
Indicator Lamp	Link/activity (LINK/ACT): green LED; module status (MS): 2-color (green and red) LED; network status (NS): 2-color (green and red) LED; sensor communication (N-bus): 2-color (green and red) LED
Power Voltage	24 VDC ±10%, ripple (P-P): 10% or less (when using power supply connector); 48 VDC (57 V max during PoE power receiving)
Power Consumption	1,500 mW or less (60 mA or less at 24 V)*8
Material	Main unit case and dust cover: polycarbonate; power supply connector: polyamide (plug), PBT (socket)
Accessories	Instruction manual, power supply connection connector, end unit x 2
Weight	Approx. 80 g (including connectors)

Protocol Support: Full EtherNet/IP compliance with cyclic (implicit) and message (explicit) communication, enabling real-time data exchange with PLCs and controllers.
Network Integration: Daisy-chain topology with up to 4 stages (10BASE-T) or 2 stages (100BASE-TX), simplifying wiring in space-constrained cabinets.
Sensor Interface: The N-bus connector supports up to 16 Keyence sensor amplifiers, with a total current limit of 1,200 mA for powering multiple devices.

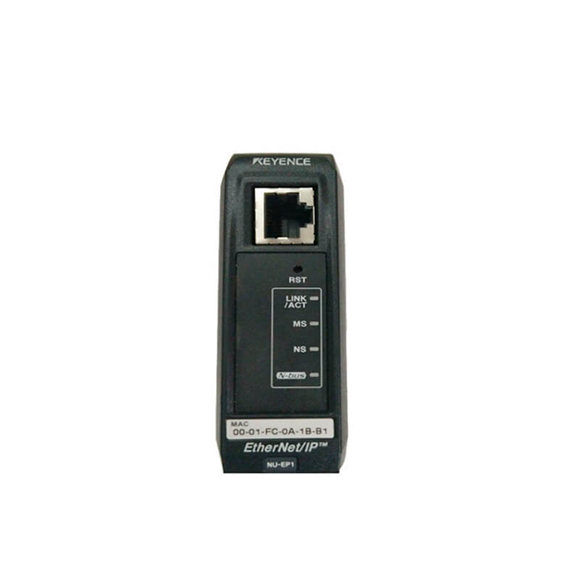

Diagnostic LEDs: Five status indicators (LINK/ACT, MS, NS, N-bus) provide instant visual feedback on network, module, and sensor communication health.
Environmental Resilience: Polycarbonate housing with dust cover ensures durability in industrial environments; lightweight design (80 g) facilitates DIN-rail mounting.
Power Flexibility: Dual power options—24 VDC via connector or PoE (IEEE 802.3af Class 3)—allow deployment in both powered and PoE-enabled networks.
