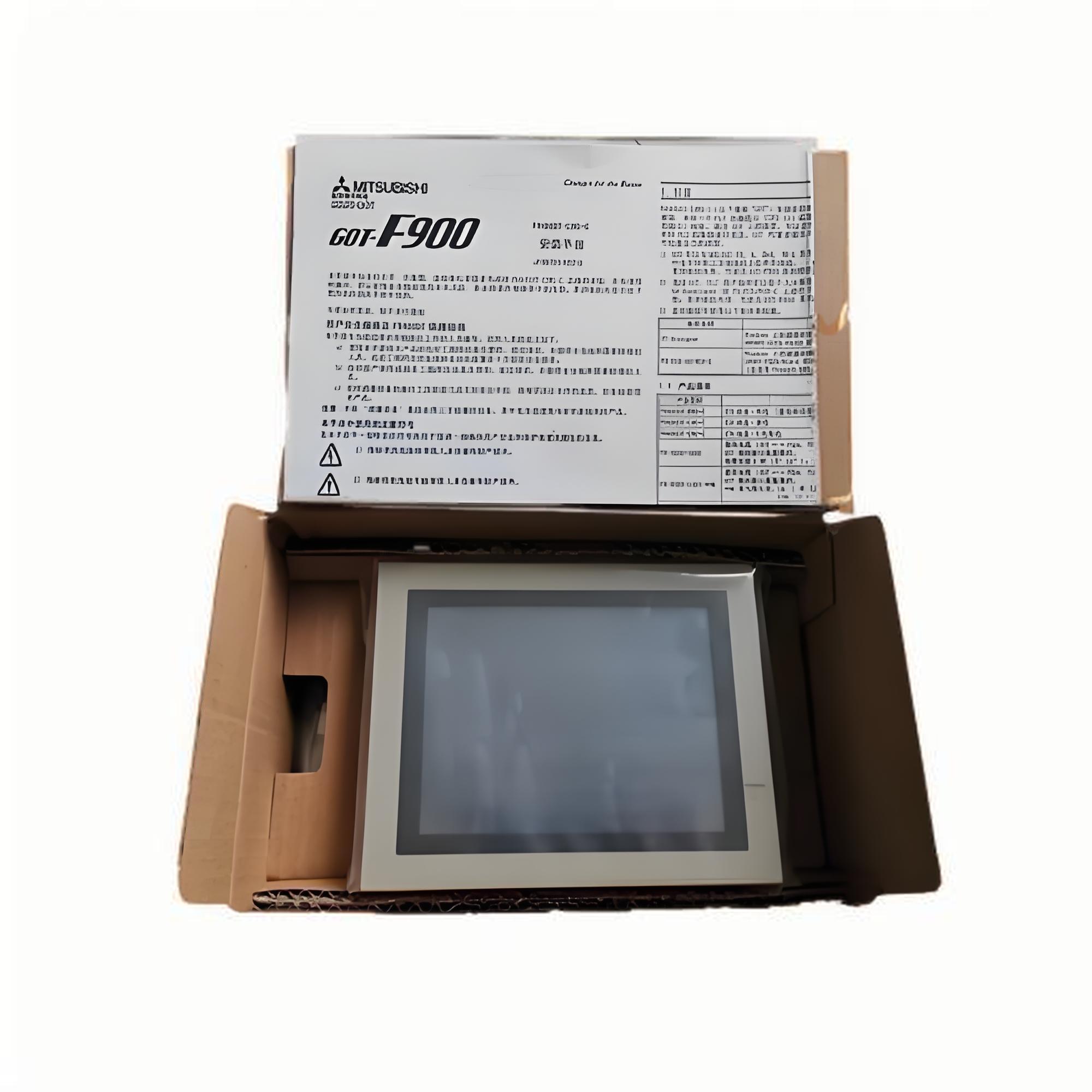

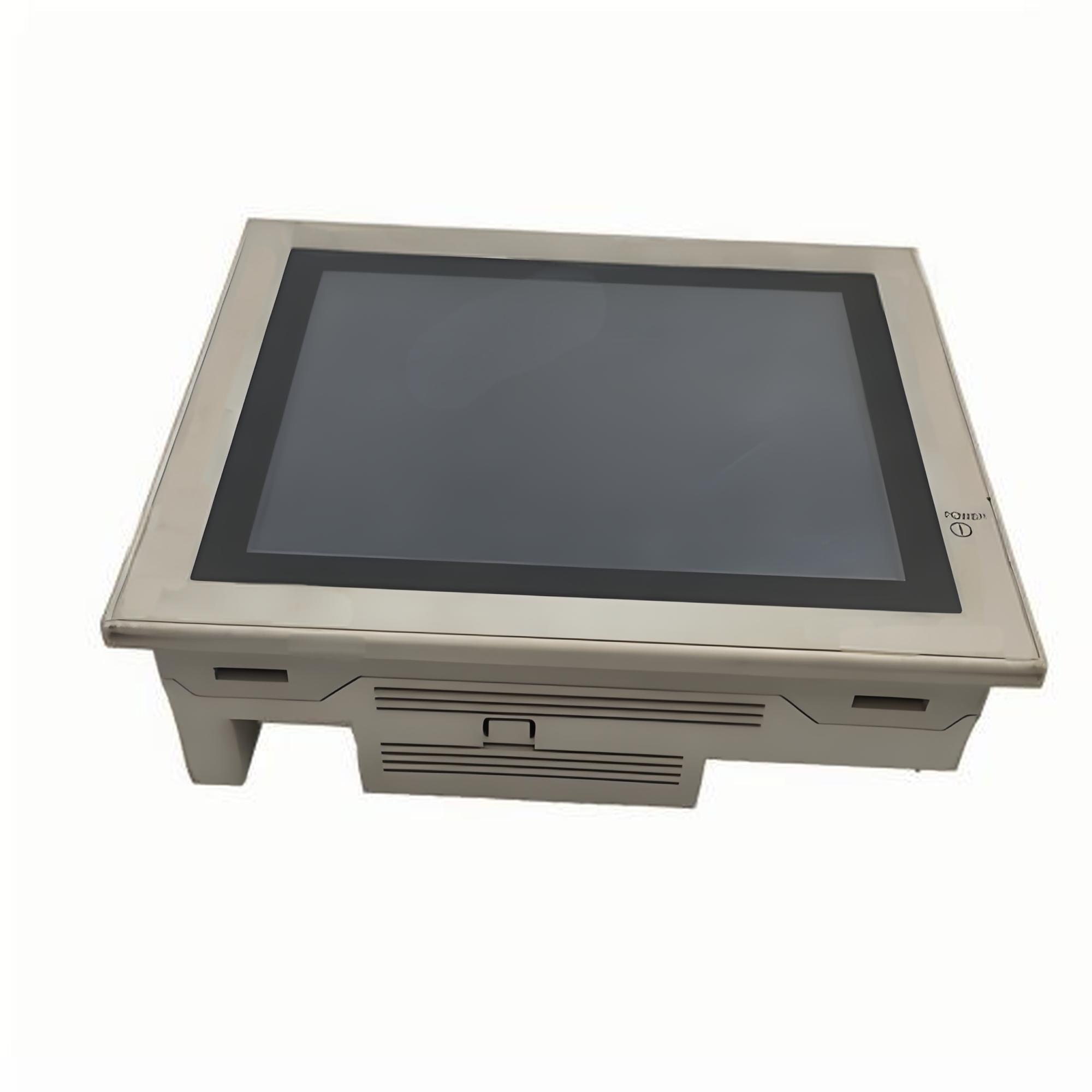

The Mitsubishi Electric F940GOT-LWD-C is a robust and cost-effective Graphic Operation Terminal from the renowned F940GOT series, engineered to provide intuitive touchscreen control and real-time data visualization for industrial automation systems. This 5.7-inch monochrome STN LCD unit delivers crisp white/blue graphics at 320x240 resolution, enabling efficient monitoring of PLC elements, alarm management, and multi-screen navigation. With its IP65F-rated front panel, the F940GOT-LWD-C withstands dust ingress and water splashes, making it a dependable choice for manufacturing lines, packaging machinery, and process control stations. Its 24V DC power supply (operating range +10%/-15%) ensures stable performance, while the built-in PM-20BL lithium battery maintains screen data integrity for approximately five years without external power. Communication is facilitated via standard RS-232C and RS-422 ports, allowing direct connection to Mitsubishi FX and A series PLCs, as well as inverters and other automation devices. The unit’s compact dimensions and low power draw (approximately 410mA with backlight off) make it easy to integrate into existing control cabinets. Whether used for machine diagnostics, production monitoring, or operator interface tasks, the F940GOT-LWD-C delivers proven reliability and long-term value for demanding industrial applications.
| Specification |
Details |
| Model |
F940GOT-LWD-C |
| Product Type |
Graphic Operation Terminal (GOT) |
| Display Type |
STN Monochrome LCD (White/Blue) |
| Resolution |
320 × 240 pixels |
| Display Size |
5.7 inches (diagonal) |
| Backlight |
LED (replaceable) |
| Power Supply |
24V DC (+10% / -15%) |
| Power Consumption |
Approx. 410 mA (backlight off) |
| Communication Ports |
RS-232C (1 port), RS-422 (1 port) |
| Compatible PLCs |
Mitsubishi FX Series, A Series |
| Battery Backup |
Built-in lithium battery (PM-20BL), approx. 5-year lifespan |
| Protection Rating |
IP65F (front panel) |
| Operating Temperature |
0°C to +50°C |
| Operating Humidity |
35% to 85% RH (non-condensing) |
| Storage Temperature |
-20°C to +60°C |
| Vibration Resistance |
5 to 9 Hz: 3.5 mm amplitude; 9 to 150 Hz: 9.8 m/s² |
| Shock Resistance |
147 m/s² (15 G) for 11 ms half-sine |
| Weight |
Approx. 0.8 kg (1.76 lbs) |
| Dimensions (W × H × D) |
172 mm × 120 mm × 56 mm (6.77 × 4.72 × 2.20 in) |
| Panel Cutout Dimensions |
160 mm × 104 mm (6.30 × 4.09 in) |
| Software Compatibility |
GT Designer (for screen creation) |
| Warranty |
Standard 12 months (extended options available) |
