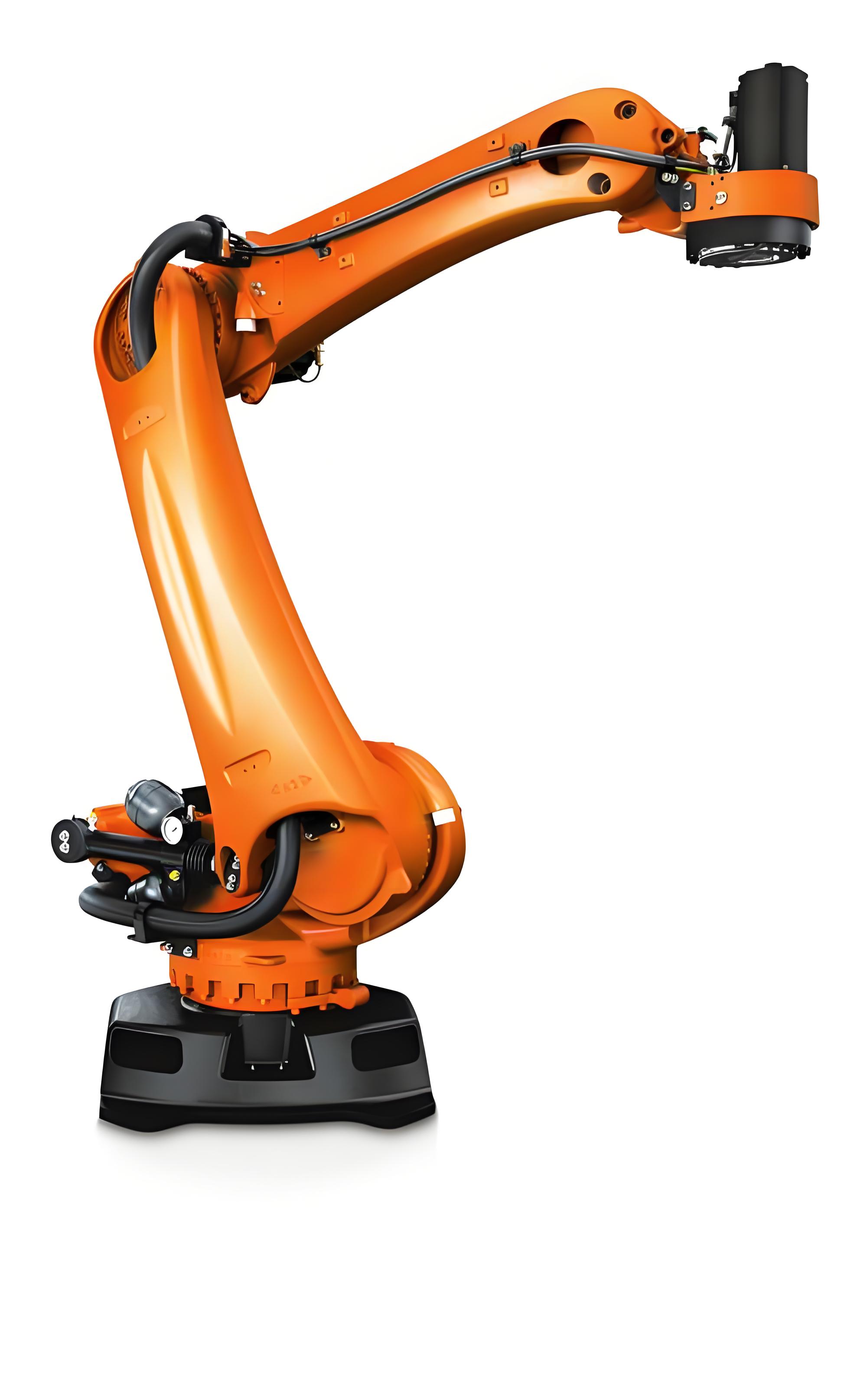

The KUKA KR120R3200 is a cornerstone of the QUANTEC PA series, engineered to deliver unmatched speed, accuracy, and durability in high-throughput palletizing, depalletizing, and material handling applications. With a 120 kg payload capacity and a 3,195 mm reach, this 5-axis robot excels in automating complex tasks such as packaging, picking, and operating plastic processing or metal die-casting equipment. Its advanced control system and integrated sensor suite enable autonomous path planning and obstacle avoidance, while the IP65-rated housing ensures reliable performance in dusty or wet environments. Whether deployed in automotive, electronics, or medical device manufacturing, the KR120R3200 provides a robust, maintenance-friendly solution that reduces downtime and boosts productivity.
| Specification |
Value |
| Model |
KR120R3200 |
| Series |
QUANTEC PA |
| Number of Axes |
5 |
| Payload Capacity (kg) |
120 |
| Maximum Reach (mm) |
3,195 |
| Repeatability (mm) – ISO 9283 |
±0.06 |
| Body Weight (kg) |
1,075 |
| Mounting Position |
Floor-mounted |
| Protection Class (IP Rating) |
IP65 |
| Hollow Shaft Diameter (mm) |
60 |
| Maximum Axis Speed (A1 – A5) (°/s) |
112 – 124 (varies by axis) |
| Axis Working Range (A1 – A5) (°) |
±185 / ±185 / ±185 / ±185 / ±360 |
| Control System |
KUKA KR C4 / KR C5 (compatible) |
| Sensor Integration |
Integrated obstacle avoidance and path planning |
| Material |
Aluminum alloy (lightweight, high-strength) |
| Applicable Standards |
ISO 9283, CE, RoHS |
| Typical Applications |
Palletizing, depalletizing, material handling, assembly, packaging, machine tending |
| Operating Temperature (°C) |
0 to +45 |
| Relative Humidity (non-condensing) |
Up to 95% |
| Noise Level (dB(A)) |
< 70 |
| Power Supply (kVA) |
7.5 (typical) |
| Warranty |
12 months (extended options available) |
